Back to Bike FinderYears: 2007

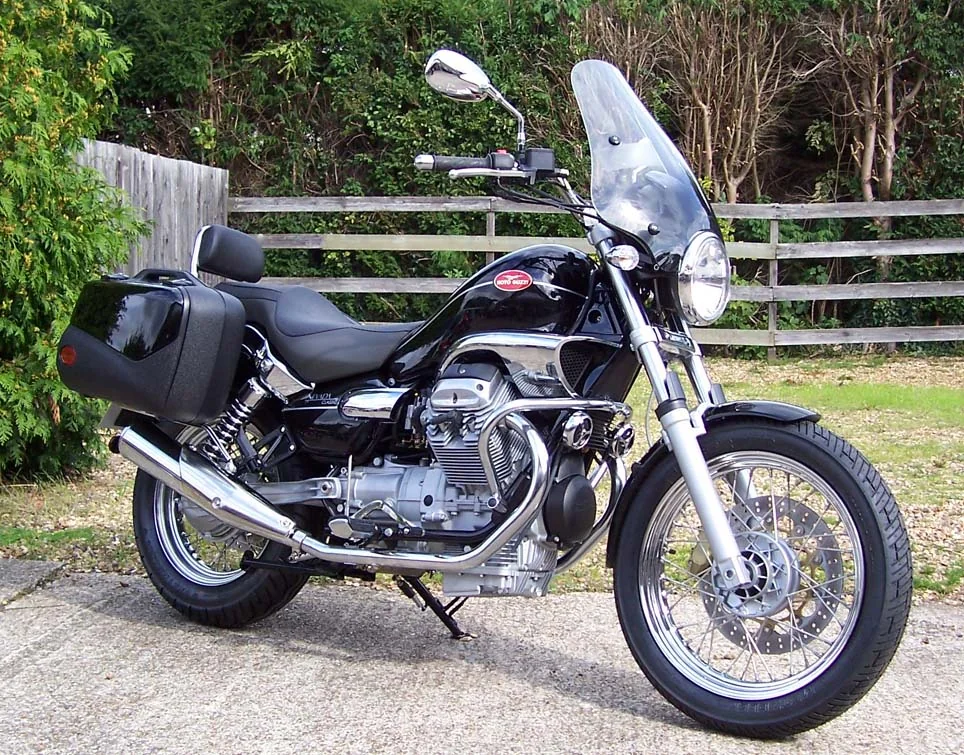

Moto Guzzi Nevada 750 Touring
2007Touring

Moto Guzzi Nevada 750 Touring

Key specifications

Engine
744 cc
Power
48 HP
Torque
55 Nm
Weight
196 kg
Fuel type
petrol
Fuel capacity
3.7 L
Transmission
5-speed
Seat height
30 mm
Front brakes
Single disc
Rear brakes
Single disc

Technical details

Source specification data

Make
Moto Guzzi
Model
Nevada 750 Touring
Category
Touring
Starter
Electric
Color Options
Beige
sabbia/
Grigio
platino,
Grigio
iron/nero
Power
48.28 HP (35.2 kW)) @ 6800 RPM
Clutch
Single disc, dry with cush drive
Torque
54.70 Nm (5.6 kgf-m or 40.3 ft.lbs) @ 3600 RPM
Gearbox
5-speed
Ignition
Magneti Marelli
electronic digital
Digiplex
25
Fuel System
Carburettor
. 2
Dell
´
H
30 carburettors, Ø 30 mm
Bore X Stroke
80.0 x 74.0 mm (3.1 x 2.9 inches)
Compression
9.6:1
Displacement
744.00 ccm (45.40 cubic inches)
Cooling System
Air
Engine Details
V2, four-stroke
Exhaust System
Steel with 2 polished steel mufflers
Lubrication System
Wet sump, forced oil, cartridge filter
Valves Per Cylinder
2
Dry Weight
196.0 kg (432.1 pounds)
Seat Height
762 mm (30.0 inches) If adjustable, lowest setting.
Fuel Capacity
14.00 litres (3.70 gallons)
Overall Width
874 mm (34.4 inches)
Overall Height
1,181 mm (46.5 inches)
Overall Length
2,210 mm (87.0 inches)
Ground Clearance
191 mm (7.5 inches)
Power Weight Ratio
0.2463 HP/kg
Rake
27.5°
Rear Tyre
130/90-V16
Frame Type
Detachable tubular duplex cradle in special high-strengh steel
Front Tyre
110/90-V18
Rear Brakes
Single disc
Front Brakes
Single disc
Rear Suspension
Swing arm in light cast alloy with two dampers, spring adjustable for pre-load and rebound
Front Suspension
Marzocchi 40 mm hydraulic
Rear Wheel Travel
130 mm (5.1 inches)
Front Wheel Travel
130 mm (5.1 inches)
Rear Brakes Diameter
260 mm (10.2 inches)
Front Brakes Diameter
320 mm (12.6 inches)

Available colors

Beige sabbia/Grigio platinoGrigio iron/nero
