Back to Bike FinderYears: 2015
2015Cruiser

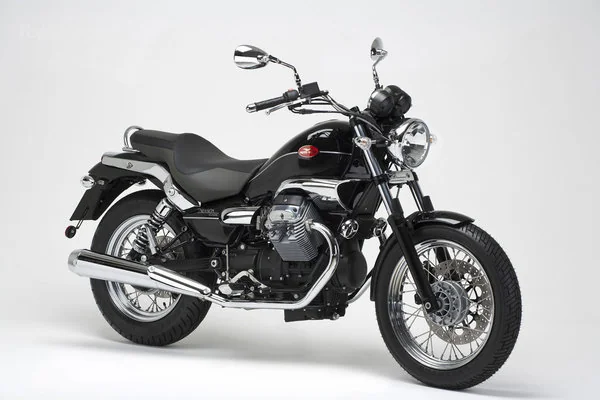

Moto Guzzi Nevada
Key specifications
Engine
744 cc
Power
48 HP
Torque
55 Nm
Fuel type
petrol
Fuel capacity
3.7 L
Transmission
5-speed
Seat height
30 mm
Front brakes
Single disc. 4-piston calliper
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Moto Guzzi
- Model
- Nevada
- Category
- Custom-cruiser
- Starter
- Electric
- Color Options
- Black, Green
- Power
- 47.60 HP (34.7 kW)) @ 6800 RPM
- Clutch
- Single disc, dry, with cush drive
- Torque
- 54.70 Nm (5.6 kgf-m or 40.3 ft.lbs) @ 3600 RPM
- Gearbox
- 5-speed
- Engine Type
- 90° V-Twin. Light alloy push-rod.
- Fuel System
- Injection
- Displacement
- 744.00 ccm (45.40 cubic inches)
- Cooling System
- Air
- Engine Details
- V2, four-stroke
- Emission Details
- three-way catalyzer with Lambda sensor
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Shaft drive (cardan)
- Seat Height
- 752 mm (29.6 inches) If adjustable, lowest setting.
- Fuel Capacity
- 14.00 litres (3.70 gallons)
- Overall Length
- 2,166 mm (85.3 inches)
- Ground Clearance
- 290 mm (11.4 inches)
- Weight Incl Oil Gas Etc
- 196.0 kg (432.1 pounds)
- Rake
- 27.5°
- Trail
- 138 mm (5.4 inches)
- Rear Tyre
- 130/90-16
- Frame Type
- Detachable tubular duplex cradle in special high-strengh steel
- Front Tyre
- 100/90-18
- Rear Brakes
- Single disc
- Front Brakes
- Single disc. 4-piston calliper
- Rear Suspension
- Pressure fused oscillating swing arm in light alloy with two preload adjustable shocks
- Front Suspension
- Hydraulic telescopic fork
- Rear Wheel Travel
- 130 mm (5.1 inches)
- Front Wheel Travel
- 130 mm (5.1 inches)
- Rear Brakes Diameter
- 260 mm (10.2 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
BlackGreen
