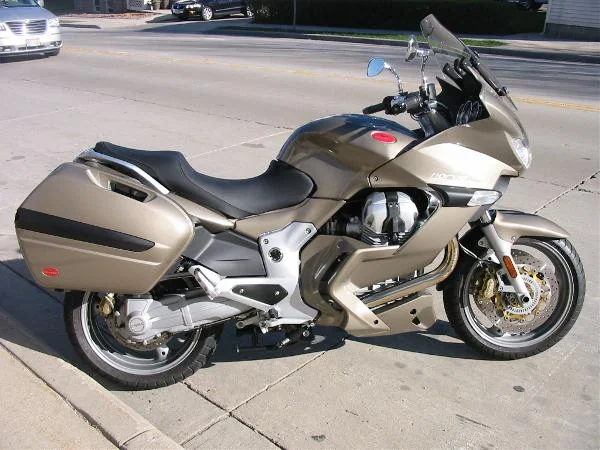

Moto Guzzi Norge 1200 GTL

Key specifications

Engine

1151 cc

Power

89 HP

Torque

100 Nm

Weight

247 kg

Fuel type

petrol

Fuel capacity

6.1 L

Transmission

6-speed

Seat height

32 mm

Front brakes

Double disc. ABS

Rear brakes

Single disc. ABS

Technical details

Source specification data

Make: Moto Guzzi
Model: Norge 1200 GTL
Category: Touring

Starter: Electric
Color Options: Grey

Power

88.50 HP (64.6 kW)) @ 7500 RPM

Torque

100.00 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 5800 RPM

Gearbox

6-speed

Fuel System

Injection: .
Weber: -
Marelli: electronic fuel injection with stepper motor control

Bore X Stroke

95.0 x 81.2 mm (3.7 x 3.2 inches)

Compression

9.8:1

Displacement

1151.00 ccm (70.23 cubic inches)

Cooling System

Air

Engine Details

V2, four-stroke

Exhaust System

Stainless: steel, 2 into 1 type with catalytic converter, height-adjustable muffler.
Euro: 3.

Valves Per Cylinder

Transmission Type Final Drive

Shaft drive (cardan)

Dry Weight: 247.0 kg (544.5 pounds)
Seat Height: 800 mm (31.5 inches) If adjustable, lowest setting.
Fuel Capacity: 23.00 litres (6.08 gallons)
Overall Width: 870 mm (34.3 inches)
Overall Height: 1,125 mm (44.3 inches)
Overall Length: 2,195 mm (86.4 inches)
Ground Clearance: 185 mm (7.3 inches)
Power Weight Ratio: 0.3583 HP/kg
Reserve Fuel Capacity: 4.00 litres (1.06 gallons)

Rake: 25.0°
Trail: 120 mm (4.7 inches)
Rear Tyre: 180/55-ZR17
Frame Type: Tubular cradle, high tensile steel
Front Tyre: 120/70-ZR17
Rear Brakes: Single disc. ABS
Front Brakes: Double disc. ABS
Rear Suspension: Single arm suspension with progressive linkage, rear shock absorber adjustable in rebound and pre-load (hydraulic)
Front Suspension: Telescopic hydraulic fork with Ø 45 mm, preload adjustable
Rear Wheel Travel: 140 mm (5.5 inches)
Front Wheel Travel: 120 mm (4.7 inches)
Rear Brakes Diameter: 282 mm (11.1 inches)
Front Brakes Diameter: 320 mm (12.6 inches)

Available colors

Grey
