Back to Bike FinderYears: 2009
2009Off-road

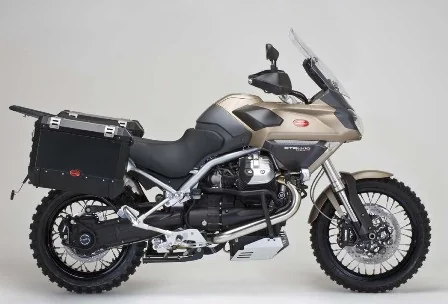

Moto Guzzi Stelvio 1200 4V
Key specifications
Engine
1151 cc
Power
108 HP
Torque
108 Nm
Weight
214 kg
Fuel type
petrol
Fuel capacity
4.8 L
Transmission
6-speed
Seat height
33 mm
Front brakes
Double disc. Stainless steel wave discs, radial calipers with 4 opposed pistons.
Rear brakes
Single disc. Single fixed stainless steel disc, floating caliper with 2 parallel pistons.
Technical details
Source specification data
- Make
- Moto Guzzi
- Model
- Stelvio 1200 4V
- Category
- Enduro-offroad
- Starter
- Electric
- Color Options
- Silver, red/silver
- Power
- 108.35 HP (79.1 kW)) @ 7500 RPM
- Clutch
- Single plate with integrated flexible couplings
- Torque
- 108.00 Nm (11.0 kgf-m or 79.7 ft.lbs) @ 6400 RPM
- Gearbox
- 6-speed
- Fuel System
- Injection
- .
- Multipoint
- sequential electronic injection,
- Bore X Stroke
- 95.0 x 81.2 mm (3.7 x 3.2 inches)
- Compression
- 11.0:1
- Displacement
- 1151.00 ccm (70.23 cubic inches)
- Engine Details
- V2, four-stroke
- Exhaust System
- Stainless
- steel two-into-one 3-way catalysed with
- Lambda
- probe.
- Euro
- 3.
- Dry Weight
- 214.0 kg (471.8 pounds)
- Seat Height
- 840 mm (33.1 inches) If adjustable, lowest setting.
- Fuel Capacity
- 18.00 litres (4.76 gallons)
- Overall Width
- 1,025 mm (40.4 inches)
- Overall Height
- 1,475 mm (58.1 inches)
- Overall Length
- 2,250 mm (88.6 inches)
- Ground Clearance
- 210 mm (8.3 inches)
- Power Weight Ratio
- 0.5063 HP/kg
- Reserve Fuel Capacity
- 3.30 litres (0.87 gallons)
- Rake
- 27.0°
- Trail
- 125 mm (4.9 inches)
- Rear Tyre
- 180/55-R17
- Frame Type
- High tensile steel tubular twin cradle
- Front Tyre
- 110/90-R19
- Rear Brakes
- Single
- disc.
- Single
- fixed stainless steel disc, floating caliper with 2 parallel pistons.
- Front Brakes
- Double
- disc.
- Stainless
- steel wave discs, radial calipers with 4 opposed pistons.
- Rear Suspension
- Progressive single swingarm, fully adjustable monoshock with separate gas reservoir (spring preload and hydraulic for rebound and compression).
- Front Suspension
- Upside down Ø 50 mm fully adjustable forks (spring preload and hydraulic for rebound and compression) with mounting for radial calipers.
- Rear Wheel Travel
- 155 mm (6.1 inches)
- Front Wheel Travel
- 170 mm (6.7 inches)
- Rear Brakes Diameter
- 282 mm (11.1 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Silverred/silver
