2012Super Moto

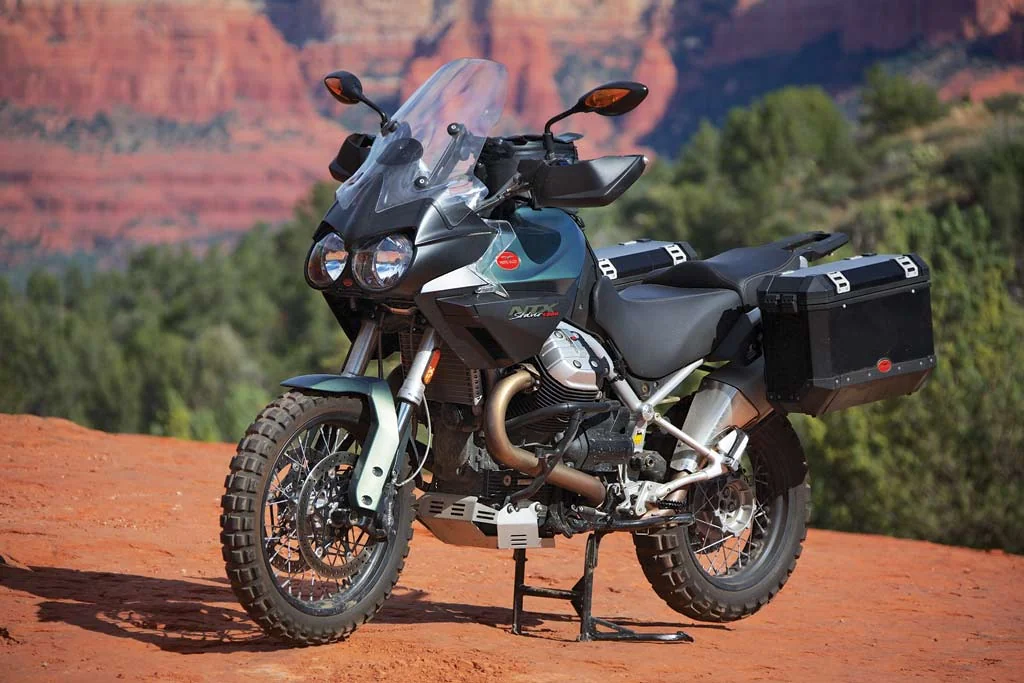

Moto Guzzi Stelvio 1200 NTX
Key specifications
Engine
1151 cc
Power
105 HP
Torque
113 Nm
Fuel type
petrol
Fuel capacity
8.5 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc. ABS. Stainless steel wave discs, radial calipers with 4 opposed pistons.
Rear brakes
Single disc. ABS. Single fixed stainless steel disc, floating caliper with 2 parallel pistons.
Technical details
Source specification data
- Make
- Moto Guzzi
- Model
- Stelvio 1200 NTX
- Category
- Enduro-offroad
- Starter
- Electric
- Comments
- ATC traction control.
- Color Options
- Black
- Power
- 105.00 HP (76.6 kW)) @ 7500 RPM
- Clutch
- Single-disc with integrated anti-vibration buffer
- Torque
- 113.00 Nm (11.5 kgf-m or 83.3 ft.lbs) @ 5800 RPM
- Gearbox
- 6-speed
- Engine Type
- 90° V-twin
- Fuel System
- Injection
- .
- Multipoint
- sequential electronic injection,
- A
- phased, alfa-n system; two Ø 50mm throttle bodies,
- P
- 189 injectors, lambda probe.
- Displacement
- 1151.00 ccm (70.23 cubic inches)
- Cooling System
- Oil & air
- Engine Details
- V2, four-stroke
- Exhaust System
- Stainless
- steel two-into-one 3-way catalysed with
- Lambda
- probe.
- Euro
- 3.
- Valves Per Cylinder
- 4
- Seat Height
- 820 mm (32.3 inches) If adjustable, lowest setting.
- Fuel Capacity
- 32.00 litres (8.45 gallons)
- Overall Width
- 1,050 mm (41.3 inches)
- Overall Height
- 1,480 mm (58.3 inches)
- Overall Length
- 2,250 mm (88.6 inches)
- Ground Clearance
- 210 mm (8.3 inches)
- Alternate Seat Height
- 840 mm (33.1 inches) If adjustable, highest setting.
- Reserve Fuel Capacity
- 7.00 litres (1.85 gallons)
- Weight Incl Oil Gas Etc
- 272.0 kg (599.7 pounds)
- Rake
- 27.0°
- Trail
- 125 mm (4.9 inches)
- Rear Tyre
- 150/70-R17
- Frame Type
- High tensile steel tubular twin cradle
- Front Tyre
- 110/80-R19
- Rear Brakes
- Single
- disc.
- S
- .
- Single
- fixed stainless steel disc, floating caliper with 2 parallel pistons.
- Front Brakes
- Double
- disc.
- S
- .
- Stainless
- steel wave discs, radial calipers with 4 opposed pistons.
- Rear Suspension
- Single arm with progressive linkage, monoshock with adjustable hydraulic rebound damping and spring preload adjuster knob.
- Front Suspension
- Completely adjustable fork (spring preload and hydraulic compression and rebound damping) with 45 mm diam. upside down stanchions and caliper mounting for radial brake calipers.
- Rear Wheel Travel
- 155 mm (6.1 inches)
- Front Wheel Travel
- 170 mm (6.7 inches)
- Rear Brakes Diameter
- 282 mm (11.1 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Black
