Back to Bike FinderYears: 2010
2010Off-road

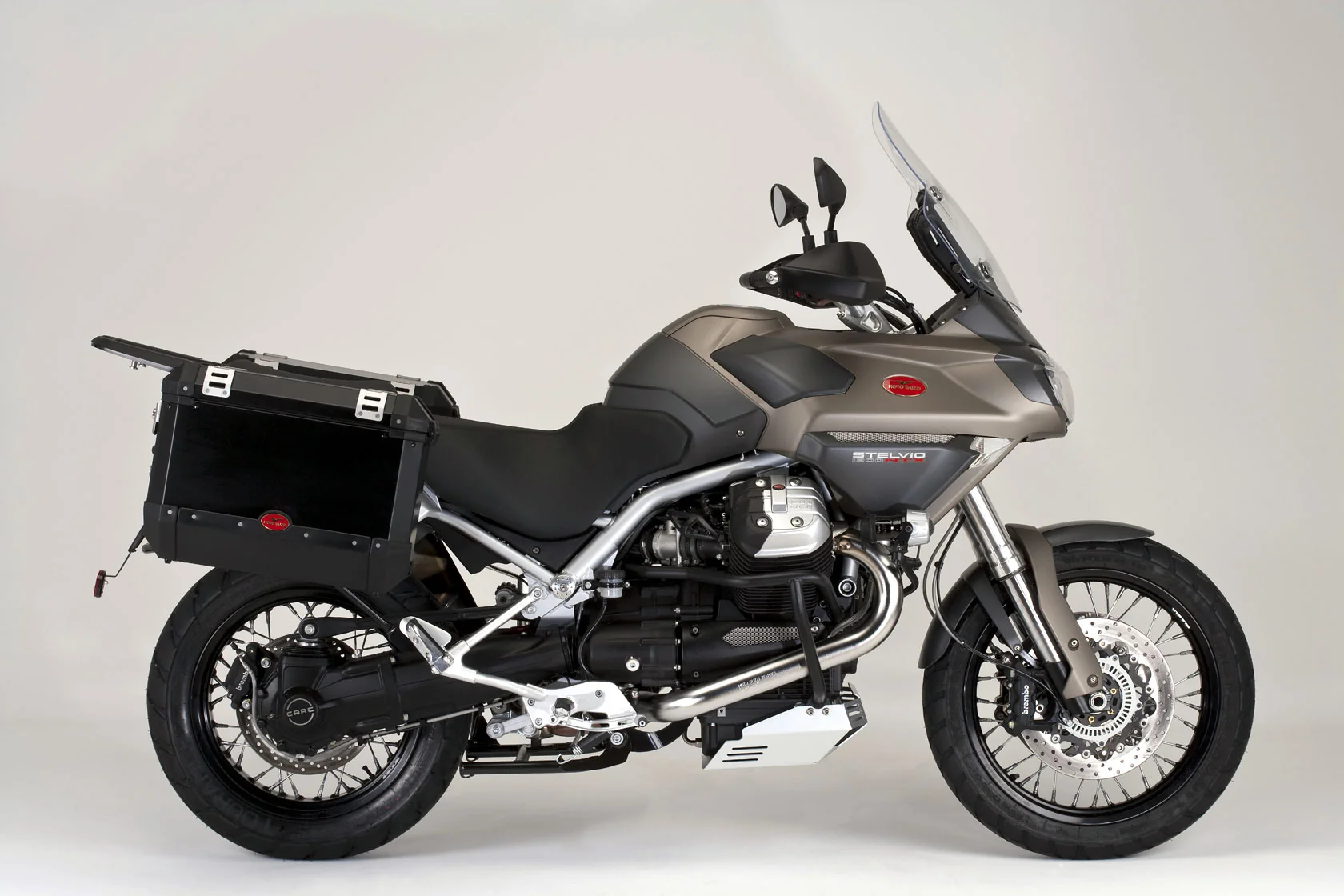

Moto Guzzi Stelvio 1200cc NTX 4V
Key specifications
Engine
1151 cc
Power
103 HP
Torque
113 Nm
Weight
214 kg
Fuel type
petrol
Fuel capacity
4.8 L
Transmission
6-speed
Seat height
33 mm
Front brakes
Double disc. ABS. Stainless steel wave discs, radial calipers with 4 opposed pistons.
Rear brakes
Single disc. ABS. Single fixed stainless steel disc, floating caliper with 2 parallel pistons.
Technical details
Source specification data
- Make
- Moto Guzzi
- Model
- Stelvio 1200cc NTX 4V
- Category
- Enduro-offroad
- Comments
- Also called Stelvio 1200 TT ABS.
- Color Options
- Silver
- Power
- 103.26 HP (75.4 kW)) @ 7500 RPM
- Clutch
- Single-disc with integrated anti-vibration buffer
- Torque
- 113.00 Nm (11.5 kgf-m or 83.3 ft.lbs) @ 5800 RPM
- Gearbox
- 6-speed
- Fuel System
- Injection
- .
- Multipoint
- sequential electronic injection,
- A
- phased, alfa-n system; two Ø 50mm throttle bodies,
- P
- 189 injectors, lambda probe.
- Bore X Stroke
- 95.0 x 81.2 mm (3.7 x 3.2 inches)
- Compression
- 11.0:1
- Displacement
- 1151.00 ccm (70.23 cubic inches)
- Cooling System
- Oil & air
- Engine Details
- V2, four-stroke
- Exhaust System
- Stainless
- steel two-into-one 3-way catalysed with
- Lambda
- probe.
- Euro
- 3.
- Valves Per Cylinder
- 4
- Dry Weight
- 214.0 kg (471.8 pounds)
- Seat Height
- 840 mm (33.1 inches) If adjustable, lowest setting.
- Fuel Capacity
- 18.00 litres (4.76 gallons)
- Overall Height
- 1,475 mm (58.1 inches)
- Overall Length
- 2,250 mm (88.6 inches)
- Ground Clearance
- 210 mm (8.3 inches)
- Power Weight Ratio
- 0.4825 HP/kg
- Reserve Fuel Capacity
- 3.30 litres (0.87 gallons)
- Weight Incl Oil Gas Etc
- 251.0 kg (553.4 pounds)
- Rake
- 27.0°
- Trail
- 125 mm (4.9 inches)
- Rear Tyre
- 180/55-R17
- Frame Type
- High tensile steel tubular twin cradle
- Front Tyre
- 110/90-R19
- Rear Brakes
- Single
- disc.
- S
- .
- Single
- fixed stainless steel disc, floating caliper with 2 parallel pistons.
- Front Brakes
- Double
- disc.
- S
- .
- Stainless
- steel wave discs, radial calipers with 4 opposed pistons.
- Rear Suspension
- Single arm with rising-rate leverage, single shock absorber with hydraulic rebound damping adjustment and knob spring preloading set screw.
- Front Suspension
- Upside down Ø 50 mm fully adjustable forks (spring preload and hydraulic for rebound and compression) with mounting for radial calipers.
- Rear Wheel Travel
- 155 mm (6.1 inches)
- Front Wheel Travel
- 170 mm (6.7 inches)
- Rear Brakes Diameter
- 282 mm (11.1 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Silver
