Back to Bike FinderYears: 2012
2012Off-road

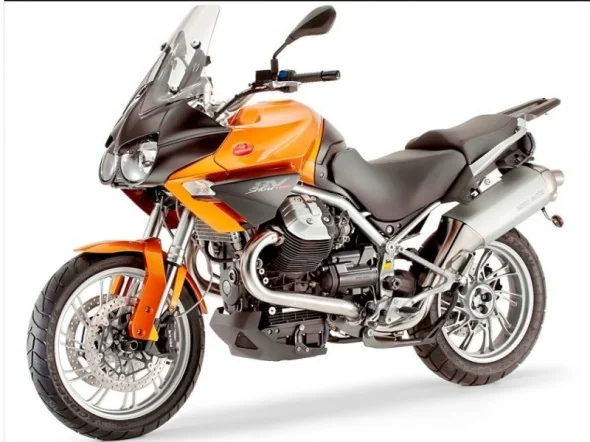

Moto Guzzi Stelvio 4V
$14,990
Key specifications
Engine
1151 cc
Power
103 HP
Torque
108 Nm
Fuel type
petrol
Fuel capacity
4.8 L
Transmission
6-speed
Seat height
33 mm
Front brakes
Double disc. Stainless steel wave discs, radial calipers with 4 opposed pistons.
Rear brakes
Single disc. Single fixed stainless steel disc, floating caliper with 2 parallel pistons.
Technical details
Source specification data
- Make
- Moto Guzzi
- Model
- Stelvio 4V
- Price
- S
- $ 14990.
- Prices
- depend on country, taxes, accessories, etc.
- Category
- Enduro-offroad
- Starter
- Electric
- Comments
- Windshield
- Electrical
- 12 V 18 Ah battery
- Color Options
- Guzzi Black
- Power
- 103.26 HP (75.4 kW)) @ 7500 RPM
- Clutch
- Single-disc with integrated anti-vibration buffer
- Torque
- 108.00 Nm (11.0 kgf-m or 79.7 ft.lbs) @ 6400 RPM
- Gearbox
- 6-speed
- Ignition
- Multipoint sequential electronic ignition, Magneti Marelli
- Driveline
- Compact
- reactive cardan shaft drive system called
- A
- .
- R
- .
- C
- .; double joint and floating bevel gear pair, ratio 12/44 = 1 : 3.666
- Engine Type
- 90° V-twin.
- Fuel System
- Injection
- Bore X Stroke
- 95.0 x 81.2 mm (3.7 x 3.2 inches)
- Compression
- 11.0:1
- Displacement
- 1151.00 ccm (70.23 cubic inches)
- Cooling System
- Oil & air
- Engine Details
- V2, four-stroke
- Exhaust System
- Stainless steel two-into-one
- Emission Details
- Lambda
- probe.
- Euro
- 3.
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Shaft drive (cardan)
- Seat Height
- 840 mm (33.1 inches) If adjustable, lowest setting.
- Fuel Capacity
- 18.00 litres (4.76 gallons)
- Overall Width
- 1,025 mm (40.4 inches)
- Overall Height
- 1,475 mm (58.1 inches)
- Overall Length
- 2,250 mm (88.6 inches)
- Ground Clearance
- 210 mm (8.3 inches)
- Reserve Fuel Capacity
- 4.50 litres (1.19 gallons)
- Weight Incl Oil Gas Etc
- 251.0 kg (553.4 pounds)
- Rake
- 27.0°
- Trail
- 125 mm (4.9 inches)
- Wheels
- Tubeless with spokes
- Rear Tyre
- 180/55-R17
- Frame Type
- Tubular in high-strength steel with integrated engine
- Front Tyre
- 110/80-R19
- Rear Brakes
- Single
- disc.
- Single
- fixed stainless steel disc, floating caliper with 2 parallel pistons.
- Front Brakes
- Double
- disc.
- Stainless
- steel wave discs, radial calipers with 4 opposed pistons.
- Rear Suspension
- Progressive single swingarm, fully adjustable monoshock with separate gas reservoir (spring preload and hydraulic for rebound and compression).
- Front Suspension
- Fork with Ø 50mm inverted stems, fully adjustable (spring preload and hydraulic compression and rebound damping)
- Rear Wheel Travel
- 155 mm (6.1 inches)
- Front Wheel Travel
- 170 mm (6.7 inches)
- Rear Brakes Diameter
- 282 mm (11.1 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Guzzi Black
