Back to Bike FinderYears: 2025 · 2023
2023Sportbike

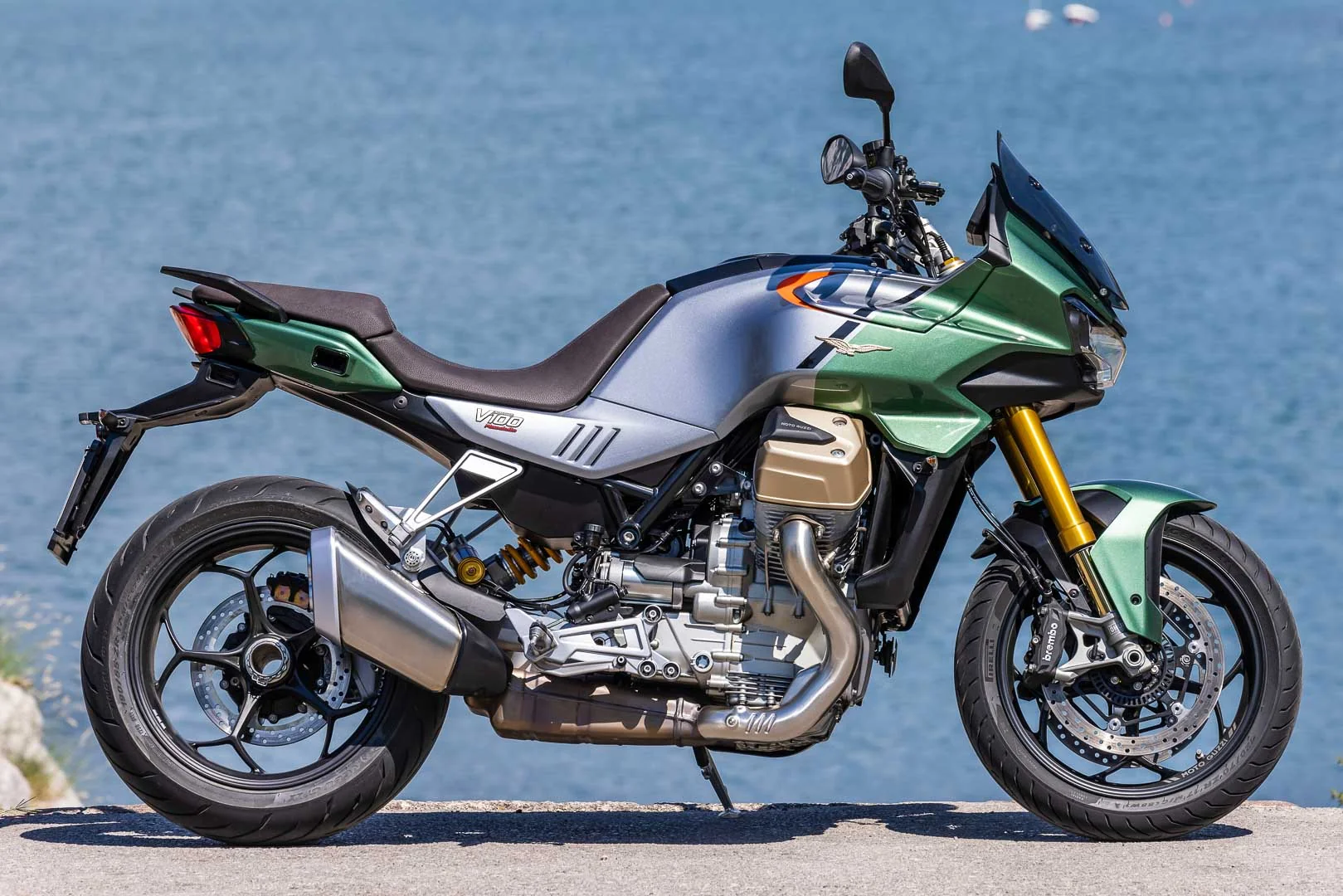

Moto Guzzi V100 Mandello S
Key specifications
Engine
1042 cc
Power
115 HP
Torque
105 Nm
Fuel type
petrol
Fuel capacity
4.5 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc. ABS. 4-piston Brembo monobloc radial calipers.
Rear brakes
Single disc. ABS. c, 2-piston Brembo caliper.
Technical details
Source specification data
- Make
- Moto Guzzi
- Model
- V100 Mandello S
- Category
- Sport
- Light
- LED lights
- Starter
- Electric
- Comments
- Ride
- by
- Wire
- , 5
- Riding Mode
- .
- Traction
- control.
- Cruise Control
- .
- Windshield
- .
- Heated
- grips.
- Instruments
- 5-inch colour TFT instrument panel
- Color Options
- Verde 2121, Grigio Avanguardia
- Power
- 115.0 HP (83.9 kW)) @ 8700 RPM
- Clutch
- Oil lubricated clutch, hydraulically operated
- Torque
- 105.0 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 6750 RPM
- Gearbox
- 6-speed
- Engine Type
- V2, four-stroke
- Fuel System
- Injection
- Bore X Stroke
- 96.0 x 72.0 mm (3.8 x 2.8 inches)
- Displacement
- 1042.0 ccm (63.58 cubic inches)
- Cooling System
- Liquid
- Emission Details
- Euro 5
- Fuel Consumption
- 4.70 litres/100 km (21.3 km/l or 50.05 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Shaft drive (cardan) (final drive)
- Seat Height
- 815 mm (32.1 inches) If adjustable, lowest setting.
- Fuel Capacity
- 17.00 litres (4.49 US gallons)
- Reserve Fuel Capacity
- 3.50 litres (0.92 US gallons)
- Weight Incl Oil Gas Etc
- 233.0 kg (513.7 pounds)
- Wheels
- Cast aluminium wheels
- Rear Tyre
- 190/70-17
- Front Tyre
- 110/80-17
- Rear Brakes
- Single
- disc.
- S
- . c, 2-piston
- Brembo
- caliper.
- Front Brakes
- Double
- disc.
- S
- . 4-piston
- Brembo
- monobloc radial calipers.
- Rear Suspension
- Fully
- adjustable Öhlins
- C2
- .0 monoshock with semi-active compression and rebound damping, remote preload adjustment
- Front Suspension
- Fully
- adjustable Ø43 mm
- D
- Öhlins
- C2
- .0 fork, with semi-active compression and rebound damping.
- Rear Brakes Diameter
- 260 mm (10.2 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Verde 2121Grigio Avanguardia
