1968Naked

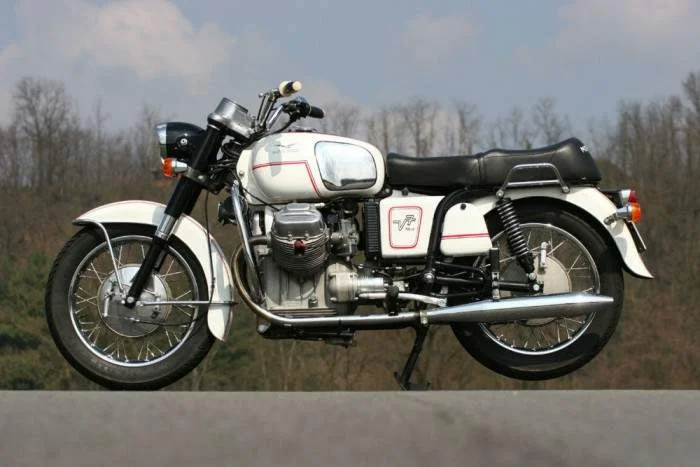

Moto Guzzi V7 700
Key specifications
Engine
700 cc
Power
50 HP
Fuel type
petrol
Fuel capacity
5.3 L
Seat height
31 mm
Front brakes
Expanding brake (drum brake). Duplex
Rear brakes
Expanding brake (drum brake). Simplex
Technical details
Source specification data
- Make
- Moto Guzzi
- Model
- V7 700
- Category
- Naked bike
- Power
- 50.00 HP (36.5 kW)) @ 6000 RPM
- Clutch
- Dry multiplate
- Top Speed
- 164.0 km/h (101.9 mph)
- Fuel System
- Carburettor. DellÓrto
- Bore X Stroke
- 80.0 x 70.0 mm (3.1 x 2.8 inches)
- Compression
- 9.0:1
- Displacement
- 700.00 ccm (42.71 cubic inches)
- Cooling System
- Air
- Engine Details
- V2, four-stroke
- Transmission Type Final Drive
- Shaft drive (cardan)
- Seat Height
- 790 mm (31.1 inches) If adjustable, lowest setting.
- Fuel Capacity
- 20.00 litres (5.28 gallons)
- Overall Width
- 795 mm (31.3 inches)
- Overall Height
- 1,050 mm (41.3 inches)
- Overall Length
- 2,245 mm (88.4 inches)
- Seat
- Dual
- Rear Tyre
- 4-18
- Front Tyre
- 4-18
- Rear Brakes
- Expanding brake (drum brake). Simplex
- Front Brakes
- Expanding brake (drum brake). Duplex
- Front Suspension
- Telescopic
- Rear Brakes Diameter
- 200 mm (7.9 inches)
- Front Brakes Diameter
- 200 mm (7.9 inches)
