2010Classic

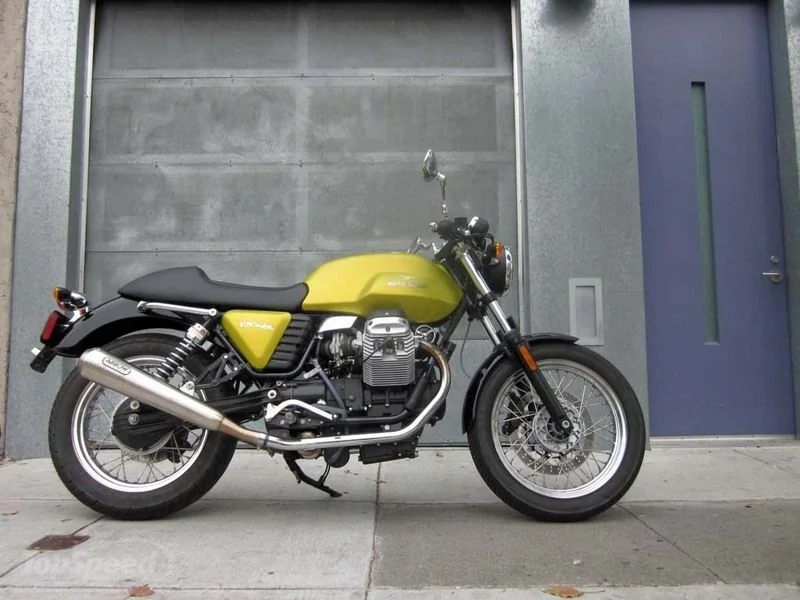

Moto Guzzi V7 Cafe Classic
Key specifications
Engine
744 cc
Torque
55 Nm
Weight
182 kg
Fuel type
petrol
Fuel capacity
4.5 L
Transmission
5-speed
Seat height
32 mm
Front brakes
Single disc. Bremo stainless steel disc 4 opposed calipers of differing diameters
Rear brakes
Single disc. bremo
Technical details
Source specification data
- Make
- Moto Guzzi
- Model
- V7 Cafe Classic
- Category
- Classic
- Starter
- Electric
- Color Options
- Green, gray
- Clutch
- Dry single plate with flexible couplings
- Torque
- 54.70 Nm (5.6 kgf-m or 40.3 ft.lbs) @ 3600 RPM
- Gearbox
- 5-speed
- Fuel System
- Injection. Weber-Marelli
- Bore X Stroke
- 80.0 x 74.0 mm (3.1 x 2.9 inches)
- Compression
- 9.6:1
- Displacement
- 744.00 ccm (45.40 cubic inches)
- Cooling System
- Air
- Engine Details
- V2, four-stroke
- Exhaust System
- Twin
- raised silencers.
- Three
- -way catalyzer with lambda probe.
- Lubrication System
- By lobes with pressure pump
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Shaft drive (cardan)
- Dry Weight
- 182.0 kg (401.2 pounds)
- Seat Height
- 805 mm (31.7 inches) If adjustable, lowest setting.
- Fuel Capacity
- 17.00 litres (4.49 gallons)
- Overall Width
- 800 mm (31.5 inches)
- Overall Height
- 1,115 mm (43.9 inches)
- Overall Length
- 2,185 mm (86.0 inches)
- Ground Clearance
- 182 mm (7.2 inches)
- Reserve Fuel Capacity
- 2.50 litres (0.66 gallons)
- Weight Incl Oil Gas Etc
- 198.0 kg (436.5 pounds)
- Rake
- 27.5°
- Trail
- 109 mm (4.3 inches)
- Rear Tyre
- 130/80-17
- Frame Type
- ALS steel tubular dismountable twin cradle
- Front Tyre
- 110/90-18
- Rear Brakes
- Single disc. bremo
- Front Brakes
- Single
- disc.
- Bremo
- stainless steel disc 4 opposed calipers of differing diameters
- Rear Suspension
- Oscillating light alloy swingarm with 2 pre-load adjustable shock absorbers.
- Front Suspension
- Marzocchi forks
- Rear Wheel Travel
- 118 mm (4.6 inches)
- Front Wheel Travel
- 130 mm (5.1 inches)
- Rear Brakes Diameter
- 260 mm (10.2 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Greengray
