Back to Bike FinderYears: 2018 · 2017
2017Classic

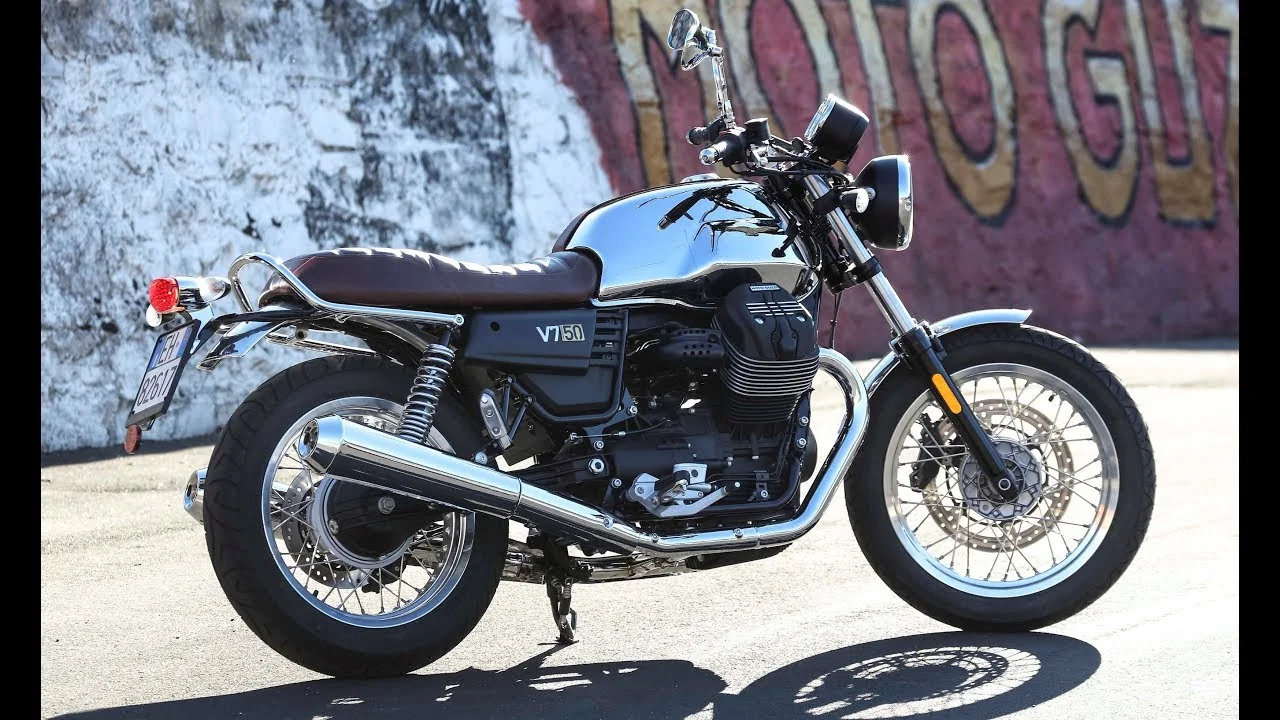

Moto Guzzi V7 III Anniversario
Key specifications
Engine
744 cc
Power
48 HP
Torque
60 Nm
Fuel type
petrol
Fuel capacity
5.8 L
Transmission
5-speed
Seat height
31 mm
Front brakes
Single disc. ABS. Brembo caliper with 4 differentiated pistons
Rear brakes
Single disc. ABS. Floating disc. Two-piston calipers.
Technical details
Source specification data
- Make
- Moto Guzzi
- Model
- V7 III Anniversario
- Category
- Classic
- Starter
- Electric
- Comments
- S
- .
- Traction
- control.
- Limited
- edition of 750 units.
- Color Options
- Chrome, red/chrome
- Factory Warranty
- Two-year manufacturer’s warranty and roadside assistance for one year
- Power
- 48.00 HP (35.0 kW)) @ 6200 RPM
- Clutch
- Dry single plate with flexible couplings
- Torque
- 60.00 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 2800 RPM
- Gearbox
- 5-speed
- Driveline
- Compact Reactive Shaft Drive
- Engine Type
- Light alloy pushrods and rockers
- Fuel System
- Injection. Weber-Marelli
- Bore X Stroke
- 80.0 x 74.0 mm (3.1 x 2.9 inches)
- Compression
- 10.5:1
- Displacement
- 744.00 ccm (45.40 cubic inches)
- Cooling System
- Air
- Engine Details
- V2, four-stroke
- Exhaust System
- 2-in-2 type with balance pipe
- Emission Details
- Euro 3
- Lubrication System
- Forced circulation with lobe pump - circuit capacity: 1.78 Kg
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Shaft drive (cardan)
- Seat Height
- 790 mm (31.1 inches) If adjustable, lowest setting.
- Fuel Capacity
- 22.00 litres (5.81 gallons)
- Overall Width
- 800 mm (31.5 inches)
- Overall Height
- 1,113 mm (43.8 inches)
- Overall Length
- 2,184 mm (86.0 inches)
- Ground Clearance
- 179 mm (7.0 inches)
- Reserve Fuel Capacity
- 2.50 litres (0.66 gallons)
- Weight Incl Oil Gas Etc
- 190.0 kg (418.9 pounds)
- Rake
- 27.5°
- Seat
- Leather saddle
- Trail
- 117 mm (4.6 inches)
- Wheels
- Spoked with alloy rim
- Rear Tyre
- 130/80-17
- Frame Type
- Double
- cradle tubular frame in
- S
- steel with detachable rear subframe
- Front Tyre
- 100/90-18
- Rear Brakes
- Single
- disc.
- S
- .
- Floating
- disc.
- Two
- -piston calipers.
- Front Brakes
- Single
- disc.
- S
- .
- Brembo
- caliper with 4 differentiated pistons
- Rear Suspension
- Die cast light alloy swing arm with 2 spring preload adjustable shock absorbers
- Front Suspension
- Telescopic hydraulic fork with 40 mm stanchions
- Rear Wheel Travel
- 111 mm (4.4 inches)
- Front Wheel Travel
- 130 mm (5.1 inches)
- Rear Brakes Diameter
- 260 mm (10.2 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Chromered/chrome
