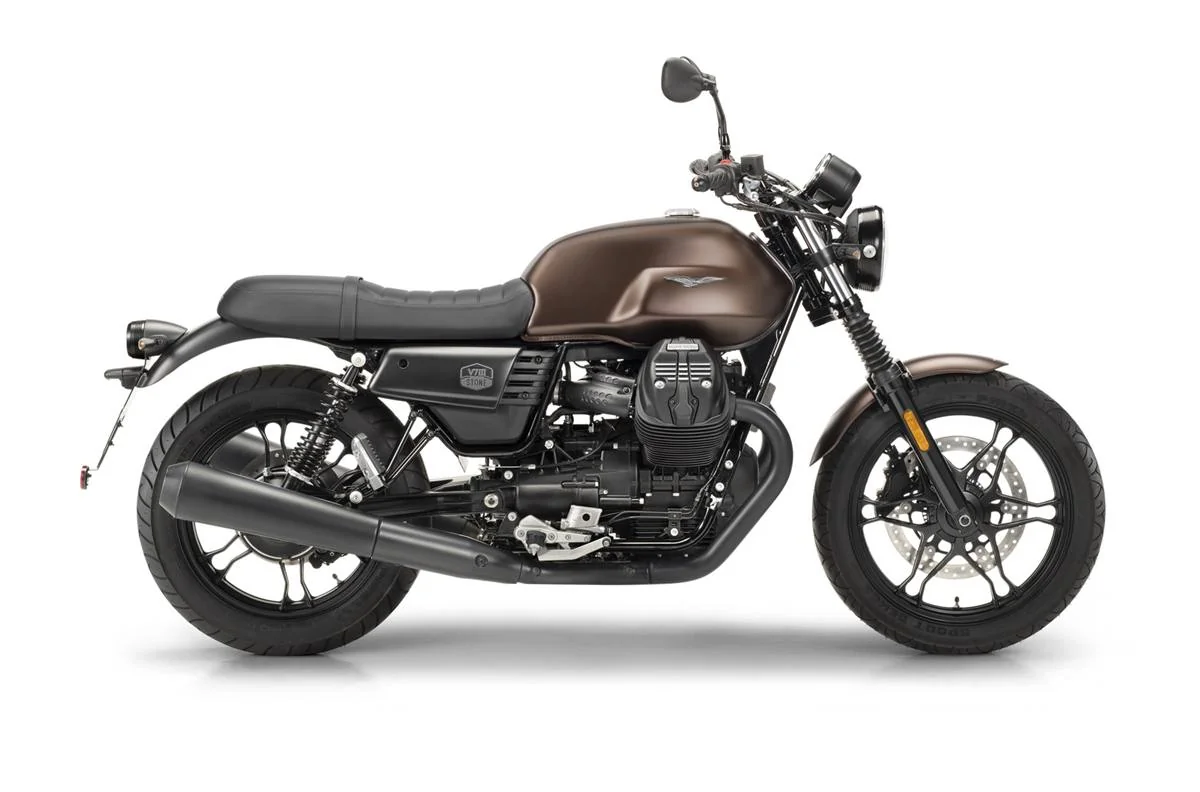

Moto Guzzi V7 III Stone Night Pack

Key specifications

Engine

744 cc

Power

52 HP

Torque

60 Nm

Fuel type

petrol

Fuel capacity

5.6 L

Transmission

5-speed

Seat height

30 mm

Front brakes

Double disc. Brembo caliper with 4 differentiated pistons

Rear brakes

Single disc. Floating disc. Two-piston calipers.

Technical details

Source specification data

Make: Moto Guzzi
Model: V7 III Stone Night Pack
Category: Classic

Starter: Electric
Color Options: Brown, Black, Gray
Factory Warranty: Two-year manufacturer’s warranty and roadside assistance for one year

Power: 52.00 HP (38.0 kW)) @ 6200 RPM
Clutch: Dry single plate with flexible couplings
Torque: 60.00 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 4900 RPM
Gearbox: 5-speed
Driveline: CA.R.C. Compact Reactive Shaft Drive
Engine Type: 90° V-twin
Fuel System: Injection. Weber-Marelli
Bore X Stroke: 80.0 x 74.0 mm (3.1 x 2.9 inches)
Displacement: 744.00 ccm (45.40 cubic inches)
Cooling System: Air
Engine Details: V2, four-stroke
Exhaust System: Three-way catalytic converter with double lambda probe
Lubrication System: Forced circulation with lobe pump - circuit capacity: 1.78 Kg
Transmission Type Final Drive: Shaft drive (cardan)

Seat Height: 770 mm (30.3 inches) If adjustable, lowest setting.
Fuel Capacity: 21.00 litres (5.55 gallons)
Overall Width: 800 mm (31.5 inches)
Overall Height: 1,110 mm (43.7 inches)
Overall Length: 2,185 mm (86.0 inches)
Ground Clearance: 150 mm (5.9 inches)
Alternate Seat Height: 803 mm (31.6 inches) If adjustable, highest setting.
Reserve Fuel Capacity: 3.79 litres (1.00 gallons)
Weight Incl Oil Gas Etc: 189.0 kg (416.7 pounds)

Wheels

Aluminium spoked black anodised rims

Rear Tyre

130/80-17

Frame Type

Double: cradle tubular frame in
S: steel with detachable rear subframe

Front Tyre

100/90-18

Rear Brakes

Single: disc.
Floating: disc.
Two: -piston calipers.

Front Brakes

Double: disc.
Brembo: caliper with 4 differentiated pistons

Rear Suspension

Die cast light alloy swing arm with 2 spring preload adjustable shock absorbers

Front Suspension

Telescopic hydraulic fork with 40 mm stanchions

Rear Brakes Diameter

260 mm (10.2 inches)

Front Brakes Diameter

320 mm (12.6 inches)

Available colors

BrownBlackGray
