Back to Bike FinderYears: 2015
2015Classic

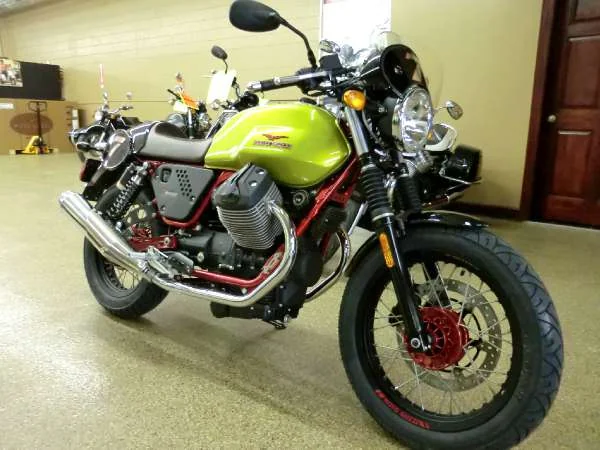

Moto Guzzi V7 Racer Verde Legnano SE
$10,999
Key specifications
Engine
744 cc
Power
50 HP
Torque
58 Nm
Fuel type
petrol
Fuel capacity
5.8 L
Transmission
5-speed
Seat height
31 mm
Front brakes
Single disc. Brembo caliper with 4 differentiated pistons
Rear brakes
Single disc. Floating disc. Two-piston calipers.
Technical details
Source specification data
- Make
- Moto Guzzi
- Model
- V7 Racer Verde Legnano SE
- Price
- S
- $ 10999.
- Prices
- depend on country, taxes, accessories, etc.
- Category
- Classic
- Starter
- Electric
- Comments
- Special
- edition of 50 units sold in the
- S
- .
- Color Options
- Green
- Factory Warranty
- Two-year manufacturer’s warranty and roadside assistance for one year
- Power
- 50.00 HP (36.5 kW)) @ 6200 RPM
- Clutch
- Dry single plate with flexible couplings
- Torque
- 57.90 Nm (5.9 kgf-m or 42.7 ft.lbs) @ 5000 RPM
- Gearbox
- 5-speed
- Driveline
- C.A.R.C. Compact Reactive Shaft Drive
- Engine Type
- 90° V-twin
- Fuel System
- Injection. Weber-Marelli
- Displacement
- 744.00 ccm (45.40 cubic inches)
- Engine Details
- V2, four-stroke
- Exhaust System
- Three-way catalytic converter with double lambda probe
- Lubrication System
- Forced circulation with lobe pump - circuit capacity: 1.78 Kg
- Transmission Type Final Drive
- Shaft drive (cardan)
- Seat Height
- 780 mm (30.7 inches) If adjustable, lowest setting.
- Fuel Capacity
- 22.00 litres (5.81 gallons)
- Overall Width
- 800 mm (31.5 inches)
- Overall Height
- 1,113 mm (43.8 inches)
- Overall Length
- 2,184 mm (86.0 inches)
- Alternate Seat Height
- 803 mm (31.6 inches) If adjustable, highest setting.
- Reserve Fuel Capacity
- 2.50 litres (0.66 gallons)
- Weight Incl Oil Gas Etc
- 198.0 kg (436.5 pounds)
- Rake
- 27.5°
- Trail
- 109 mm (4.3 inches)
- Wheels
- Spoked steel rims
- Rear Tyre
- 130/80-17
- Frame Type
- Double
- cradle tubular frame in
- S
- steel with detachable rear subframe
- Front Tyre
- 100/90-18
- Rear Brakes
- Single
- disc.
- Floating
- disc.
- Two
- -piston calipers.
- Front Brakes
- Single
- disc.
- Brembo
- caliper with 4 differentiated pistons
- Rear Suspension
- Die cast light alloy swing arm with 2 spring preload adjustable shock absorbers
- Front Suspension
- Telescopic hydraulic fork with 40 mm stanchions
- Rear Brakes Diameter
- 260 mm (10.2 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Green
