Back to Bike FinderYears: 2023 · 2022
2023Off-road

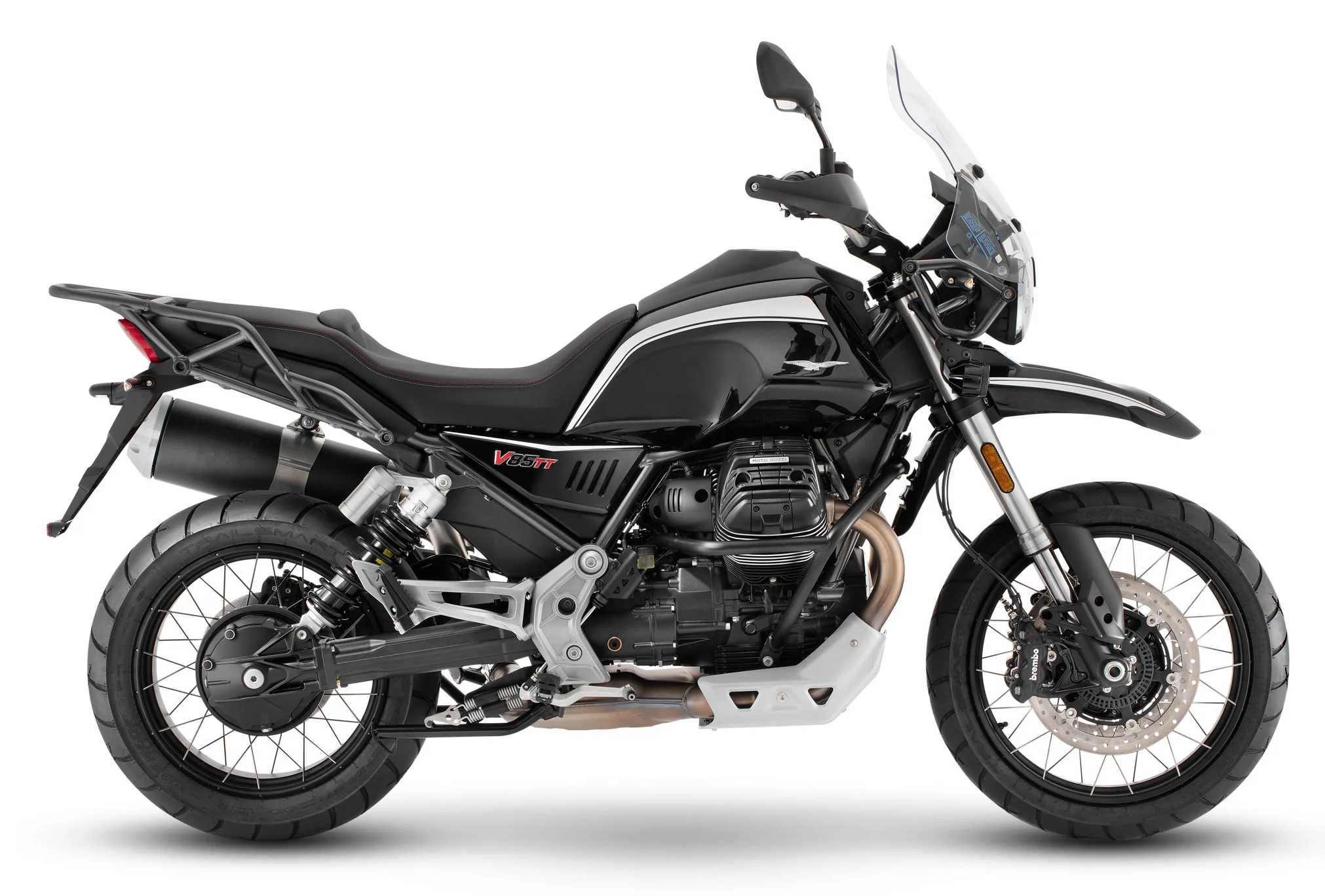

Moto Guzzi V85 TT Guardia dOnore
Key specifications
Engine
853 cc
Power
76 HP
Torque
82 Nm
Weight
219 kg
Fuel type
petrol
Fuel capacity
6.1 L
Transmission
6-speed
Seat height
33 mm
Front brakes
Double disc. Radial Brembo calipers with 4 opposed pistons. ABS.
Rear brakes
Single disc. Floating 2 pistons caliper. ABS.
Technical details
Source specification data
- Make
- Moto Guzzi
- Model
- V85 TT Guardia dOnore
- Category
- Enduro-offroad
- Light
- LED lights
- Starter
- Electric
- Comments
- Ride
- by
- Wire
- , 5
- Riding Mode (Street, Rain, Offroad, Sport, Custom)
- ,
- Cruise Control
- ,
- Traction
- control, large windshield.
- Limited
- edition.
- Instruments
- Colour TFT instrument panel
- Color Options
- Glossy black
- Power
- 76.0 HP (55.5 kW)) @ 7500 RPM
- Clutch
- Dry single disc
- Torque
- 82.0 Nm (8.4 kgf-m or 60.5 ft.lbs) @ 5000 RPM
- Gearbox
- 6-speed
- Ignition
- electronic
- Engine Type
- V2, four-stroke
- Fuel System
- Injection
- Bore X Stroke
- 84.0 x 77.0 mm (3.3 x 3.0 inches)
- Displacement
- 853.0 ccm (52.05 cubic inches)
- Cooling System
- Air
- Engine Details
- Transversal
- 90°
- V
- -twin.
- Titanium
- intake.
- Emission Details
- Euro 5
- Fuel Consumption
- 4.08 litres/100 km (24.5 km/l or 57.65 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Shaft drive (cardan) (final drive)
- Dry Weight
- 219.0 kg (482.8 pounds)
- Seat Height
- 830 mm (32.7 inches) If adjustable, lowest setting.
- Oil Capacity
- 1.80 litres (1.9 US quarts)
- Fuel Capacity
- 23.00 litres (6.08 US gallons)
- Ground Clearance
- 150 mm (5.9 inches)
- Power Weight Ratio
- 0.3470 HP/kg
- Reserve Fuel Capacity
- 5.00 litres (1.32 US gallons)
- Weight Incl Oil Gas Etc
- 240.0 kg (529.1 pounds)
- Rake
- 28.0°
- Trail
- 104 mm (4.1 inches)
- Wheels
- Cross spoked tubeless wheel.
- Rear Tyre
- 150/70-17
- Frame Type
- Tubular steel
- Front Tyre
- 110/80-19
- Rear Brakes
- Single
- disc.
- Floating
- 2 pistons caliper.
- S
- .
- Front Brakes
- Double
- disc.
- Radial Brembo
- calipers with 4 opposed pistons.
- S
- .
- Rear Suspension
- Swingarm Twin-sided with lateral mono shock absorber, adjustable extension and spring preload.
- Front Suspension
- Upside down hydraulic telescopic fork Ø 41 mm, with adjustable extension and spring preload.
- Rear Brakes Diameter
- 260 mm (10.2 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Glossy black
