Back to Bike FinderYears: 2021

2021Off-road

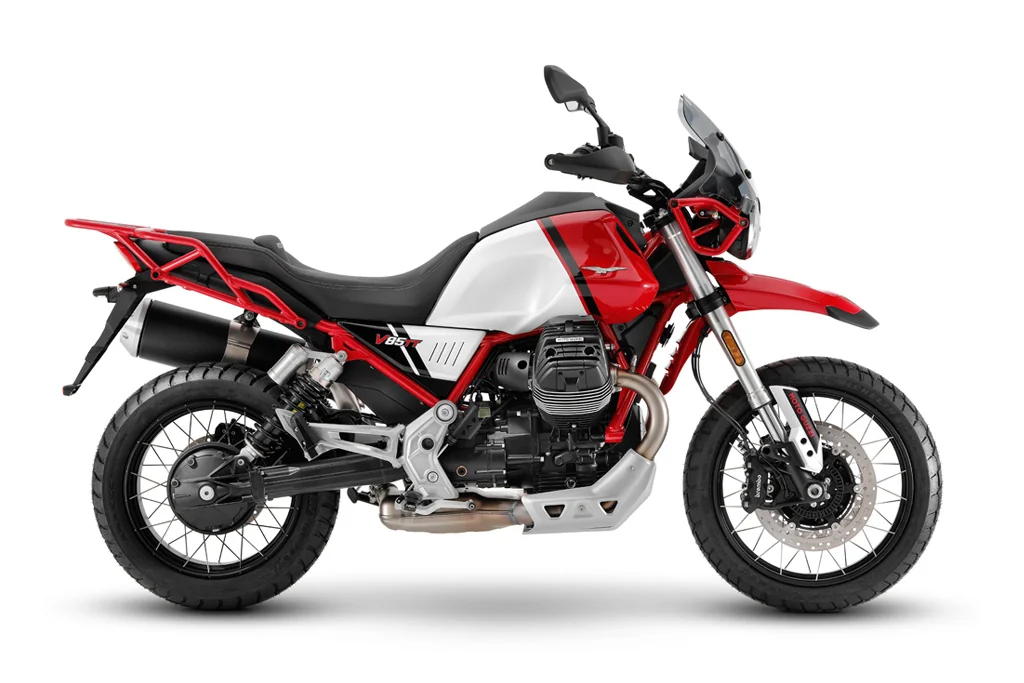

Moto Guzzi V85 TT Premium Graphics

Key specifications

Engine

853 cc

Power

80 HP

Torque

80 Nm

Weight

208 kg

Fuel type

petrol

Fuel capacity

5.6 L

Transmission

6-speed

Seat height

32 mm

Front brakes

Double disc. Radial Brembo calipers with 4 opposed pistons. ABS.

Rear brakes

Single disc. Floating 2 pistons caliper. ABS.

Technical details

Source specification data

Make: Moto Guzzi
Model: V85 TT Premium Graphics
Category: Enduro-offroad

Light

LED lights

Starter

Electric

Comments

Ride: by
Wire: , 3
Riding Mode: .
Traction: control.
Cruise Control: .
Small: windshield.

Instruments

TFT instrumentation

Color Options

Red/white, Red/white/yellow

Power

80.0 HP (58.4 kW)) @ 7750 RPM

Torque

80.0 Nm (8.2 kgf-m or 59.0 ft.lbs) @ 5000 RPM

Gearbox

6-speed

Engine Type

Transversal 90° V-twin

Fuel System

Injection

Bore X Stroke

84.0 x 77.0 mm (3.3 x 3.0 inches)

Displacement

853.0 ccm (52.05 cubic inches)

Cooling System

Air

Engine Details

V2, four-stroke

Emission Details

Euro 4

Fuel Consumption

4.90 litres/100 km (20.4 km/l or 48.00 mpg)

Greenhouse Gases

O2: g/km. (
O2: -
Carbon: dioxide emission)

Valves Per Cylinder

Transmission Type Final Drive

Chain

Dry Weight: 208.0 kg (458.6 pounds)
Seat Height: 803 mm (31.6 inches) If adjustable, lowest setting.
Fuel Capacity: 21.00 litres (5.55 gallons)
Power Weight Ratio: 0.3846 HP/kg
Reserve Fuel Capacity: 5.00 litres (1.32 gallons)
Weight Incl Oil Gas Etc: 229.0 kg (504.9 pounds)

Wheels

Spoked with tube

Rear Tyre

150/70-17

Front Tyre

110/80-19

Rear Brakes

Single: disc.
Floating: 2 pistons caliper.
S: .

Front Brakes

Double: disc.
Radial Brembo: calipers with 4 opposed pistons.
S: .

Rear Suspension

Swingarm Twin-sided with lateral mono shock absorber, adjustable extension and spring preload.

Front Suspension

Upside down hydraulic telescopic fork Ø 41 mm, with adjustable extension and spring preload.

Available colors

Red/whiteRed/white/yellow
