2020Off-road

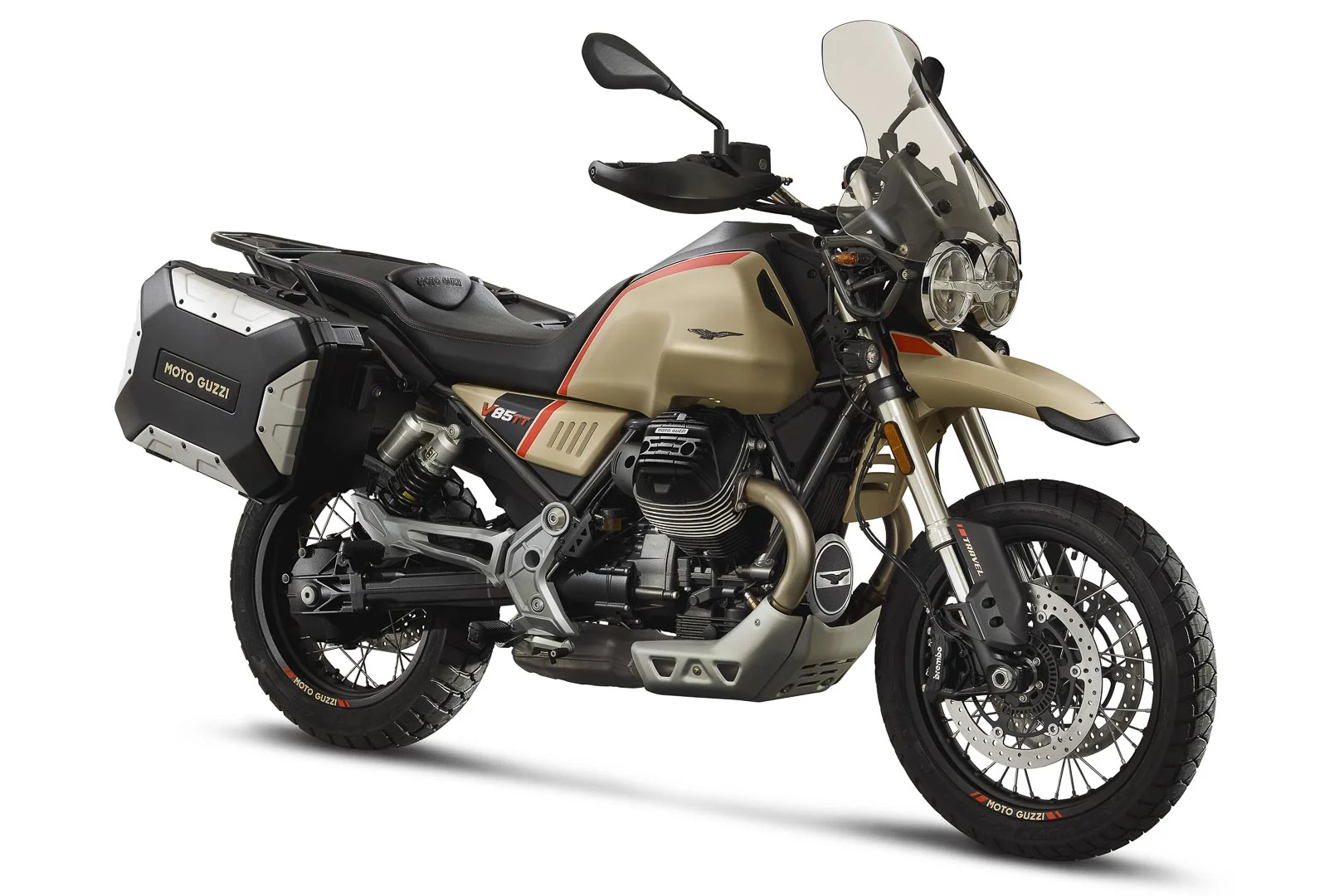

Moto Guzzi V85 TT Travel
Key specifications
Engine
853 cc
Power
80 HP
Torque
80 Nm
Weight
208 kg
Fuel type
petrol
Fuel capacity
6.1 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc. Radial Brembo calipers with 4 opposed pistons. ABS.
Rear brakes
Single disc. Floating 2 pistons caliper. ABS.
Technical details
Source specification data
- Make
- Moto Guzzi
- Model
- V85 TT Travel
- Category
- Enduro-offroad
- Light
- LED lights
- Starter
- Electric
- Comments
- Ride
- by
- Wire
- , 3
- Riding Mode (Street, Rain, Off and #8208;road)
- .
- Cruise Control
- .
- Smoked
- plexiglass windshield.
- Color Options
- Red/white, red, grey, blue, yellow/white
- Power
- 80.00 HP (58.4 kW)) @ 7750 RPM
- Torque
- 80.00 Nm (8.2 kgf-m or 59.0 ft.lbs) @ 5000 RPM
- Gearbox
- 6-speed
- Fuel System
- Injection
- Bore X Stroke
- 84.0 x 77.0 mm (3.3 x 3.0 inches)
- Displacement
- 853.00 ccm (52.05 cubic inches)
- Cooling System
- Air
- Engine Details
- V2, four-stroke
- Emission Details
- Euro 4
- Fuel Consumption
- 4.90 litres/100 km (20.4 km/l or 48.00 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Chain
- Dry Weight
- 208.0 kg (458.6 pounds)
- Seat Height
- 803 mm (31.6 inches) If adjustable, lowest setting.
- Fuel Capacity
- 23.00 litres (6.08 gallons)
- Power Weight Ratio
- 0.3846 HP/kg
- Reserve Fuel Capacity
- 5.00 litres (1.32 gallons)
- Weight Incl Oil Gas Etc
- 229.0 kg (504.9 pounds)
- Rear Tyre
- 150/70-17
- Front Tyre
- 110/80-19
- Rear Brakes
- Single
- disc.
- Floating
- 2 pistons caliper.
- S
- .
- Front Brakes
- Double
- disc.
- Radial Brembo
- calipers with 4 opposed pistons.
- S
- .
- Rear Suspension
- Swingarm Twin and #8208;sided with lateral mono shock absorber, adjustable extension and spring preload.
- Front Suspension
- Upside and #8208;down hydraulic telescopic fork Ø 41 mm, with adjustable extension and spring preload.
- Rear Brakes Diameter
- 260 mm (10.2 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Red/whiteredgreyblueyellow/white
