2012Naked

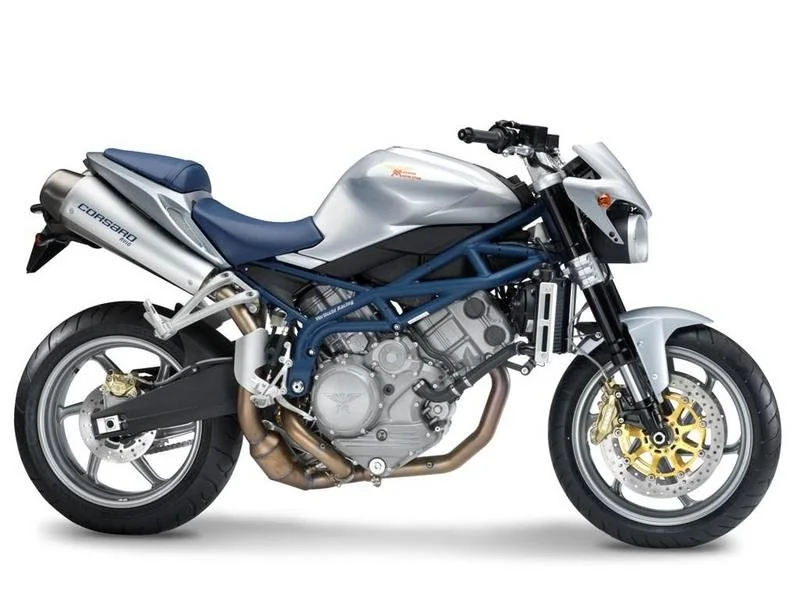

Moto Morini Corsaro Avio
Key specifications
Engine
1187 cc
Power
120 HP
Torque
102 Nm
Weight
198 kg
Fuel type
petrol
Fuel capacity
4.8 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc. Bremo, 4-piston caliper
Rear brakes
Single disc. bremo
Technical details
Source specification data
- Make
- Moto Morini
- Model
- Corsaro Avio
- Category
- Naked bike
- Light
- Dual head lights
- Starter
- Electric
- Color Options
- Silver/Blue
- Factory Warranty
- 3 years.
- Power
- 120.00 HP (87.6 kW)) @ 8500 RPM
- Clutch
- Multiple-plate clutch in oil bath with antiskipping system and radial master-cylinder
- Torque
- 102.00 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 6700 RPM
- Gearbox
- 6-speed
- Driveline
- 6 ratio with constant mesh spur gears
- Engine Type
- Corta
- 87 degree longitudinal
- V
- -twin
- Fuel System
- Injection
- .
- Magneti Melli
- indirect electronic injection with 54 mm Ø throttle body
- Bore X Stroke
- 107.0 x 66.0 mm (4.2 x 2.6 inches)
- Compression
- 12.5:1
- Displacement
- 1187.00 ccm (72.43 cubic inches)
- Cooling System
- Liquid
- Engine Details
- V2, four-stroke
- Exhaust System
- Sport Termignoni with double silencer, 3-way catalytic converter and oxygen sensor.
- Emission Details
- Euro 3.
- Lubrication System
- Oil Pump
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Dry Weight
- 198.0 kg (436.5 pounds)
- Seat Height
- 800 mm (31.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 18.00 litres (4.76 gallons)
- Overall Width
- 810 mm (31.9 inches)
- Overall Height
- 830 mm (32.7 inches)
- Overall Length
- 2,070 mm (81.5 inches)
- Ground Clearance
- 140 mm (5.5 inches)
- Power Weight Ratio
- 0.6061 HP/kg
- Reserve Fuel Capacity
- 4.00 litres (1.06 gallons)
- Rake
- 24.5°
- Trail
- 100 mm (3.9 inches)
- Wheels
- Casted Aluminium alloy
- Rear Tyre
- 180/55-ZR17
- Frame Type
- High-strength steel tube trellis frame
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single disc. bremo
- Front Brakes
- Double disc. Bremo, 4-piston caliper
- Rear Suspension
- Progressive
- linkage with
- Sachs
- monoshock adjustable in rebound, compression and spring loading
- Front Suspension
- Marzocchi upside down with 50 mm Ø stems, hydraulically adjustable in extension, compression and preloading.
- Rear Wheel Travel
- 130 mm (5.1 inches)
- Front Wheel Travel
- 129 mm (5.1 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Silver/Blue
