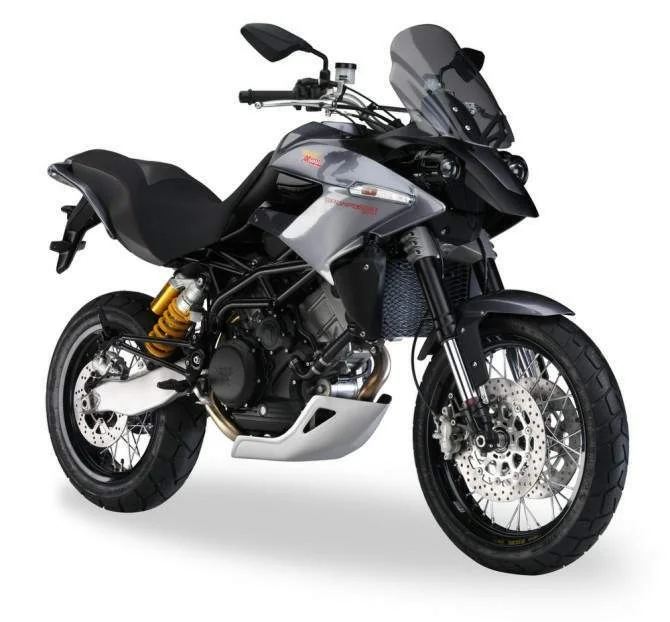

Moto Morini Granpasso 1200
Key specifications
Engine
1187 cc
Power
118 HP
Torque
104 Nm
Weight
210 kg
Fuel type
petrol
Fuel capacity
7.1 L
Transmission
6-speed
Seat height
34 mm
Front brakes
Double disc. Floating disc, 2-piston
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Moto Morini
- Model
- Granpasso 1200
- Category
- Allround
- Starter
- Electric
- Comments
- Made in Italy.
- Instruments
- Electronic
- rev counter and speedometer with multifunctional
- D
- display
- Color Options
- Silver, white, red
- Factory Warranty
- 3 year unlimited milage
- Power
- 118.00 HP (86.1 kW)) @ 8500 RPM
- Torque
- 103.60 Nm (10.6 kgf-m or 76.4 ft.lbs) @ 7000 RPM
- Gearbox
- 6-speed
- Ignition
- I.A.W. electronics
- Driveline
- With constant mesh spur gears
- Engine Type
- Corta
- 87 degree
- V
- -twin engine
- Fuel System
- Injection. Magneti Marelli
- Bore X Stroke
- 107.0 x 66.0 mm (4.2 x 2.6 inches)
- Compression
- 12.5:1
- Displacement
- 1187.00 ccm (72.43 cubic inches)
- Cooling System
- Liquid
- Engine Details
- V2, four-stroke
- Exhaust System
- Silencer with 3-way catalytic converter with oxygen sensor
- Emission Details
- Euro 3
- Lubrication System
- Forced by oil pump
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Dry Weight
- 210.0 kg (463.0 pounds)
- Seat Height
- 875 mm (34.4 inches) If adjustable, lowest setting.
- Fuel Capacity
- 27.00 litres (7.13 gallons)
- Overall Width
- 850 mm (33.5 inches)
- Overall Height
- 875 mm (34.4 inches)
- Overall Length
- 2,170 mm (85.4 inches)
- Ground Clearance
- 200 mm (7.9 inches)
- Power Weight Ratio
- 0.5619 HP/kg
- Reserve Fuel Capacity
- 5.50 litres (1.45 gallons)
- Rake
- 26.5°
- Trail
- 110 mm (4.3 inches)
- Wheels
- Excel spoke rims with aluminium channel
- Rear Tyre
- 150/70-R17
- Frame Type
- High-strength steel tube trellis frame
- Front Tyre
- 110/80-R19
- Rear Brakes
- Single disc
- Front Brakes
- Double disc. Floating disc, 2-piston
- Rear Suspension
- Ohlins single shock absorber with separate tank featuring spring length, preload, rebound and compression damping multiple adjustment
- Front Suspension
- Marzocchi upside-down fork
- Rear Wheel Travel
- 200 mm (7.9 inches)
- Front Wheel Travel
- 190 mm (7.5 inches)
- Rear Brakes Diameter
- 255 mm (10.0 inches)
- Front Brakes Diameter
- 298 mm (11.7 inches)
Available colors
Silverwhitered
