2012Classic

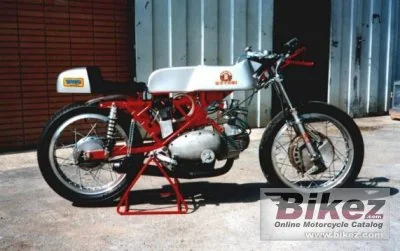

Motobi Zanzani 250 6 Tiranti
$8,500
Key specifications
Engine
249 cc
Weight
101 kg
Fuel type
petrol
Fuel capacity
4.2 L
Transmission
5-speed
Front brakes
Single disc. Fontana 4LS Magnesium
Rear brakes
Single disc. OEM 2LS
Technical details
Source specification data
- Make
- Motobi
- Model
- Zanzani 250 6 Tiranti
- Price
- Euro
- 8500.
- Prices
- depend on country, taxes, accessories, etc.
- Category
- Classic
- Starter
- Electric
- Comments
- Made by Primo Zanzani, Italy.
- Color Options
- Red/white, gray
- Gearbox
- 5-speed
- Ignition
- Crane cams electronic ignition/Helotronik
- Driveline
- Constant mesh
- Engine Type
- Manufactured
- to original drawings,
- Steel
- valve , steel retainer,
- R
- and
- D
- valve springs.
- Fuel System
- Carburettor
- .
- Dell
- ´
- F
- carburetor with horizontal conversion
- Bore X Stroke
- 75.0 x 57.0 mm (3.0 x 2.2 inches)
- Compression
- 11.0:1
- Displacement
- 249.00 ccm (15.19 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Oil Pump
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Chain
- Dry Weight
- 101.0 kg (222.7 pounds)
- Oil Capacity
- 1.50 litres (0.10 quarts)
- Fuel Capacity
- 16.00 litres (4.23 gallons)
- Overall Width
- 400 mm (15.7 inches)
- Overall Length
- 1,920 mm (75.6 inches)
- Ground Clearance
- 195 mm (7.7 inches)
- Weight Incl Oil Gas Etc
- 117.0 kg (257.9 pounds)
- Wheels
- Front and rear Akront aluminum rims
- Rear Tyre
- 110/80-18
- Frame Type
- Zanzani racing frame
- Front Tyre
- 2.78-18
- Rear Brakes
- Single disc. OEM 2LS
- Front Brakes
- Single disc. Fontana 4LS Magnesium
- Rear Suspension
- Work shocks, aluminium
- Front Suspension
- Ceriani fork
- Rear Brakes Diameter
- 160 mm (6.3 inches)
- Front Brakes Diameter
- 210 mm (8.3 inches)
Available colors
Red/whitegray
