2020Naked

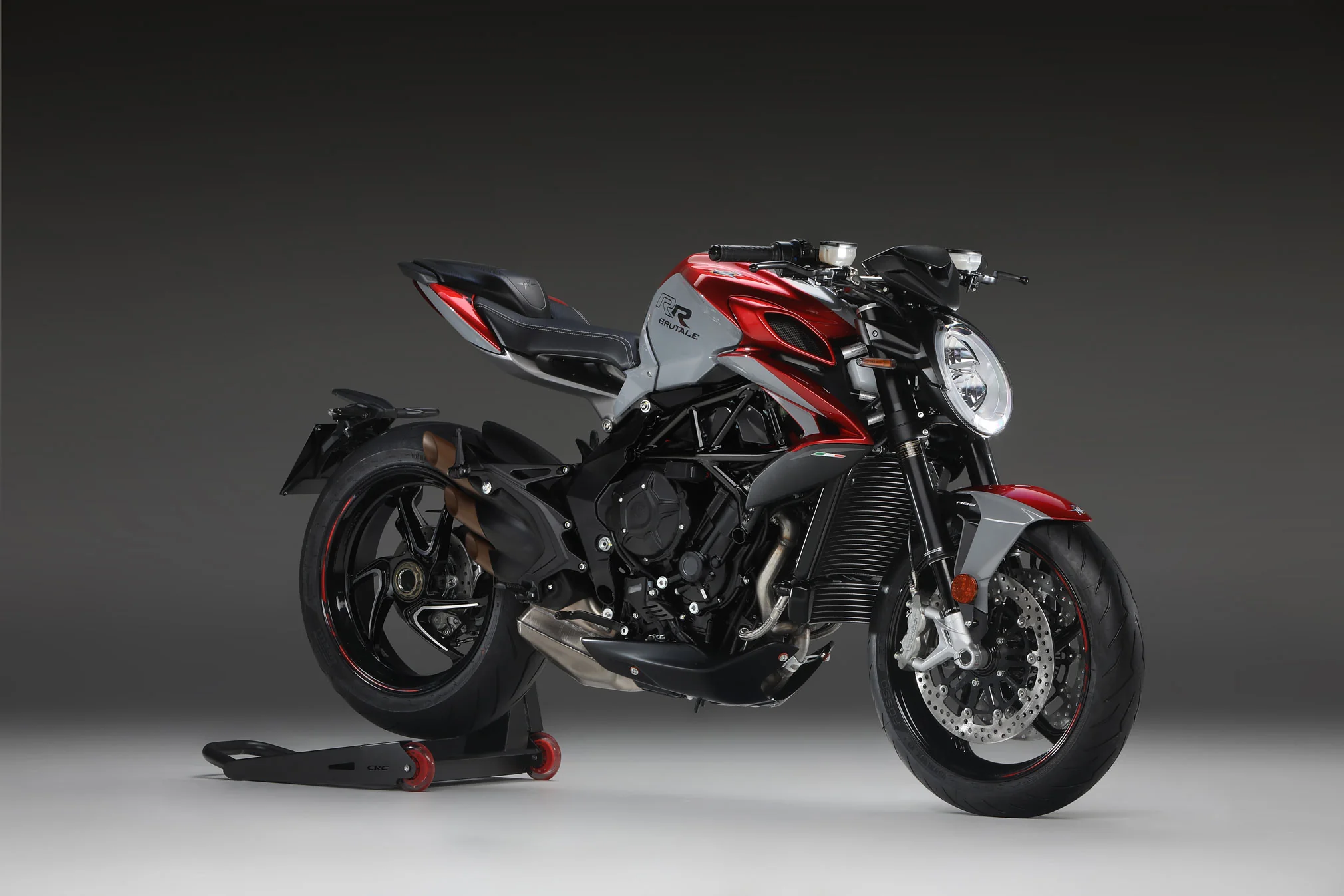

MV Agusta Brutale 800 RR
Key specifications
Engine
798 cc
Power
140 HP
Torque
87 Nm
Weight
175 kg
Fuel type
petrol
Fuel capacity
4.4 L
Transmission
6-speed
Seat height
33 mm
Front brakes
Double disc. Brembo radial-type, with 4 pistons
Rear brakes
Single disc. Brembo with 2 pistons
Technical details
Source specification data
- Make
- MV Agusta
- Model
- Brutale 800 RR
- Category
- Naked bike
- Starter
- Electric
- Comments
- Traction control with eight levels of intervention.
- Color Options
- Pearl Shock Red/Avio Grey, Ago Silver/Dark Metallic Grey
- Power
- 140.00 HP (102.2 kW)) @ 12300 RPM
- Clutch
- Multi-disk wet clutch with hydraulic actuation and back torque limiting device
- Torque
- 87.00 Nm (8.9 kgf-m or 64.2 ft.lbs) @ 10100 RPM
- Gearbox
- 6-speed
- Top Speed
- 244.0 km/h (151.6 mph)
- Fuel System
- Injection
- .
- Integrated
- ignition - injection system
- S
- 2.0 (
- Motor
- and
- Vehicle Integrated Control System
- ) with six injectors.
- Engine
- control unit
- M2
- .0, throttle body full ride by wire
- Mikuni
- , pencil-coil with ion-sensing technology, control of detonation
- Bore X Stroke
- 79.0 x 54.3 mm (3.1 x 2.1 inches)
- Compression
- 13.3:1
- Displacement
- 798.00 ccm (48.69 cubic inches)
- Cooling System
- Oil & air
- Engine Details
- In-line three, four-stroke
- Emission Details
- Euro 4
- Fuel Consumption
- 6.70 litres/100 km (14.9 km/l or 35.11 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Dry Weight
- 175.0 kg (385.8 pounds)
- Seat Height
- 830 mm (32.7 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.50 litres (4.36 gallons)
- Overall Width
- 875 mm (34.4 inches)
- Overall Length
- 2,045 mm (80.5 inches)
- Ground Clearance
- 135 mm (5.3 inches)
- Power Weight Ratio
- 0.8000 HP/kg
- Trail
- 104 mm (4.1 inches)
- Wheels
- Aluminium alloy
- Rear Tyre
- 180/55-ZR17
- Frame Type
- ALS Steel tubular trellis
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single disc. Brembo with 2 pistons
- Front Brakes
- Double
- disc.
- Brembo
- radial-type, with 4 pistons
- Rear Suspension
- Progressive
- linkage with
- Sachs
- monoshock
- Front Suspension
- Marzocchi upside down telescopic hydraulic fork
- Rear Wheel Travel
- 124 mm (4.9 inches)
- Front Wheel Travel
- 125 mm (4.9 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Pearl Shock Red/Avio GreyAgo Silver/Dark Metallic Grey
