Back to Bike FinderYears: 2023
2023Concept

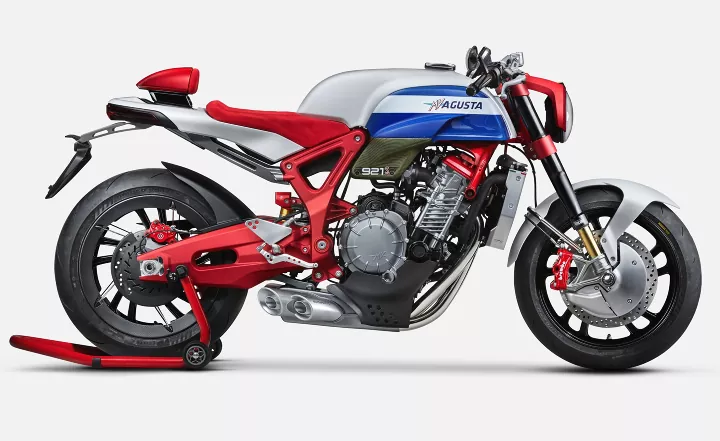

MV Agusta Concept 921 S
Key specifications
Engine
921 cc
Power
116 HP
Torque
115 Nm
Weight
205 kg
Fuel type
petrol
Fuel capacity
4.2 L
Transmission
6-speed
Seat height
33 mm
Front brakes
Double disc. ABS. Brembo Stylema 4-piston radial calipers
Rear brakes
Single disc. ABS. Brembo twin-piston caliper
Technical details
Source specification data
- Make
- MV Agusta
- Model
- Concept 921 S
- Category
- Prototype-concept model
- Starter
- Electric
- Comments
- Launch control, traction control, riding modes.
- Electrical
- 12V 8.6 Ah battery. 350W alternator.
- Color Options
- Red/blue/silver
- Power
- 115.5 HP (84.3 kW))
- Clutch
- Multi-plate in oil bath, radially-mounted master cylinder
- Torque
- 115.3 Nm (11.8 kgf-m or 85.0 ft.lbs)
- Gearbox
- 6-speed
- Ignition
- Magneti Marelli 5SM
- Driveline
- Primay 50/79. Final 15/40.
- Engine Type
- In-line four, four-stroke
- Fuel System
- Injection. Mikuni
- Bore X Stroke
- 73.0 x 55.0 mm (2.9 x 2.2 inches)
- Compression
- 13.0:1
- Displacement
- 921.0 ccm (56.20 cubic inches)
- Cooling System
- Liquid
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain (final drive)
- Dry Weight
- 205.0 kg (451.9 pounds)
- Seat Height
- 830 mm (32.7 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.00 litres (4.23 US gallons)
- Overall Width
- 845 mm (33.3 inches)
- Overall Length
- 2100 mm (82.7 inches)
- Ground Clearance
- 125 mm (4.9 inches)
- Power Weight Ratio
- 0.5634 HP/kg
- Trail
- 104 mm (4.1 inches)
- Wheels
- Aluminium alloy rims
- Rear Tyre
- 180/55-ZR17
- Frame Type
- Tubular CrMo steel trellis
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single
- disc.
- S
- .
- Brembo
- twin-piston caliper
- Front Brakes
- Double
- disc.
- S
- .
- Brembo Stylema
- 4-piston radial calipers
- Rear Suspension
- Aluminum
- alloy swingarm, Öhlins
- X36
- shock
- Front Suspension
- Öhlins Nix USD fork, 43 mm
- Rear Wheel Travel
- 120 mm (4.7 inches)
- Front Wheel Travel
- 120 mm (4.7 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Red/blue/silver
