2015Sportbike

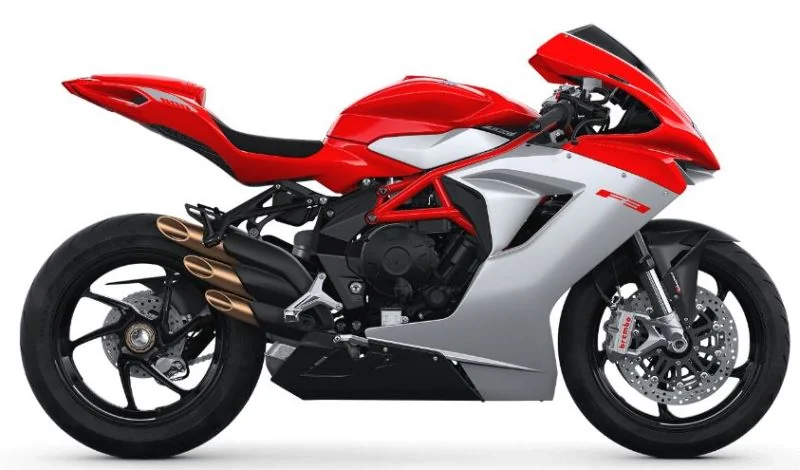

MV Agusta F3 800
Key specifications
Engine
798 cc
Power
148 HP
Torque
88 Nm
Weight
173 kg
Fuel type
petrol
Fuel capacity
4.4 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc. Brembo radial-type monobloc, with 4 piston
Rear brakes
Single disc. Brembo with 2 pistons
Technical details
Source specification data
- Make
- MV Agusta
- Model
- F3 800
- Category
- Sport
- Starter
- Electric
- Comments
- Ride By Wire system.
- Instruments
- Digital dashboard
- Color Options
- Red/silver, white/grey, black
- Power
- 148.00 HP (108.0 kW)) @ 13000 RPM
- Clutch
- Wet, multi-disc with mechanical drive
- Torque
- 88.00 Nm (9.0 kgf-m or 64.9 ft.lbs) @ 10600 RPM
- Gearbox
- 6-speed
- Ignition
- Digital CDI
- Top Speed
- 269.0 km/h (167.1 mph)
- Fuel System
- Injection
- Bore X Stroke
- 79.0 x 54.3 mm (3.1 x 2.1 inches)
- Compression
- 13.0:1
- Displacement
- 798.00 ccm (48.69 cubic inches)
- Cooling System
- Liquid
- Engine Details
- In-line three, four-stroke
- Lubrication System
- Wet sump
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Dry Weight
- 173.0 kg (381.4 pounds)
- Seat Height
- 812 mm (32.0 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.50 litres (4.36 gallons)
- Overall Width
- 725 mm (28.5 inches)
- Overall Length
- 2,060 mm (81.1 inches)
- Ground Clearance
- 115 mm (4.5 inches)
- Power Weight Ratio
- 0.8555 HP/kg
- Seat
- 2-person seat
- Trail
- 99 mm (3.9 inches)
- Wheels
- Aluminium
- alloy.
- Pirelli Diablo Rosso Corsa
- tyres.
- Rear Tyre
- 180/55-ZR17
- Frame Type
- ALS Steel tubular trellis
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single disc. Brembo with 2 pistons
- Front Brakes
- Double
- disc.
- Brembo
- radial-type monobloc, with 4 piston
- Rear Suspension
- Sachs Adjustable monoshock
- Front Suspension
- Marzocchi UPD Telescopic fork
- Rear Wheel Travel
- 123 mm (4.8 inches)
- Front Wheel Travel
- 125 mm (4.9 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Red/silverwhite/greyblack
