Back to Bike FinderYears: 2026
2023Sportbike

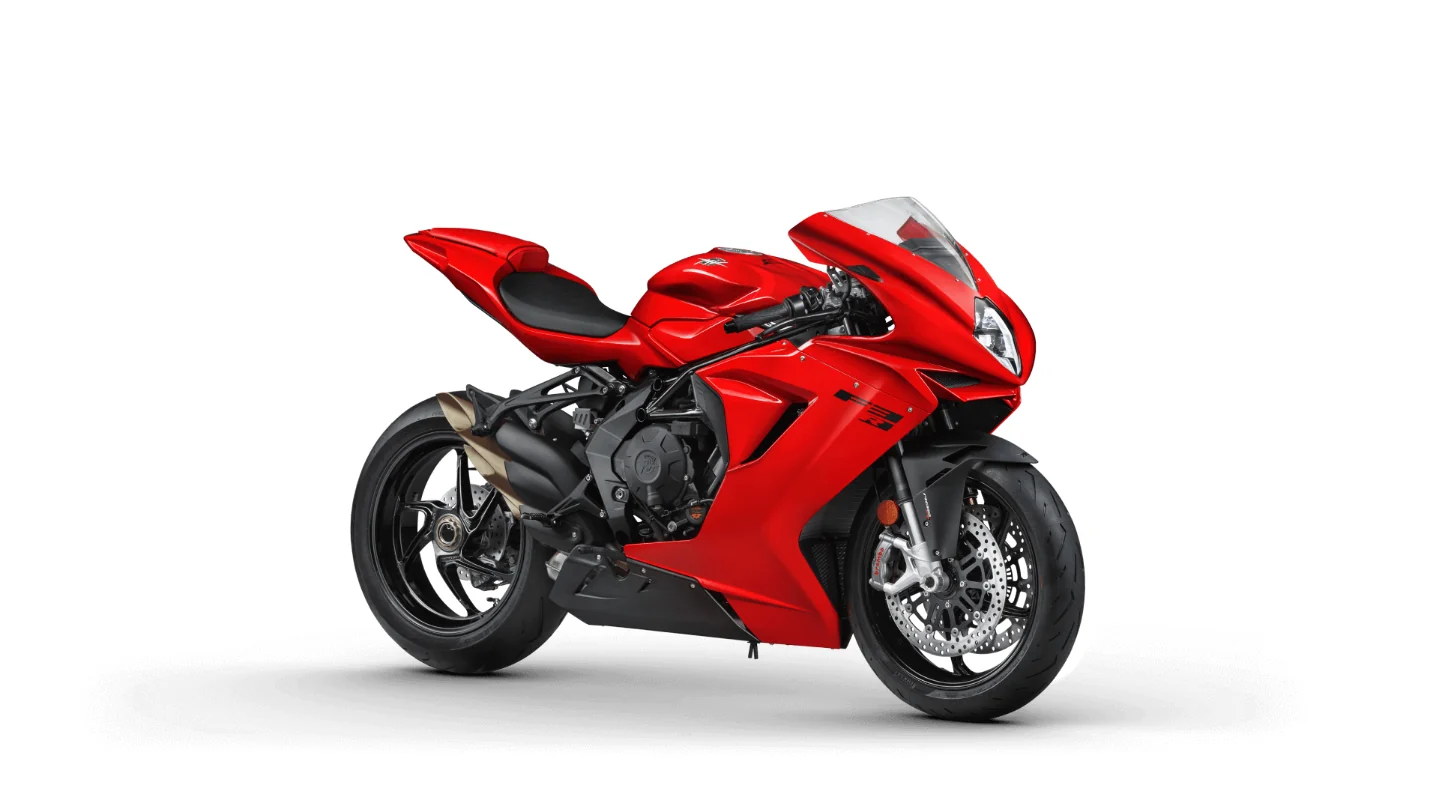

MV Agusta F3 R
Key specifications
Engine
798 cc
Torque
88 Nm
Weight
173 kg
Fuel type
petrol
Fuel capacity
4.4 L
Transmission
6-speed
Seat height
33 mm
Front brakes
Double disc. Brembo radial-type monoblo 4 piston. ABS.
Rear brakes
Single disc. Brembo.2 pistons. ABS.
Technical details
Source specification data
- Make
- MV Agusta
- Model
- F3 R
- Category
- Sport
- Light
- LED headlight
- Starter
- Electric
- Comments
- Improved
- ride by wire system.
- Traction Control
- with eight levels of intervention.
- Cruise
- control.
- Launch
- control.
- Bluetooth
- ,
- S
- ,
- V Ride App
- for navigation mirroring, app-controlled engine, rider aids setup,
- Mobisat
- tracker.
- Instruments
- TFT 5.5”color display
- Color Options
- Ago Red
- Clutch
- Wet, multi-disc slipper clutch
- Torque
- 88.0 Nm (9.0 kgf-m or 64.9 ft.lbs) @ 10100 RPM
- Gearbox
- 6-speed
- Top Speed
- 240.0 km/h (149.1 mph)
- Driveline
- Cassette style; six speed, constant mesh
- Engine Type
- In-line three, four-stroke
- Fuel System
- Injection
- .
- Integrated
- ignition - injection system
- S (Motor and Vehicle Integrated Control System)
- with six injectors
- Bore X Stroke
- 79.0 x 54.3 mm (3.1 x 2.1 inches)
- Compression
- 13.3:1
- Displacement
- 798.0 ccm (48.69 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Mechanical
- chain tensioner and
- C
- tappet
- Emission Details
- Euro 5
- Fuel Consumption
- 6.10 litres/100 km (16.4 km/l or 38.56 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Zero To One Hundred
- 3.05 seconds
- Lubrication System
- Wet sump
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain (final drive)
- Dry Weight
- 173.0 kg (381.4 pounds)
- Seat Height
- 830 mm (32.7 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.50 litres (4.36 US gallons)
- Overall Width
- 730 mm (28.7 inches)
- Overall Length
- 2030 mm (79.9 inches)
- Ground Clearance
- 120 mm (4.7 inches)
- Power Weight Ratio
- 0.8497 HP/kg
- Trail
- 99 mm (3.9 inches)
- Wheels
- Aluminium
- alloy rims.
- V
- tires.
- Rear Tyre
- 180/55-ZR17
- Frame Type
- ALS Steel tubular trellis
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single disc. Brembo.2 pistons. ABS.
- Front Brakes
- Double
- disc.
- Brembo
- radial-type monoblo 4 piston.
- S
- .
- Rear Suspension
- Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment.
- Front Suspension
- Marzocchi
- “
- N
- ” telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment.
- Rear Wheel Travel
- 130 mm (5.1 inches)
- Front Wheel Travel
- 125 mm (4.9 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Ago Red
