Back to Bike FinderYears: 2006
2006Sportbike

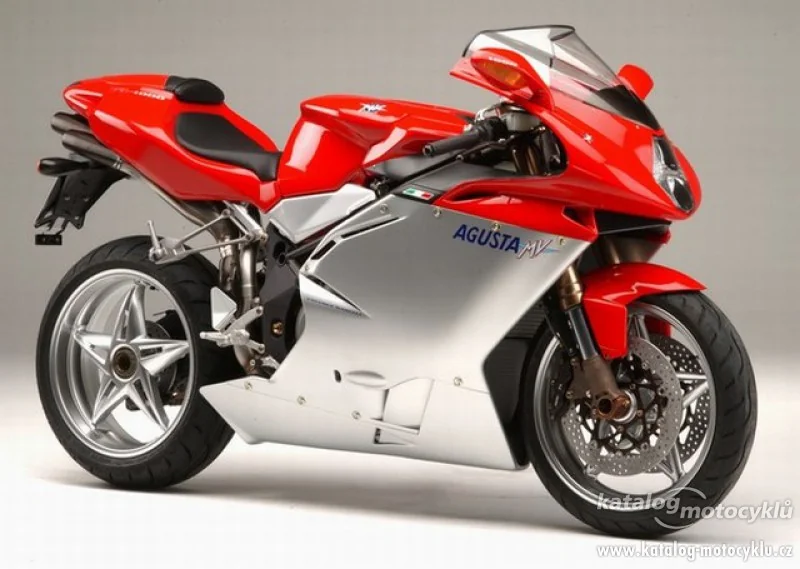

MV Agusta F4 750 S
Key specifications
Engine
749 cc
Power
135 HP
Weight
191 kg
Fuel type
petrol
Fuel capacity
4.6 L
Transmission
6-speed
Front brakes
Double disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- MV Agusta
- Model
- F4 750 S
- Category
- Sport
- Starter
- Electric
- Power
- 135.04 HP (98.6 kW)) @ 12600 RPM
- Clutch
- Wet, multi - disc
- Gearbox
- 6-speed
- Top Speed
- 282.8 km/h (175.7 mph)
- Bore X Stroke
- 73.7 x 43.2 mm (2.9 x 1.7 inches)
- Compression
- 12.0:1
- Displacement
- 748.93 ccm (45.70 cubic inches)
- Cooling System
- Liquid
- Engine Details
- In-line four, four-stroke
- Dry Weight
- 191.0 kg (421.1 pounds)
- Fuel Capacity
- 17.41 litres (4.60 gallons)
- Overall Width
- 685 mm (27.0 inches)
- Ground Clearance
- 130 mm (5.1 inches)
- Power Weight Ratio
- 0.7070 HP/kg
- Trail
- 98 mm (3.9 inches)
- Rear Tyre
- 190/50-ZR17
- Frame Type
- Mo Steel
- tubular trellis (
- G
- welded) and aluminium alloy
- Front Tyre
- 120/65-ZR17
- Rear Brakes
- Single disc
- Front Brakes
- Double disc
- Rear Suspension
- Progressive, single shock absorber with rebound compression damping and spring preload
- Front Suspension
- Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment
