Back to Bike FinderYears: 2010 · 2009
2009Sportbike

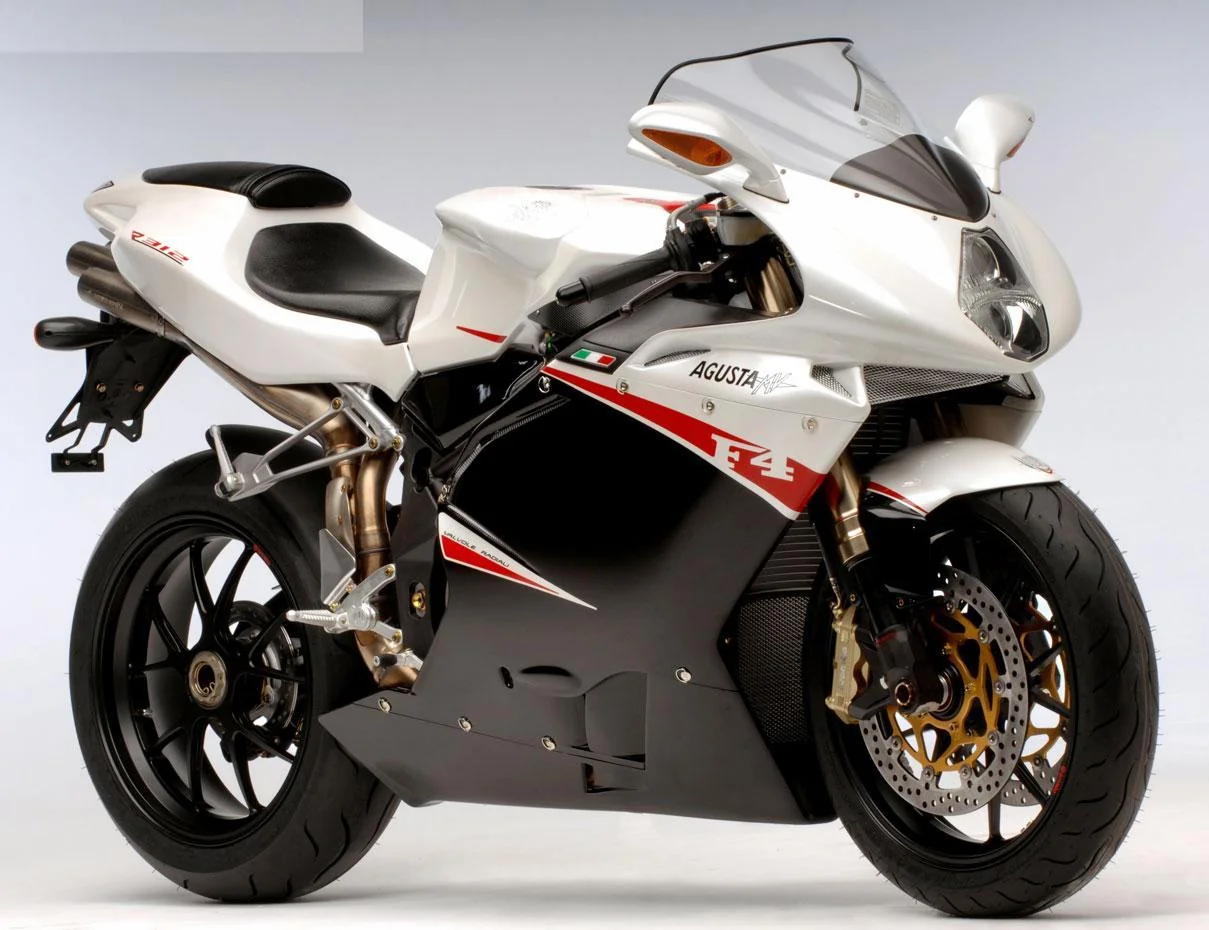

MV Agusta F4 R312
Key specifications
Engine
998 cc
Power
183 HP
Torque
115 Nm
Weight
192 kg
Fuel type
petrol
Fuel capacity
5.6 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- MV Agusta
- Model
- F4 R312
- Category
- Sport
- Starter
- Electric
- Color Options
- Gray/red, pearl/black
- Power
- 183.00 HP (133.6 kW)) @ 12400 RPM
- Max Rpm
- 13000
- Torque
- 115.00 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 10000 RPM
- Gearbox
- 6-speed
- Top Speed
- 300.0 km/h (186.4 mph)
- Fuel System
- Injection
- . “
- Weber Marelli
- ” 5
- M
- ignition - injection integrated system; induction discharge electronic ignition, “
- Multipoint
- ” sequential timed electronic injection
- Bore X Stroke
- 76.0 x 55.0 mm (3.0 x 2.2 inches)
- Compression
- 13.1:1
- Displacement
- 998.00 ccm (60.90 cubic inches)
- Cooling System
- Liquid
- Engine Details
- In-line four, four-stroke
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Dry Weight
- 192.0 kg (423.3 pounds)
- Seat Height
- 810 mm (31.9 inches) If adjustable, lowest setting.
- Fuel Capacity
- 21.00 litres (5.55 gallons)
- Overall Width
- 685 mm (27.0 inches)
- Overall Length
- 2,007 mm (79.0 inches)
- Ground Clearance
- 130 mm (5.1 inches)
- Power Weight Ratio
- 0.9531 HP/kg
- Reserve Fuel Capacity
- 4.00 litres (1.06 gallons)
- Trail
- 104 mm (4.1 inches)
- Rear Tyre
- 190/55-ZR17
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single disc
- Front Brakes
- Double disc
- Rear Suspension
- Progressive, single shock absorber with rebound compression damping and spring preload
- Front Suspension
- Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment
- Rear Wheel Travel
- 120 mm (4.7 inches)
- Front Wheel Travel
- 129 mm (5.1 inches)
- Rear Brakes Diameter
- 210 mm (8.3 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Gray/redpearl/black
