2009Sportbike

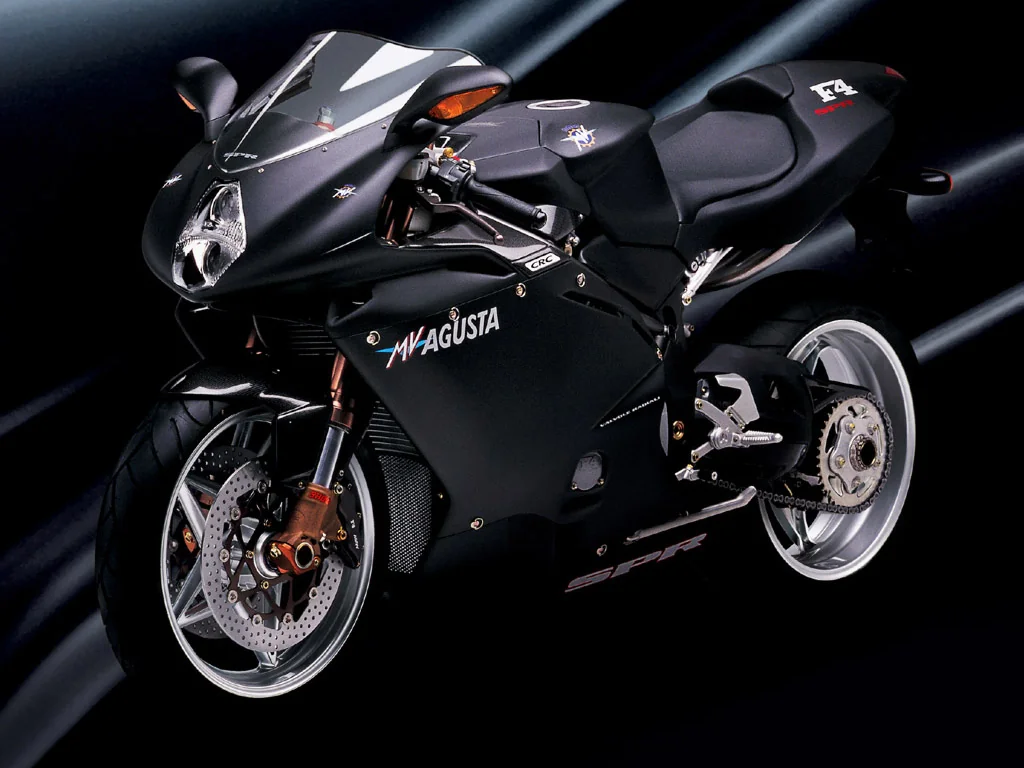

MV Agusta F4 SPR
Key specifications
Engine
749 cc
Power
146 HP
Torque
85 Nm
Fuel type
petrol
Fuel capacity
5.6 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- MV Agusta
- Model
- F4 SPR
- Category
- Sport
- Starter
- Electric
- Comments
- Special edition bike.
- Color Options
- Black
- Power
- 146.00 HP (106.6 kW)) @ 12900 RPM
- Clutch
- Multidisk in oil bath
- Torque
- 85.00 Nm (8.7 kgf-m or 62.7 ft.lbs) @ 10600 RPM
- Gearbox
- 6-speed
- Fuel System
- Injection
- . “
- Weber Marelli
- ” 1,6
- M
- ignition - injection integrated system; induction discharge electronic ignition,“
- Multipoint
- ” electronic injection
- Bore X Stroke
- 73.8 x 43.8 mm (2.9 x 1.7 inches)
- Compression
- 13.0:1
- Displacement
- 749.00 ccm (45.70 cubic inches)
- Engine Details
- In-line four, four-stroke
- Exhaust System
- Euro 3
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Seat Height
- 810 mm (31.9 inches) If adjustable, lowest setting.
- Fuel Capacity
- 21.00 litres (5.55 gallons)
- Overall Width
- 685 mm (27.0 inches)
- Reserve Fuel Capacity
- 4.00 litres (1.06 gallons)
- Rear Tyre
- 190/50-ZR17
- Frame Type
- Mo Steel
- tubular trellis.
- Thermoplastic
- and carbon fiber fairings.
- Front Tyre
- 120/65-ZR17
- Rear Brakes
- Single disc
- Front Brakes
- Double disc
- Rear Suspension
- Progressive monoshock
- Front Suspension
- E
- -
- N
- ” telescopic hydraulic fork with rebound-compression damping and spring preload adjustment
- Rear Wheel Travel
- 118 mm (4.6 inches)
- Front Wheel Travel
- 120 mm (4.7 inches)
- Rear Brakes Diameter
- 221 mm (8.7 inches)
- Front Brakes Diameter
- 310 mm (12.2 inches)
Available colors
Black
