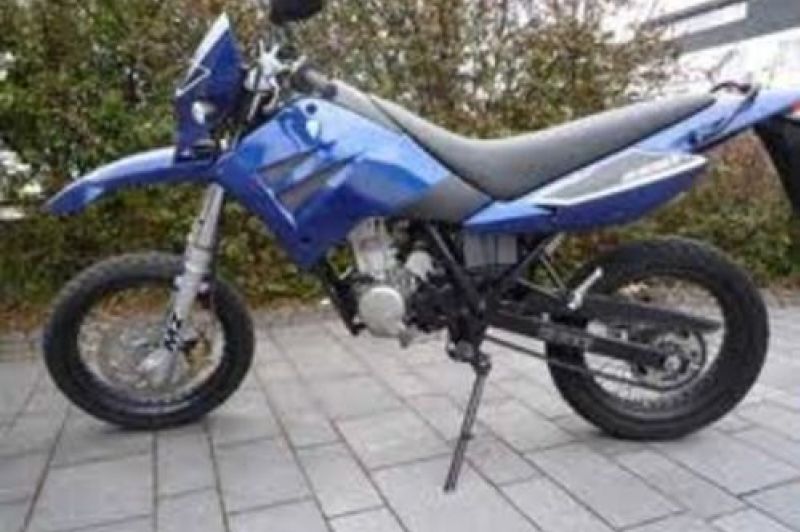

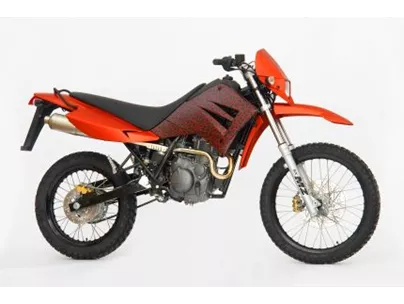

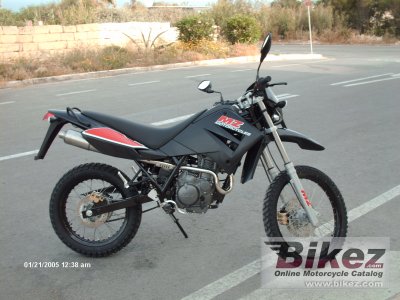

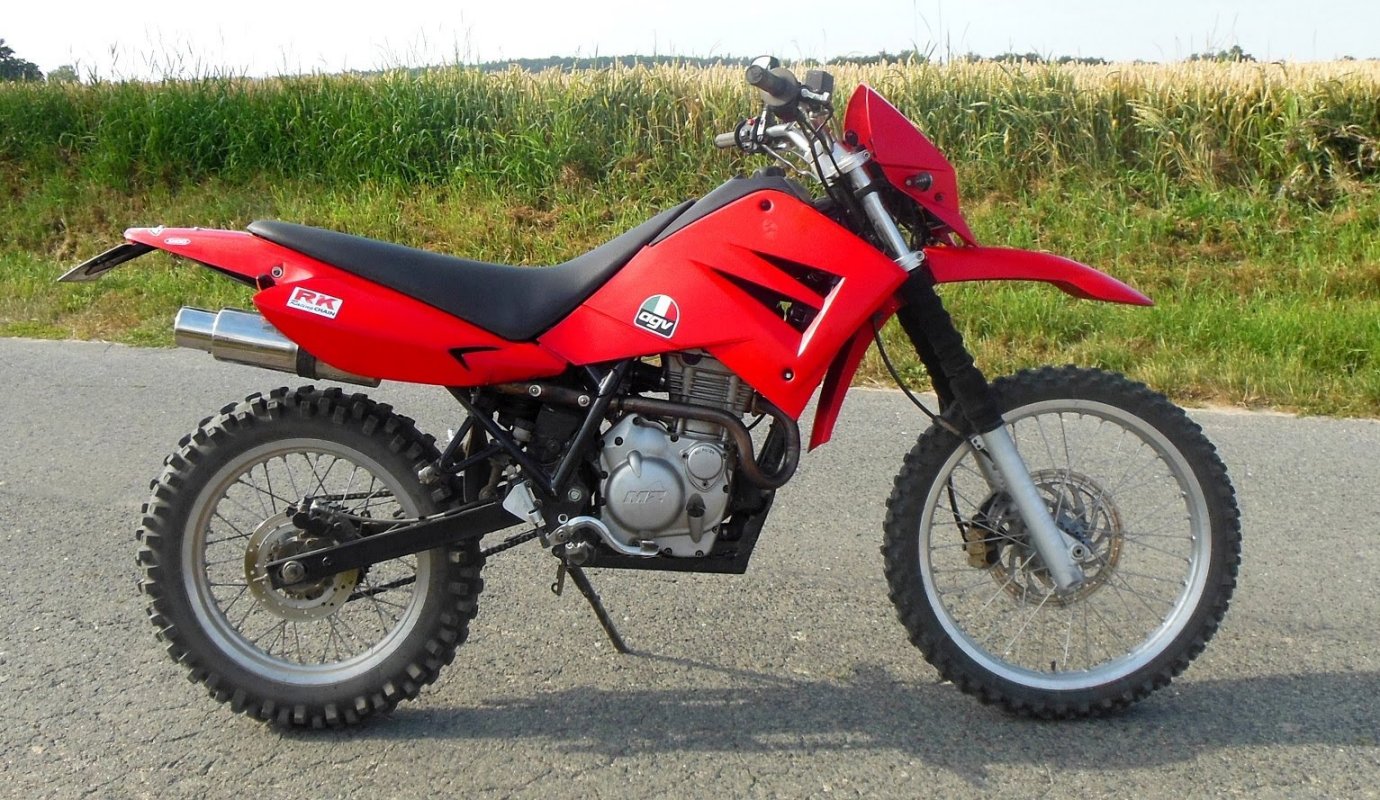

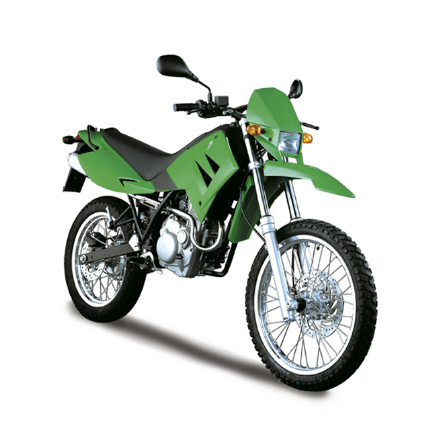

MZ 125 SX
2006Off-road

MZ 125 SX

Key specifications

Engine
125 cc
Weight
92 kg
Fuel type
petrol
Fuel capacity
2.0 L
Transmission
6-speed
Seat height
36 mm
Front brakes
Single disc
Rear brakes
Single disc

Overview

Introducing the 2006 KTM 125 SX, a stalwart in the world of cross-motocross machines that sets the standard for lightweight performance and agile handling. This bike is not just another entry in KTM's impressive lineup; it is a culmination of years of engineering excellence designed for riders who crave both the thrill of competition and the joy of trail riding. With its two-stroke single-cylinder engine, the 125 SX is an agile beast that strikes the perfect balance between power, weight, and maneuverability—ideal for both budding motocross racers and experienced riders looking for a spirited ride. At the heart of the 125 SX lies a potent 124.80 ccm engine that delivers exhilarating performance through a well-tuned Keihin PWK 39 carburettor. With a bore and stroke measurement of 54.0 x 54.5 mm, this engine is engineered to provide a responsive power band that excels in acceleration and top-end speed. Coupled with a 6-speed gearbox and a hydraulic wet multi-disc clutch, riders can seamlessly shift through gears, maintaining control as they navigate tough tracks or rugged trails. The liquid cooling system ensures optimal engine temperature, allowing for sustained performance even during intense rides. The 2006 KTM 125 SX is crafted for agility and stability, thanks to its central double-cradle frame made from 25 CrMo4 steel. This construction provides a perfect blend of strength and lightweight design, weighing in at just 92.4 kg (203.7 lbs). The WP-USD front suspension offers a generous 300 mm travel, while the WP-PDS shock absorber at the rear contributes an impressive 335 mm travel, ensuring that the bike can handle jumps and rough terrain with ease. With a ground clearance of 390 mm and a seat height of 925 mm, the 125 SX is designed to fit a wide range of riders, providing confidence as they tackle demanding courses. **

Pros

  • Lightweight and Agile: Weighing only 92.4 kg, the bike offers superior handling and maneuverability, crucial for competitive racing and tight trails.
  • Responsive Engine: The two-stroke engine delivers excellent acceleration and a thrilling riding experience, perfect for those who crave speed.
  • Advanced Suspension: With top-notch suspension technology, the 125 SX absorbs shocks efficiently, providing a smooth ride over rough terrain.

Cons

  • Two-Stroke Maintenance: The two-stroke engine requires more frequent maintenance and tuning compared to four-stroke counterparts.
  • Kick Starter Only: The absence of an electric starter may be a drawback for some riders, especially in challenging terrains.
  • Limited Fuel Capacity: With only 7.50 litres of fuel capacity, riders may need to stop more frequently during long rides or races.

Technical details

Source specification data

Make
KTM
Model
125 SX
Category
Cross-motocross
Starter
Kick
Clutch
Wet multi-disc clutch, operated hydraulically
Gearbox
6-speed
Ignition
Kokusan digital 2K-1
Fuel System
Carburettor. Keihin PWK 39
Bore X Stroke
54.0 x 54.5 mm (2.1 x 2.1 inches)
Displacement
124.80 ccm (7.62 cubic inches)
Cooling System
Liquid
Engine Details
Single cylinder, two-stroke
Exhaust System
Aluminum
Lubrication System
Mixture oil lubrication 1:40
Dry Weight
92.4 kg (203.7 pounds)
Seat Height
925 mm (36.4 inches) If adjustable, lowest setting.
Fuel Capacity
7.50 litres (1.98 gallons)
Ground Clearance
390 mm (15.4 inches)
Rake
27.0°
Rear Tyre
100/90-19
Frame Type
Central double-cradle-type 25 CrMo4
Front Tyre
80/100-21
Rear Brakes
Single disc
Front Brakes
Single disc
Rear Suspension
WP-PDS shock absorber
Front Suspension
WP-USD 48 mm (1.89 inches)
Rear Wheel Travel
335 mm (13.2 inches)
Front Wheel Travel
300 mm (11.8 inches)
Rear Brakes Diameter
220 mm (8.7 inches)
Front Brakes Diameter
260 mm (10.2 inches)
