Back to Bike FinderYears: 2024
2024Classic

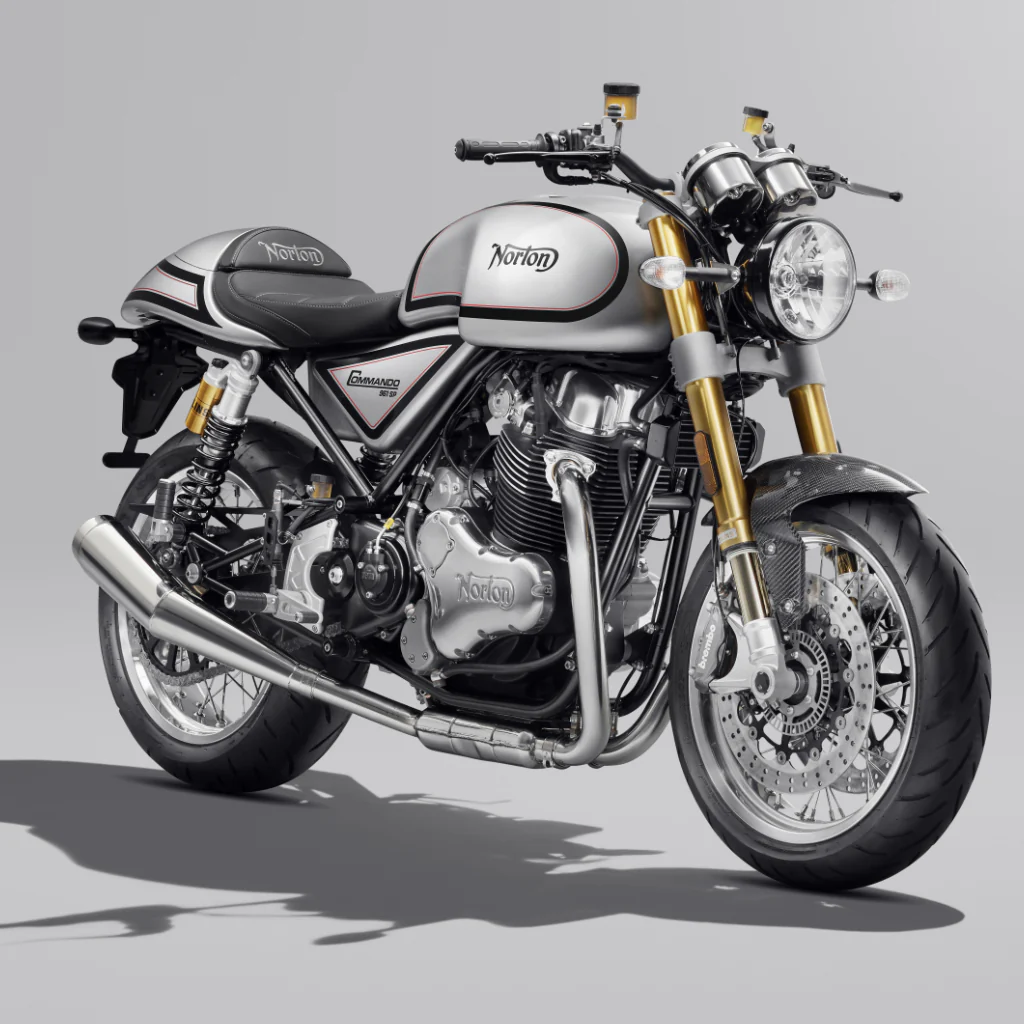

Norton Commando 961 LE Manx
Key specifications
Torque
81 Nm
Fuel type
petrol
Fuel capacity
4.0 L
Transmission
5-speed
Seat height
32 mm
Front brakes
Double disc. Brembo system, twin semi-floating hi carbon stainless steel discs, Brembo 4 piston callipers. ABS.
Rear brakes
Single disc. Brembo system, 2 piston, ABS.
Technical details
Source specification data
- Make
- Norton
- Model
- Commando 961 LE Manx
- Category
- Classic
- Starter
- Electric
- Comments
- Limited edition.
- Instruments
- Analogue speedo and tachometer
- Color Options
- Silver
- Clutch
- Wet multi-plate
- Torque
- 81.0 Nm (8.3 kgf-m or 59.7 ft.lbs) @ 6300 RPM
- Gearbox
- 5-speed
- Ignition
- Digital
- Driveline
- Constant mesh
- Fuel System
- Injection
- .
- Crank
- -fired, electronic injection
- Bore X Stroke
- 88.0 x 79.0 mm (3.5 x 3.1 inches)
- Compression
- 10.1:1
- Cooling System
- Oil & air
- Engine Details
- Push-rod valve actuation, 3 bearing crank and balancer shaft.
- Exhaust System
- Stainless steel exhaust system with multiple 3-way catalytic converter
- Lubrication System
- Dry sump
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Chain (final drive)
- Seat Height
- 810 mm (31.9 inches) If adjustable, lowest setting.
- Fuel Capacity
- 15.00 litres (3.96 US gallons)
- Weight Incl Oil Gas Etc
- 230.0 kg (507.1 pounds)
- Rake
- 24.5°
- Seat
- Colour-matched seat cowl
- Trail
- 99 mm (3.9 inches)
- Wheels
- Wire spoked. Dunlop Sportmax tyres.
- Rear Tyre
- 180/55-ZR17
- Frame Type
- Steel tubular with integral oil tank.
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single
- disc.
- Brembo
- system, 2 piston,
- S
- .
- Front Brakes
- Double
- disc.
- Brembo
- system, twin semi-floating hi carbon stainless steel discs,
- Brembo
- 4 piston callipers.
- S
- .
- Rear Suspension
- Twin-sided steel swing arm.43mm Öhlins upside-down forks – adjustable for preload, compression and rebound damping
- Front Suspension
- 43mm Ohlins upside-down forks - adjustable preload, compression and rebound damping
- Rear Wheel Travel
- 100 mm (3.9 inches)
- Front Wheel Travel
- 115 mm (4.5 inches)
- Rear Brakes Diameter
- 240 mm (9.4 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Silver
