2015Classic

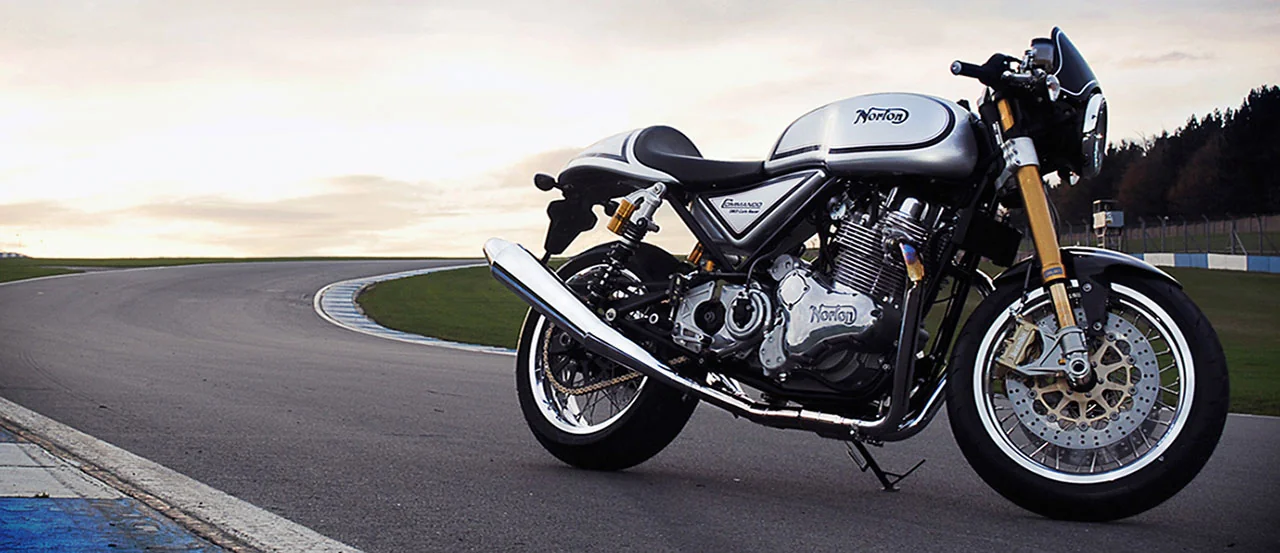

Norton Commando 961 SF
Key specifications
Engine
961 cc
Power
80 HP
Torque
90 Nm
Weight
188 kg
Fuel type
petrol
Fuel capacity
4.5 L
Transmission
5-speed
Seat height
32 mm
Front brakes
Double disc. Full Brembo system, twin semi-floating hi carbon stainless steel discs, Brembo 4 piston “Gold Line” axial callipers
Rear brakes
Single disc. Full Brembo system, 2 piston
Technical details
Source specification data
- Make
- Norton
- Model
- Commando 961 SF
- Category
- Classic
- Starter
- Electric
- Comments
- Carbon front mud guard, chain guard, rear wheel hugger, rear number plate hugger, headlight mounting, front and rear wheel.
- Instruments
- Norton electronic analogue speedo and tachometer
- Color Options
- Black, red, white, green
- Power
- 80.00 HP (58.4 kW)) @ 7700 RPM
- Clutch
- Wet multi-plate hydraulic lifter
- Torque
- 90.00 Nm (9.2 kgf-m or 66.4 ft.lbs) @ 6000 RPM
- Gearbox
- 5-speed
- Ignition
- Crank fired electronic
- Driveline
- Constant
- mesh 5 speed.
- Final
- drive: 525 “
- O
- ” ring chain
- Engine Type
- Push-rod valve actuation, 3 bearing crank and balancer shaft.
- Fuel System
- Injection. EFI
- Bore X Stroke
- 88.0 x 79.0 mm (3.5 x 3.1 inches)
- Compression
- 10.1:1
- Displacement
- 961.00 ccm (58.64 cubic inches)
- Cooling System
- Air
- Engine Details
- Twin, four-stroke
- Exhaust System
- Black chrome front pipes and reverse cone silencers
- Emission Details
- Multiple 3 way catalytic converter.
- Lubrication System
- Dry sump
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Chain
- Dry Weight
- 188.0 kg (414.5 pounds)
- Seat Height
- 813 mm (32.0 inches) If adjustable, lowest setting.
- Oil Capacity
- 3.30 litres (0.22 quarts)
- Fuel Capacity
- 17.00 litres (4.49 gallons)
- Power Weight Ratio
- 0.4255 HP/kg
- Weight Incl Oil Gas Etc
- 203.0 kg (447.5 pounds)
- Rake
- 24.5°
- Seat
- Optional dual seat
- Trail
- 99 mm (3.9 inches)
- Wheels
- Black Alloy Rims
- Rear Tyre
- 180/55-17
- Frame Type
- Steel tubular with integral oil tank
- Front Tyre
- 120/70-17
- Rear Brakes
- Single
- disc.
- Full Brembo
- system, 2 piston
- Front Brakes
- Double
- disc.
- Full Brembo
- system, twin semi-floating hi carbon stainless steel discs,
- Brembo
- 4 piston “
- Gold Line
- ” axial callipers
- Rear Suspension
- Ohlins
- Front Suspension
- Ohlins USD
- Rear Wheel Travel
- 110 mm (4.3 inches)
- Front Wheel Travel
- 115 mm (4.5 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Blackredwhitegreen
