Back to Bike FinderYears: 2012
2010Classic

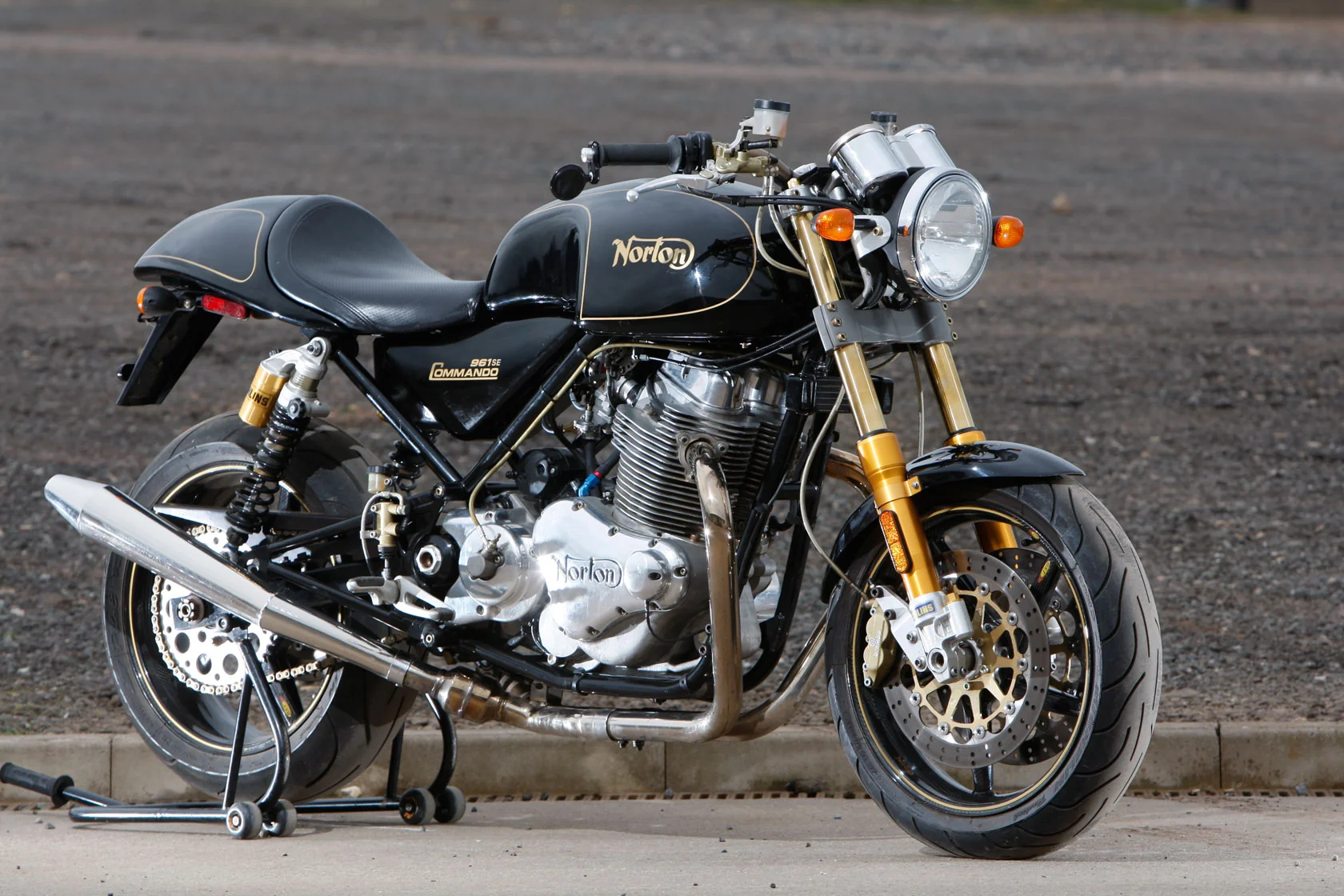

Norton Commando 961SE
Key specifications
Engine
961 cc
Power
80 HP
Torque
90 Nm
Weight
188 kg
Fuel type
petrol
Fuel capacity
4.5 L
Transmission
5-speed
Seat height
32 mm
Front brakes
Double disc. Full Brembo system, twin semi-floating hi carbon stainless steel discs, Brembo 4 piston “Gold Line” axial callipers
Rear brakes
Single disc. Full Brembo system, 2 piston “Gold Line” calliper
Technical details
Source specification data
- Make
- Norton
- Model
- Commando 961SE
- Category
- Classic
- Starter
- Electric
- Comments
- New
- engine developed by
- Norton
- and
- F1
- engine builders,
- T
- of
- Oxfordshire
- ,
- England
- .
- Parallel
- twin with push-rod valve actuation, dry sump, 3 bearing crank and balancer shaft.
- Carbon
- fiber wheels.
- Color Options
- Black/gold
- Power
- 80.00 HP (58.4 kW)) @ 6500 RPM
- Clutch
- Wet multi-plate hydraulic lifter
- Torque
- 90.00 Nm (9.2 kgf-m or 66.4 ft.lbs) @ 5200 RPM
- Gearbox
- 5-speed
- Ignition
- Crank fired electronic
- Fuel System
- Injection
- Bore X Stroke
- 88.0 x 79.0 mm (3.5 x 3.1 inches)
- Compression
- 10.1:1
- Displacement
- 961.00 ccm (58.64 cubic inches)
- Cooling System
- Air
- Engine Details
- Twin, four-stroke
- Exhaust System
- 1 3/4 inch header system with merged collector and twin mufflers with catalytic converters. Euro 3.
- Lubrication System
- Dry sump
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Chain
- Dry Weight
- 188.2 kg (415.0 pounds)
- Seat Height
- 813 mm (32.0 inches) If adjustable, lowest setting.
- Oil Capacity
- 3.30 litres (0.22 quarts)
- Fuel Capacity
- 17.03 litres (4.50 gallons)
- Power Weight Ratio
- 0.4250 HP/kg
- Rake
- 24.5°
- Trail
- 99 mm (3.9 inches)
- Rear Tyre
- 180/55-17
- Frame Type
- Steel tubular with integral oil tank
- Front Tyre
- 120/70-17
- Rear Brakes
- Single
- disc.
- Full Brembo
- system, 2 piston “
- Gold Line
- ” calliper
- Front Brakes
- Double
- disc.
- Full Brembo
- system, twin semi-floating hi carbon stainless steel discs,
- Brembo
- 4 piston “
- Gold Line
- ” axial callipers
- Rear Suspension
- Ohlins reservoir-style twin shocks
- Front Suspension
- 43mm Ohlins RWU
- Rear Wheel Travel
- 110 mm (4.3 inches)
- Front Wheel Travel
- 115 mm (4.5 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Black/gold
