Back to Bike FinderYears: 2024
2024Sportbike

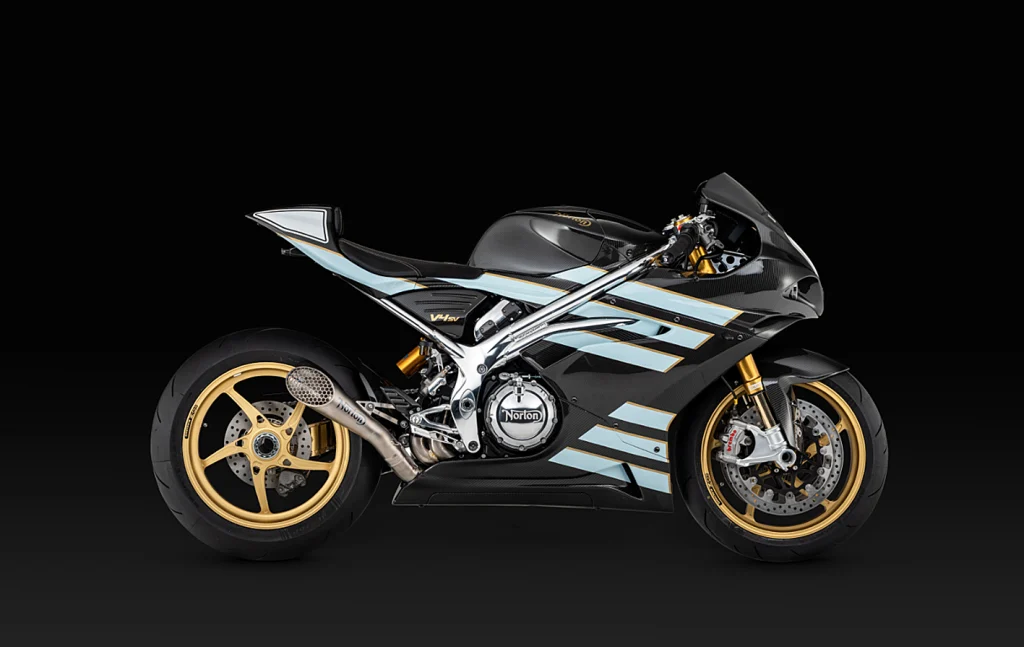

Norton V4SV 588
Key specifications
Engine
1200 cc
Torque
125 Nm
Weight
193 kg
Fuel type
petrol
Fuel capacity
4.0 L
Transmission
6-speed
Seat height
33 mm
Front brakes
Double disc. Radially mounted Brembo monobloc calipers. Brembo discs, and Brembo master cylinder.
Rear brakes
Single disc. Brembo caliper and master-cylinder.
Technical details
Source specification data
- Make
- Norton
- Model
- V4SV 588
- Category
- Sport
- Light
- LED lighting
- Starter
- Electric
- Comments
- Limited
- edition.
- Carbon
- fibre fuel tank and body panels.
- Traction
- -control, wheelie control, launch control and cruise control.
- Wet
- ,
- Road
- and
- Sport
- ride modes.
- Instruments
- Full-colour 6-inch TFT display
- Color Options
- Black/blue
- Clutch
- Slipper clutch
- Torque
- 125.0 Nm (12.7 kgf-m or 92.2 ft.lbs) @ 9000 RPM
- Gearbox
- 6-speed
- Engine Type
- V4, four-stroke
- Fuel System
- Injection
- . 8-fuel injectors.
- Full
- drive-by-wire system
- Bore X Stroke
- 82.0 x 56.8 mm (3.2 x 2.2 inches)
- Compression
- 13.6:1
- Displacement
- 1200.0 ccm (73.22 cubic inches)
- Cooling System
- Liquid
- Engine Details
- V4
- .
- Titanium
- inlet valves.
- Chain
- - driven cams with idler gear for reduced engine height.
- Emission Details
- Euro 5
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain (final drive)
- Dry Weight
- 193.0 kg (425.5 pounds)
- Seat Height
- 836 mm (32.9 inches) If adjustable, lowest setting.
- Fuel Capacity
- 15.00 litres (3.96 US gallons)
- Power Weight Ratio
- 0.9585 HP/kg
- Rake
- 23.9°
- Wheels
- 5-spoke, gold
- Rear Tyre
- 6.00-17
- Frame Type
- Aluminium
- tubular chassis.
- Aerospace
- 5-axis
- C
- machined outriggers and headstock.
- Frame
- is hand
- G
- welded.
- Front Tyre
- 3.50-17
- Rear Brakes
- Single
- disc.
- Brembo
- caliper and master-cylinder.
- Front Brakes
- Double
- disc.
- Radially
- mounted
- Brembo
- monobloc calipers.
- Brembo
- discs, and
- Brembo
- master cylinder.
- Rear Suspension
- Ohlins TTXGP Norton bespoke fully adjustable rear shock.
- Front Suspension
- X30
- system front fork.
- Fully
- adjustable.
- Rear Brakes Diameter
- 245 mm (9.6 inches)
- Front Brakes Diameter
- 330 mm (13.0 inches)
Available colors
Black/blue
