1929Allround

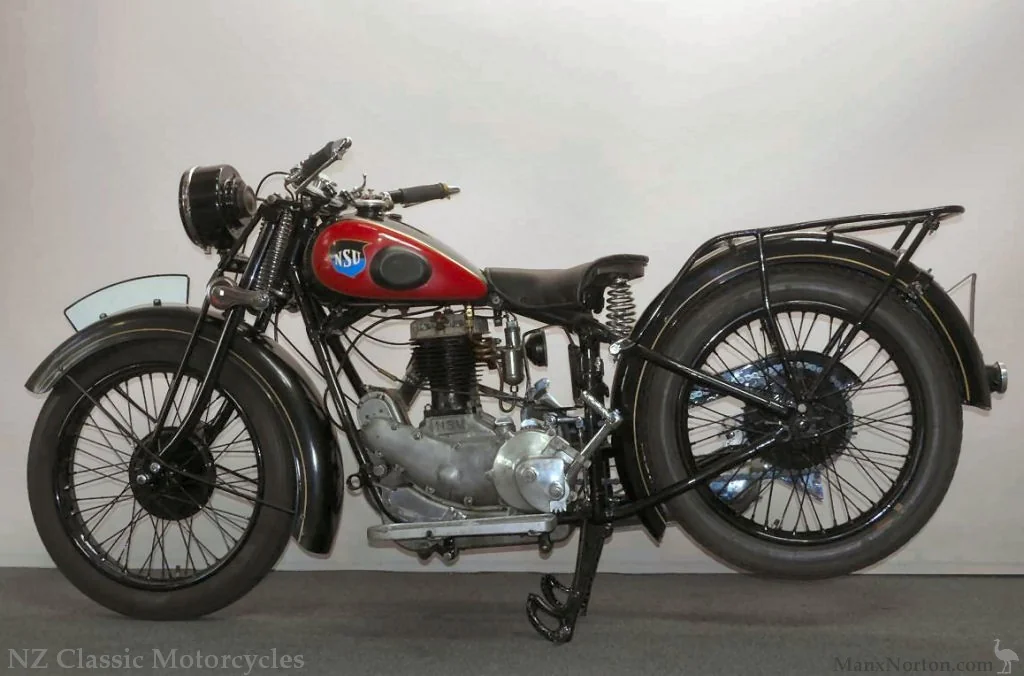

NSU 501T
Key specifications
Engine
494 cc
Power
11 HP
Weight
158 kg
Fuel type
petrol
Fuel capacity
3.2 L
Transmission
3-speed
Front brakes
Expanding brake (drum brake)
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- NSU
- Model
- 501T
- Category
- Allround
- Starter
- Kick
- Power
- 11.00 HP (8.0 kW)) @ 4000 RPM
- Gearbox
- 3-speed
- Ignition
- Magneto
- Top Speed
- 100.0 km/h (62.1 mph)
- Fuel System
- Carburettor
- Bore X Stroke
- 80.0 x 99.0 mm (3.1 x 3.9 inches)
- Displacement
- 494.00 ccm (30.14 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Transmission Type Final Drive
- Chain
- Dry Weight
- 158.0 kg (348.3 pounds)
- Fuel Capacity
- 12.00 litres (3.17 gallons)
- Overall Width
- 830 mm (32.7 inches)
- Overall Height
- 1,040 mm (40.9 inches)
- Overall Length
- 2,100 mm (82.7 inches)
- Power Weight Ratio
- 0.0696 HP/kg
- Wheels
- Spoked
- Rear Tyre
- 3.50-26
- Frame Type
- Double steel
- Front Tyre
- 3.50-26
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Expanding brake (drum brake)
