1937Allround

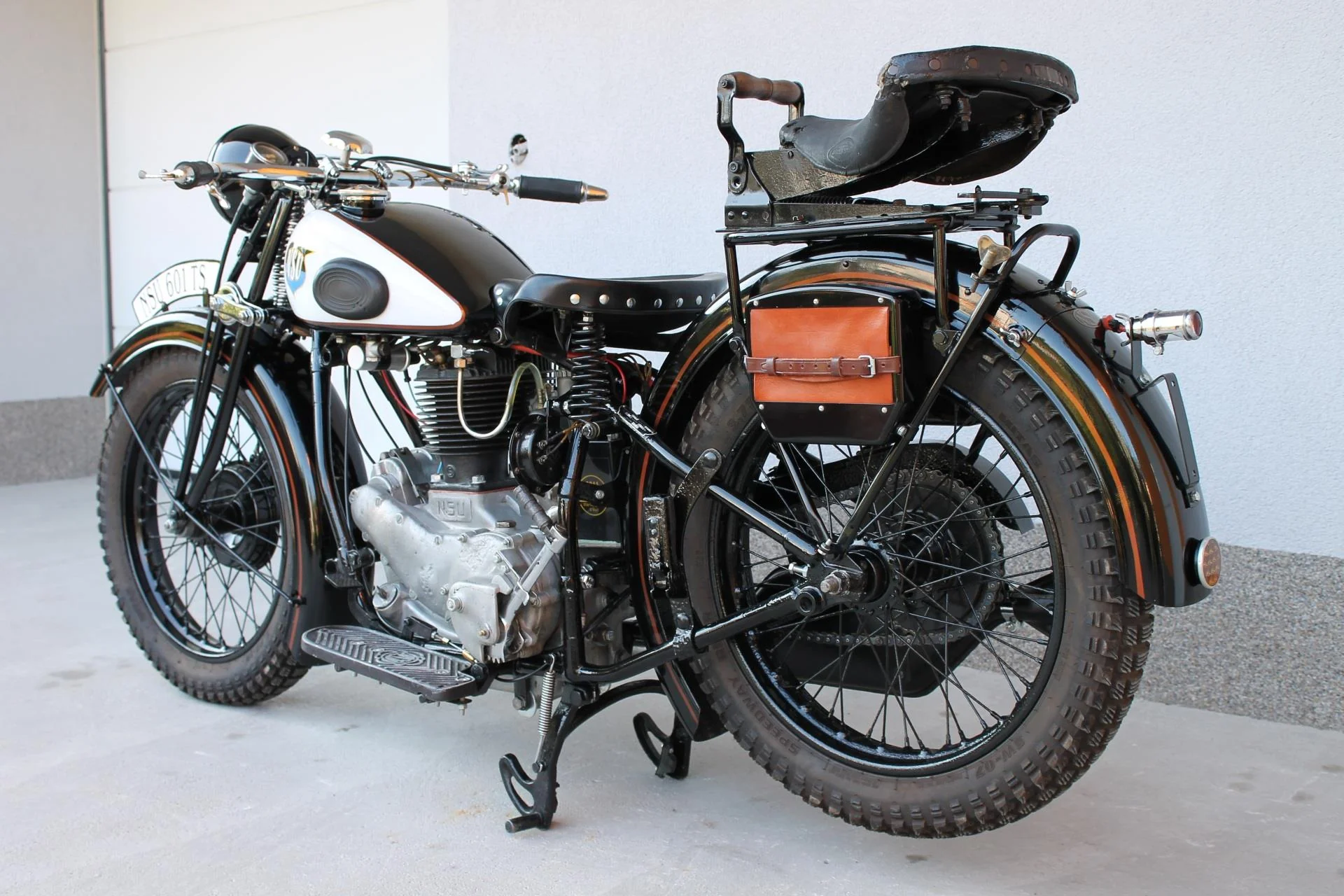

NSU 601 TS
Key specifications
Engine
592 cc
Power
16 HP
Weight
165 kg
Fuel type
petrol
Front brakes
Expanding brake (drum brake)
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- NSU
- Model
- 601 TS
- Category
- Allround
- Starter
- Kick
- Power
- 16.00 HP (11.7 kW)) @ 4670 RPM
- Ignition
- Magneto Bosch
- Fuel System
- Carburettor. Amac
- Bore X Stroke
- 87.5 x 99.0 mm (3.4 x 3.9 inches)
- Displacement
- 592.00 ccm (36.12 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Transmission Type Final Drive
- Chain
- Dry Weight
- 165.0 kg (363.8 pounds)
- Overall Width
- 830 mm (32.7 inches)
- Overall Height
- 1,040 mm (40.9 inches)
- Overall Length
- 2,100 mm (82.7 inches)
- Power Weight Ratio
- 0.0970 HP/kg
- Wheels
- Spoked
- Rear Tyre
- 4-27
- Frame Type
- Double steel
- Front Tyre
- 3.50-26
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Expanding brake (drum brake)
