1958Scooter

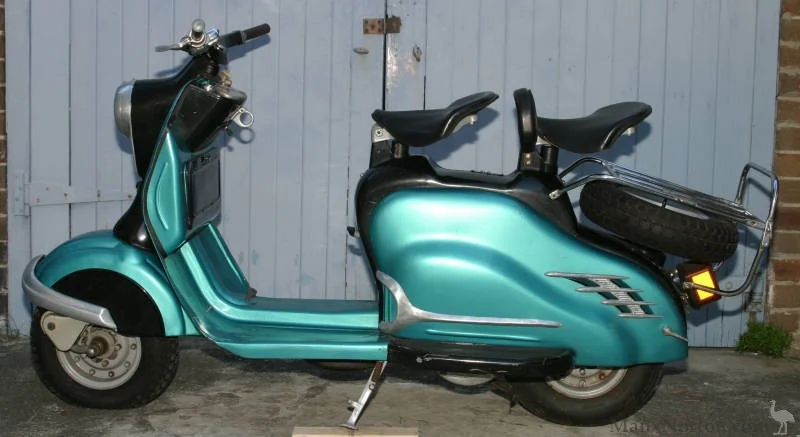

NSU Prima D
Key specifications
Engine
146 cc
Power
6 HP
Weight
123 kg
Fuel type
petrol
Fuel capacity
1.9 L
Transmission
3-speed
Front brakes
Expanding brake (drum brake)
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- NSU
- Model
- Prima D
- Category
- Scooter
- Starter
- Electric
- Power
- 6.20 HP (4.5 kW)) @ 5200 RPM
- Gearbox
- 3-speed
- Ignition
- Battery
- Top Speed
- 80.0 km/h (49.7 mph)
- Fuel System
- Carburettor. Bing AJ
- Bore X Stroke
- 57.0 x 58.0 mm (2.2 x 2.3 inches)
- Compression
- 6.0:1
- Displacement
- 146.00 ccm (8.91 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, two-stroke
- Dry Weight
- 123.0 kg (271.2 pounds)
- Fuel Capacity
- 7.30 litres (1.93 gallons)
- Overall Width
- 680 mm (26.8 inches)
- Overall Height
- 950 mm (37.4 inches)
- Overall Length
- 1,910 mm (75.2 inches)
- Power Weight Ratio
- 0.0504 HP/kg
- Seat
- Two single seats
- Wheels
- Spoked
- Rear Tyre
- 4-8
- Front Tyre
- 4-8
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Expanding brake (drum brake)
- Rear Suspension
- Swingarm
- Front Suspension
- Telescopic
