1960Scooter

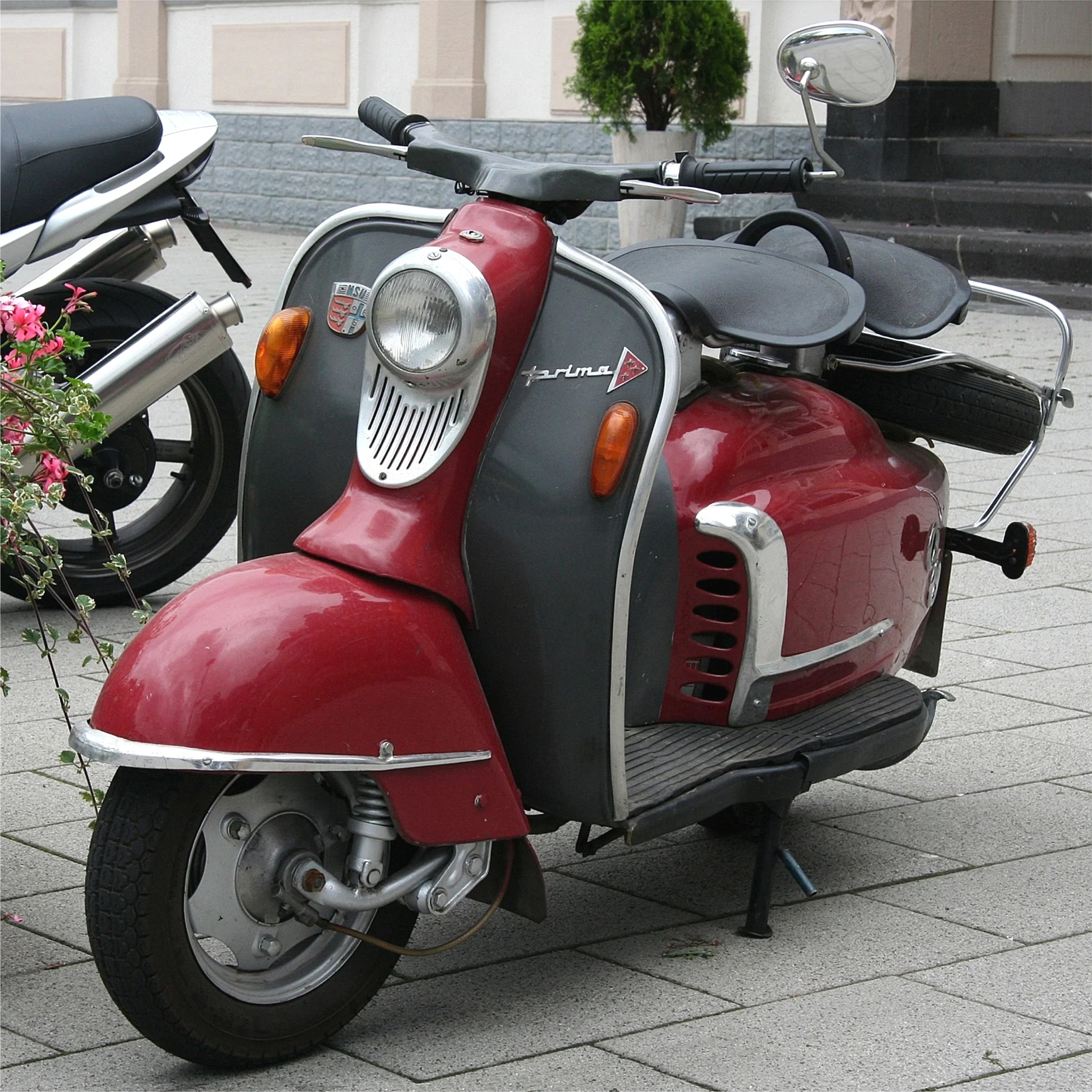

NSU Prima III K
Key specifications
Engine
146 cc
Power
8 HP
Weight
131 kg
Fuel type
petrol
Fuel capacity
3.2 L
Front brakes
Expanding brake (drum brake)
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- NSU
- Model
- Prima III K
- Category
- Scooter
- Starter
- Kick
- Power
- 7.70 HP (5.6 kW)) @ 5200 RPM
- Top Speed
- 84.0 km/h (52.2 mph)
- Fuel System
- Carburettor
- Bore X Stroke
- 57.0 x 57.6 mm (2.2 x 2.3 inches)
- Compression
- 6.5:1
- Displacement
- 146.00 ccm (8.91 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, two-stroke
- Fuel Consumption
- 2.50 litres/100 km (40.0 km/l or 94.09 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Transmission Type Final Drive
- Shaft drive (cardan)
- Dry Weight
- 131.0 kg (288.8 pounds)
- Fuel Capacity
- 12.00 litres (3.17 gallons)
- Overall Width
- 650 mm (25.6 inches)
- Overall Height
- 965 mm (38.0 inches)
- Overall Length
- 1,780 mm (70.1 inches)
- Power Weight Ratio
- 0.0588 HP/kg
- Seat
- Two single seats
- Wheels
- Spoked
- Rear Tyre
- 3.50-10
- Front Tyre
- 3.50-10
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Expanding brake (drum brake)
