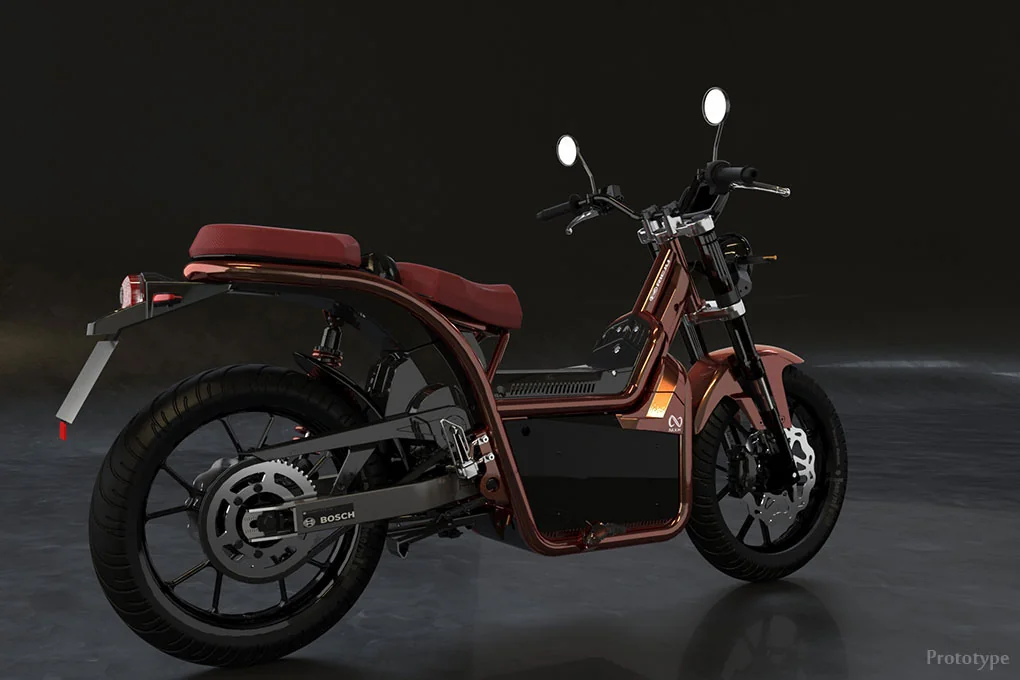

Nuuk Tracker L3E-A1

Key specifications

Power

14 HP

Torque

245 Nm

Weight

130 kg

Fuel type

electric

Seat height

31 mm

Front brakes

Single disc. Radial 4 piston calliper

Rear brakes

Single disc. Floating calliper

Technical details

Source specification data

Make: Nuuk
Model: Tracker L3E-A1
Category: Scooter

Starter

Electric

Comments

Spanish: brand.
Built: in cooperation with
Rieju: and
Bosch: .
Charging: time 1-5h.
On: -
Board: charger.
Range: 120 km.

Electrical

Titling: built-in type
Li: -ion battery, 100

Color Options

Back

Power: 14.08 HP (10.3 kW))
Torque: 245.00 Nm (25.0 kgf-m or 180.7 ft.lbs)
Top Speed: 105.0 km/h (65.2 mph)
Engine Type: Brushless DC
Cooling System: Air
Engine Details: Electric
Transmission Type Final Drive: Chain

Dry Weight: 130.0 kg (286.6 pounds)
Seat Height: 785 mm (30.9 inches) If adjustable, lowest setting.
Overall Width: 782 mm (30.8 inches)
Power Weight Ratio: 0.1083 HP/kg

Rear Tyre

130/70-17

Frame Type

Tubular double cradle beam

Front Tyre

100/80-17

Rear Brakes

Single disc. Floating calliper

Front Brakes

Single disc. Radial 4 piston calliper

Rear Suspension

Steel: swing-arm.
Single: shock absorber on left side.

Front Suspension

Telescopic fork

Rear Wheel Travel

90 mm (3.5 inches)

Front Wheel Travel

90 mm (3.5 inches)

Rear Brakes Diameter

220 mm (8.7 inches)

Front Brakes Diameter

280 mm (11.0 inches)

Available colors

Back
