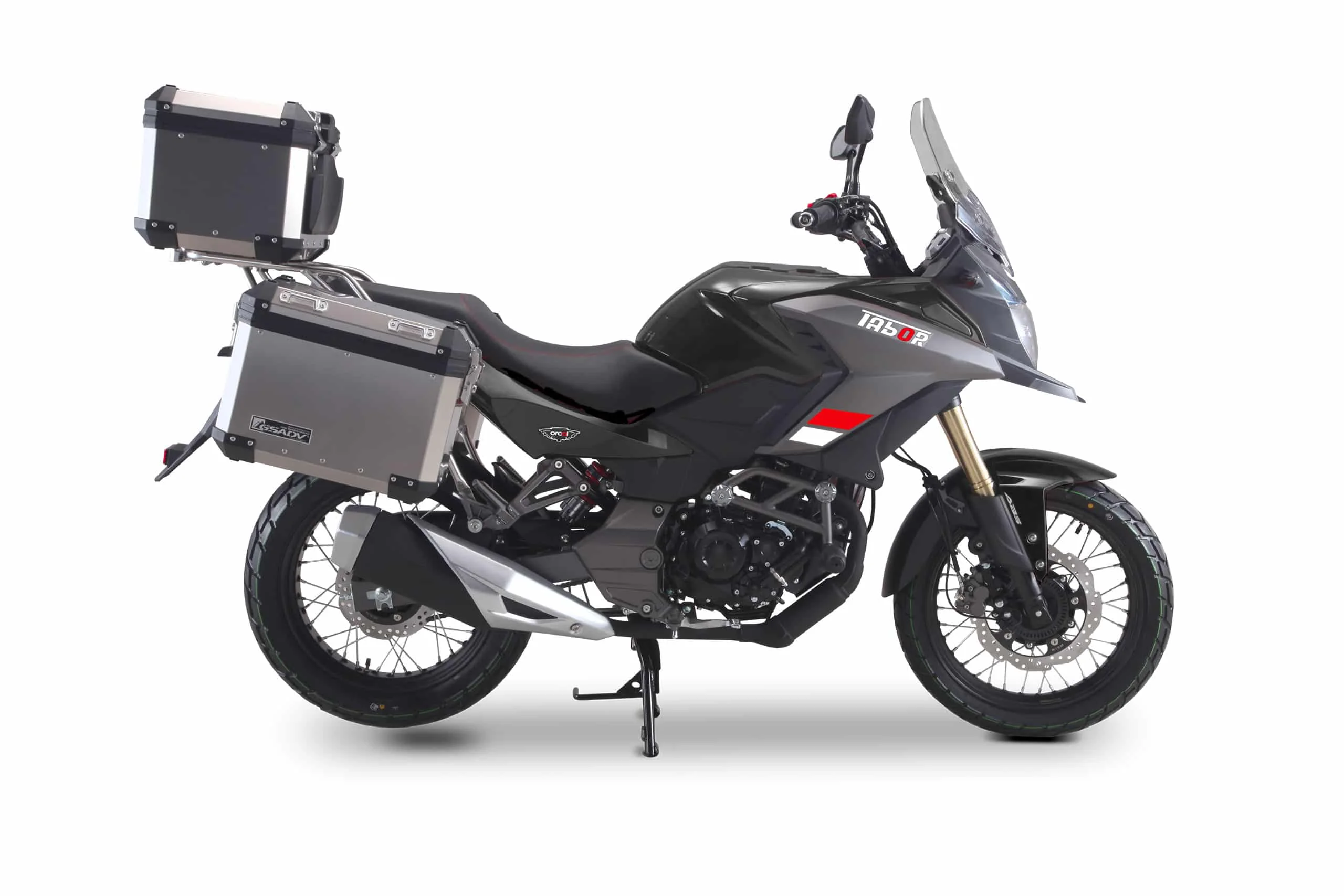

Orcal Tabor 125 Equipe

Key specifications

Torque

11 Nm

Weight

167 kg

Fuel type

petrol

Fuel capacity

3.7 L

Transmission

6-speed

Seat height

31 mm

Front brakes

Single disc. 2-piston calipers. ABS.

Rear brakes

Single disc. Single piston. ABS.

Technical details

Source specification data

Make: Orcal
Model: Tabor 125 Equipe
Category: Sport

Light: LED lights
Starter: Electric & kick
Comments: Windscreen. USB. French brand.
Electrical: 12V 9Ah battrey.
Instruments: 7-inch TFT Meter
Color Options: Black
Factory Warranty: 2 years
Carrying Capacity: Aluminium saddle bags and top box

Torque

11.2 Nm (1.1 kgf-m or 8.3 ft.lbs) @ 7000 RPM

Gearbox

6-speed

Ignition

CDI

Fuel System

Injection. Bosch

Bore X Stroke

54.0 x 54.0 mm (2.1 x 2.1 inches)

Compression

10.0:1

Cooling System

Liquid

Emission Details

Euro 5

Fuel Consumption

2.30 litres/100 km (43.5 km/l or 102.27 mpg)

Greenhouse Gases

O2: g/km. (
O2: -
Carbon: dioxide emission)

Lubrication System

Wet sump

Valves Per Cylinder

Transmission Type Final Drive

Chain (final drive)

Dry Weight: 167.0 kg (368.2 pounds)
Seat Height: 775 mm (30.5 inches) If adjustable, lowest setting.
Fuel Capacity: 14.00 litres (3.70 US gallons)
Overall Width: 812 mm (32.0 inches)
Overall Height: 1300 mm (51.2 inches)
Overall Length: 2125 mm (83.7 inches)
Ground Clearance: 160 mm (6.3 inches)
Power Weight Ratio: 0.0868 HP/kg

Wheels: Cast aluminium
Rear Tyre: 140/70-17
Frame Type: Tubular
Front Tyre: 110/70-17
Rear Brakes: Single disc. Single piston. ABS.
Front Brakes: Single disc. 2-piston calipers. ABS.
Rear Suspension: Monoshock, adjustable
Front Suspension: Telescopic fork
Rear Brakes Diameter: 210 mm (8.3 inches)
Front Brakes Diameter: 300 mm (11.8 inches)

Available colors

Black
