Back to Bike FinderYears: 2016
2016Other

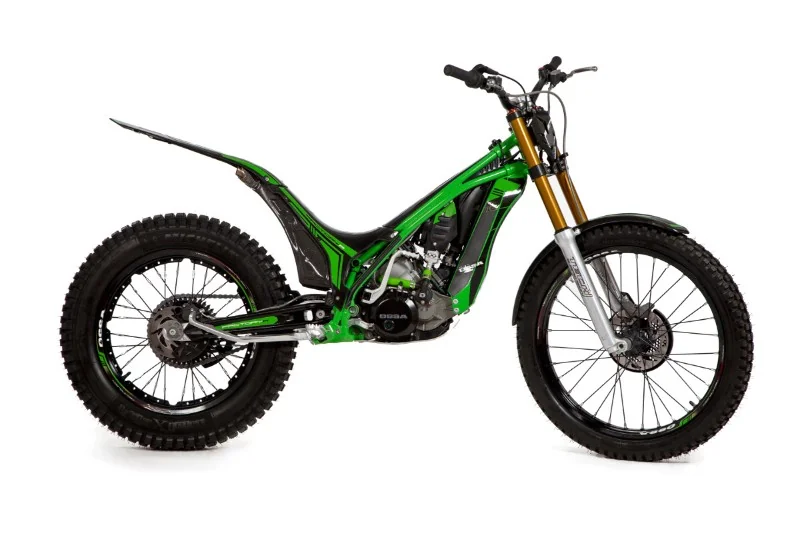

OSSA Factory R
Key specifications
Engine
294 cc
Weight
65 kg
Fuel type
petrol
Fuel capacity
0.7 L
Transmission
6-speed
Seat height
26 mm
Front brakes
Single disc. Four-piston calipers.
Rear brakes
Single disc. Two-piston calipers.
Technical details
Source specification data
- Make
- OSSA
- Model
- Factory R
- Category
- Trial
- Starter
- Kick
- Comments
- Spanish brand.
- Color Options
- Black/green
- Clutch
- Hydraulic control
- Gearbox
- 6-speed
- Ignition
- Kokusan CDI digital magnetic flywheel
- Fuel System
- Injection
- Bore X Stroke
- 79.0 x 60.0 mm (3.1 x 2.4 inches)
- Displacement
- 294.10 ccm (17.95 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, two-stroke
- Lubrication System
- Mix 0.9% 100% synthetic oil
- Transmission Type Final Drive
- Chain
- Dry Weight
- 64.5 kg (142.2 pounds)
- Seat Height
- 655 mm (25.8 inches) If adjustable, lowest setting.
- Fuel Capacity
- 2.60 litres (0.69 gallons)
- Ground Clearance
- 340 mm (13.4 inches)
- Rear Tyre
- 4.00-18
- Frame Type
- Tubular
- profile
- R
- -
- Mo
- steel with pipe of cast aluminum and forged aluminum lower
- Front Tyre
- 2.75-21
- Rear Brakes
- Single disc. Two-piston calipers.
- Front Brakes
- Single disc. Four-piston calipers.
- Rear Suspension
- Variable
- progressive system with shock absorber. Öhlins
- X
- adjustable compression and rebound.
- Front Suspension
- Tech Suspension 39 mm fork, adjustable in compression and rebound.
- Rear Brakes Diameter
- 150 mm (5.9 inches)
- Front Brakes Diameter
- 185 mm (7.3 inches)
Available colors
Black/green
