Back to Bike FinderYears: 2020
2020Sportbike

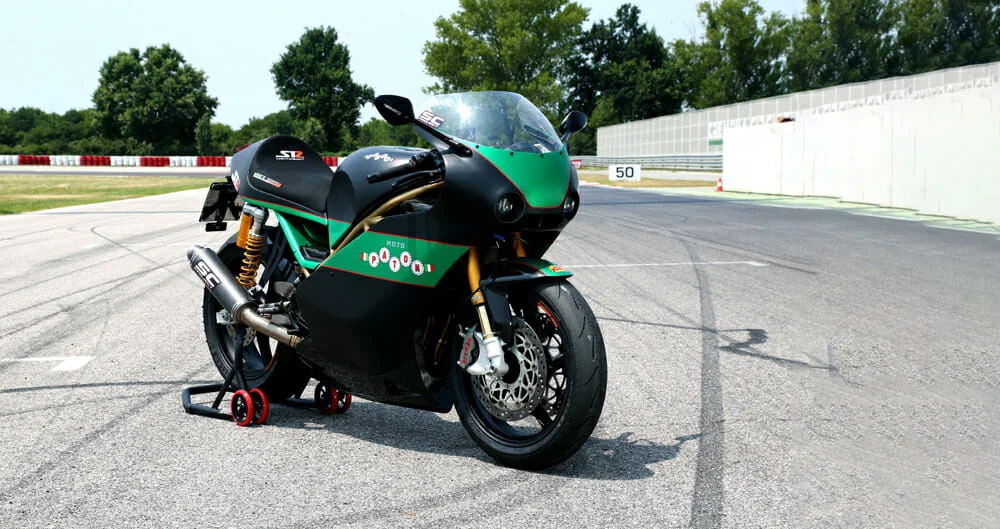

Paton S1-R Lightweight Race Edition
Key specifications
Engine
649 cc
Fuel type
petrol
Fuel capacity
4.2 L
Seat height
32 mm
Front brakes
Double disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Paton
- Model
- S1-R Lightweight Race Edition
- Category
- Sport
- Starter
- Electric
- Color Options
- Green
- Clutch
- Wet multi-disc clutch
- Fuel System
- Injection. Keihin, 38mmx2
- Bore X Stroke
- 83.0 x 60.0 mm (3.3 x 2.4 inches)
- Compression
- 10.8:1
- Displacement
- 649.00 ccm (39.60 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Twin, four-stroke
- Lubrication System
- Dry sump
- Transmission Type Final Drive
- Chain
- Seat Height
- 810 mm (31.9 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.00 litres (4.23 gallons)
- Overall Width
- 680 mm (26.8 inches)
- Overall Height
- 1,100 mm (43.3 inches)
- Overall Length
- 1,980 mm (78.0 inches)
- Rear Tyre
- 180/55-17
- Front Tyre
- 120/70-17
- Rear Brakes
- Single disc
- Front Brakes
- Double disc
- Rear Suspension
- Ohlins
- Front Suspension
- 43mm upside down forks.
- Rear Wheel Travel
- 130 mm (5.1 inches)
- Front Wheel Travel
- 120 mm (4.7 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 295 mm (11.6 inches)
Available colors
Green
