2021Sportbike

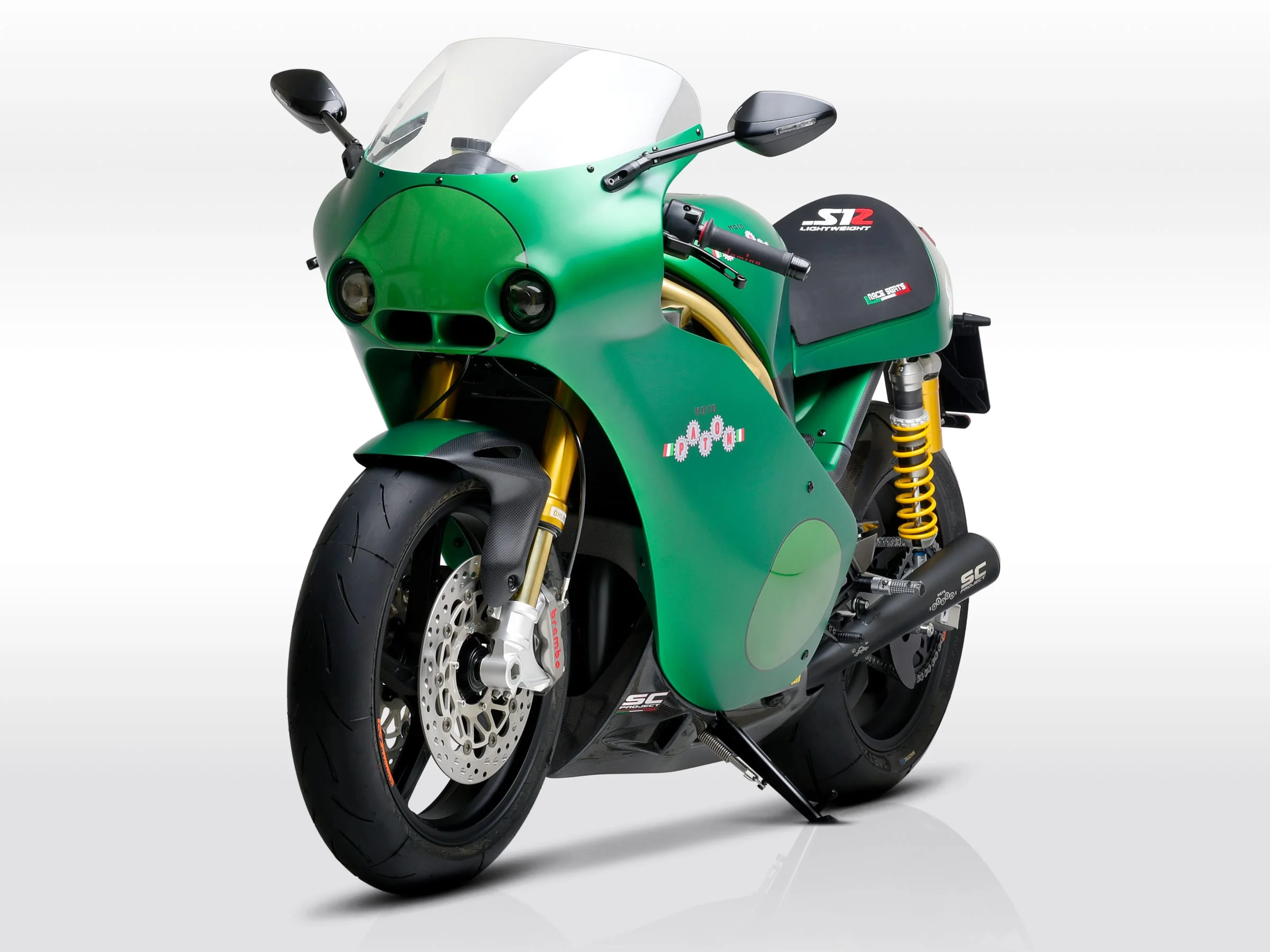

Paton S1-R
Key specifications
Engine
649 cc
Power
71 HP
Torque
64 Nm
Fuel type
petrol
Fuel capacity
4.2 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Paton
- Model
- S1-R
- Category
- Sport
- Starter
- Electric
- Comments
- Italian brand.
- Color Options
- Green
- Power
- 71.1 HP (51.9 kW)) @ 8500 RPM
- Clutch
- Wet multi-disc
- Torque
- 64.0 Nm (6.5 kgf-m or 47.2 ft.lbs) @ 7000 RPM
- Gearbox
- 6-speed
- Top Speed
- 220.0 km/h (136.7 mph)
- Engine Type
- Two cylinder boxer, four-stroke
- Fuel System
- Carburettor. Keihin, 38mm
- Bore X Stroke
- 83.0 x 60.0 mm (3.3 x 2.4 inches)
- Compression
- 10.8:1
- Displacement
- 649.0 ccm (39.60 cubic inches)
- Cooling System
- Liquid
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain (final drive)
- Seat Height
- 810 mm (31.9 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.00 litres (4.23 US gallons)
- Overall Width
- 680 mm (26.8 inches)
- Overall Height
- 1100 mm (43.3 inches)
- Overall Length
- 1980 mm (78.0 inches)
- Weight Incl Oil Gas Etc
- 165.0 kg (363.8 pounds)
- Rake
- 24.5°
- Trail
- 105 mm (4.1 inches)
- Wheels
- Metzeler RaceTec RR tires.
- Rear Tyre
- 180/55-ZR17
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single disc
- Front Brakes
- Double disc
- Rear Suspension
- Dual shocks, Ohlins
- Front Suspension
- Ohlins FGRT204 upside down forks.
- Rear Wheel Travel
- 130 mm (5.1 inches)
- Front Wheel Travel
- 130 mm (5.1 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 300 mm (11.8 inches)
Available colors
Green
