Back to Bike FinderYears: 2006
2006Scooter

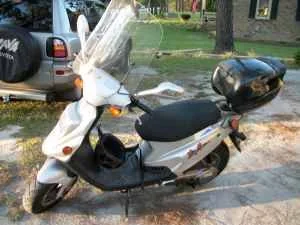

PGO Hot Big Max 100
Key specifications
Engine
106 cc
Power
10 HP
Torque
1 Nm
Weight
88 kg
Fuel type
petrol
Transmission
Automatic
Front brakes
Single disc. 2-piston calipers
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- PGO
- Model
- Hot Big Max 100
- Category
- Scooter
- Starter
- Electric & kick
- Power
- 10.45 HP (7.6 kW)) @ 7000 RPM
- Clutch
- Dry plate, Centrifugal type.
- Torque
- 0.86 Nm (0.1 kgf-m or 0.6 ft.lbs) @ 6750 RPM
- Gearbox
- Automatic
- Fuel System
- Carburettor
- Bore X Stroke
- 52.0 x 50.0 mm (2.0 x 2.0 inches)
- Compression
- 6.6:1
- Displacement
- 106.20 ccm (6.48 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, two-stroke
- Lubrication System
- Auto Oil Mixture
- Transmission Type Final Drive
- Belt
- Dry Weight
- 88.0 kg (194.0 pounds)
- Overall Width
- 670 mm (26.4 inches)
- Overall Height
- 1,110 mm (43.7 inches)
- Overall Length
- 1,710 mm (67.3 inches)
- Power Weight Ratio
- 0.1188 HP/kg
- Rear Tyre
- 130/90-10
- Front Tyre
- 120/90-10
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc. 2-piston calipers
- Rear Suspension
- Trailing
- Front Suspension
- Telescopic
