Back to Bike FinderYears: 2005
2005Scooter

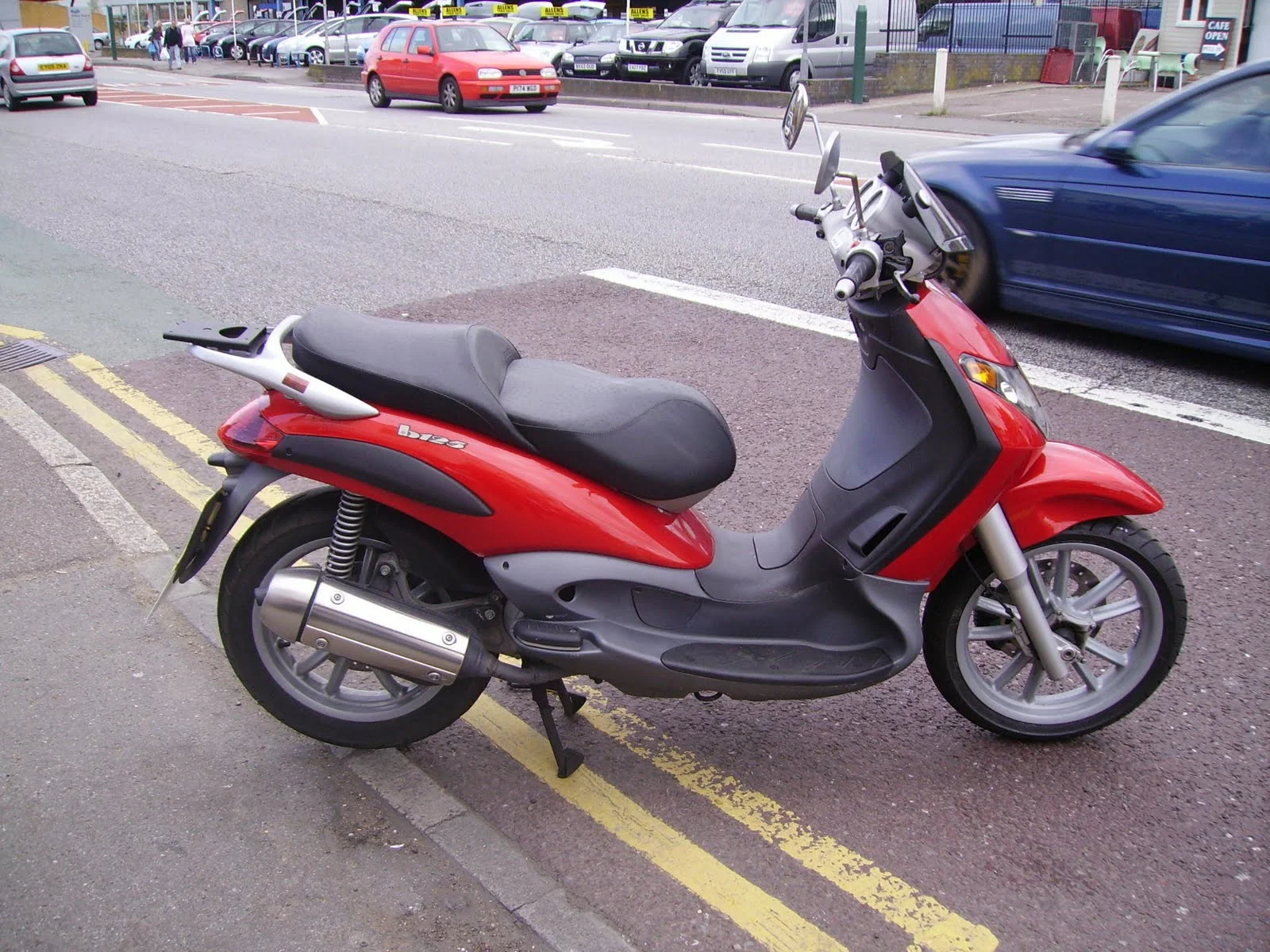

Piaggio B 125
Key specifications
Engine
124 cc
Power
15 HP
Torque
12 Nm
Weight
149 kg
Fuel type
petrol
Fuel capacity
2.6 L
Transmission
Automatic
Seat height
31 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Piaggio
- Model
- B 125
- Category
- Scooter
- Starter
- Electric & kick
- Power
- 15.00 HP (10.9 kW)) @ 9500 RPM
- Clutch
- Automatic dry centrifuge type
- Torque
- 12.00 Nm (1.2 kgf-m or 8.9 ft.lbs) @ 8000 RPM
- Gearbox
- Automatic
- Ignition
- Electronic CDI, variable spark advance
- Top Speed
- 104.6 km/h (65.0 mph)
- Fuel System
- Carburettor. Walbro WVF 7
- Bore X Stroke
- 57.0 x 48.6 mm (2.2 x 1.9 inches)
- Compression
- 12.3:1
- Displacement
- 124.00 ccm (7.57 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Wet sump
- Valves Per Cylinder
- 4
- Dry Weight
- 149.0 kg (328.5 pounds)
- Seat Height
- 780 mm (30.7 inches) If adjustable, lowest setting.
- Fuel Capacity
- 10.00 litres (2.64 gallons)
- Overall Width
- 700 mm (27.6 inches)
- Overall Length
- 2,110 mm (83.1 inches)
- Power Weight Ratio
- 0.1007 HP/kg
- Rear Tyre
- 140/70-16
- Frame Type
- Double cradle in high strength steel tubes
- Front Tyre
- 110/70-16
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Twin dual effect hydraulic dampers, 4 position spring pre-load adjustment
- Front Suspension
- Telescopic hydraulic fork, Ø 35 mm stanctions
- Rear Brakes Diameter
- 260 mm (10.2 inches)
- Front Brakes Diameter
- 260 mm (10.2 inches)
