Back to Bike FinderYears: 2007 · 2006 · 2005
2007Scooter

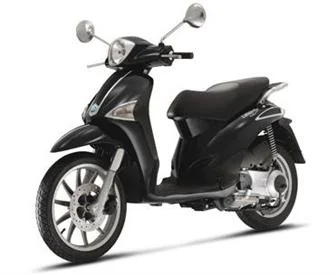

Piaggio Liberty 125 4 Stroke
Key specifications
Engine
124 cc
Power
10 HP
Torque
10 Nm
Weight
99 kg
Fuel type
petrol
Fuel capacity
1.6 L
Transmission
Automatic
Seat height
31 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Piaggio
- Model
- Liberty 125 4 Stroke
- Category
- Scooter
- Starter
- Electric
- Power
- 10.00 HP (7.3 kW)) @ 8000 RPM
- Clutch
- Dry automatic centrifugal type
- Torque
- 10.20 Nm (1.0 kgf-m or 7.5 ft.lbs) @ 6500 RPM
- Gearbox
- Automatic
- Ignition
- Inductive
- Fuel System
- Carburettor
- Bore X Stroke
- 57.0 x 48.6 mm (2.2 x 1.9 inches)
- Compression
- 10.6:1
- Displacement
- 124.00 ccm (7.57 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Fuel Consumption
- 28.00 litres/100 km (3.6 km/l or 8.40 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Lubrication System
- Wet sump
- Valves Per Cylinder
- 2
- Dry Weight
- 99.0 kg (218.3 pounds)
- Seat Height
- 775 mm (30.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 6.00 litres (1.59 gallons)
- Overall Width
- 675 mm (26.6 inches)
- Overall Length
- 1,935 mm (76.2 inches)
- Power Weight Ratio
- 0.1010 HP/kg
- Rear Tyre
- 110/80-14
- Frame Type
- Steel tubes
- Front Tyre
- 90/80-16
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- Hydraulic monoshock, 4 position spring preload, 85.5 mm travel
- Front Suspension
- Ttelehydraulic fork, 76 mm travel
- Rear Brakes Diameter
- 140 mm (5.5 inches)
- Front Brakes Diameter
- 220 mm (8.7 inches)
