2013Scooter

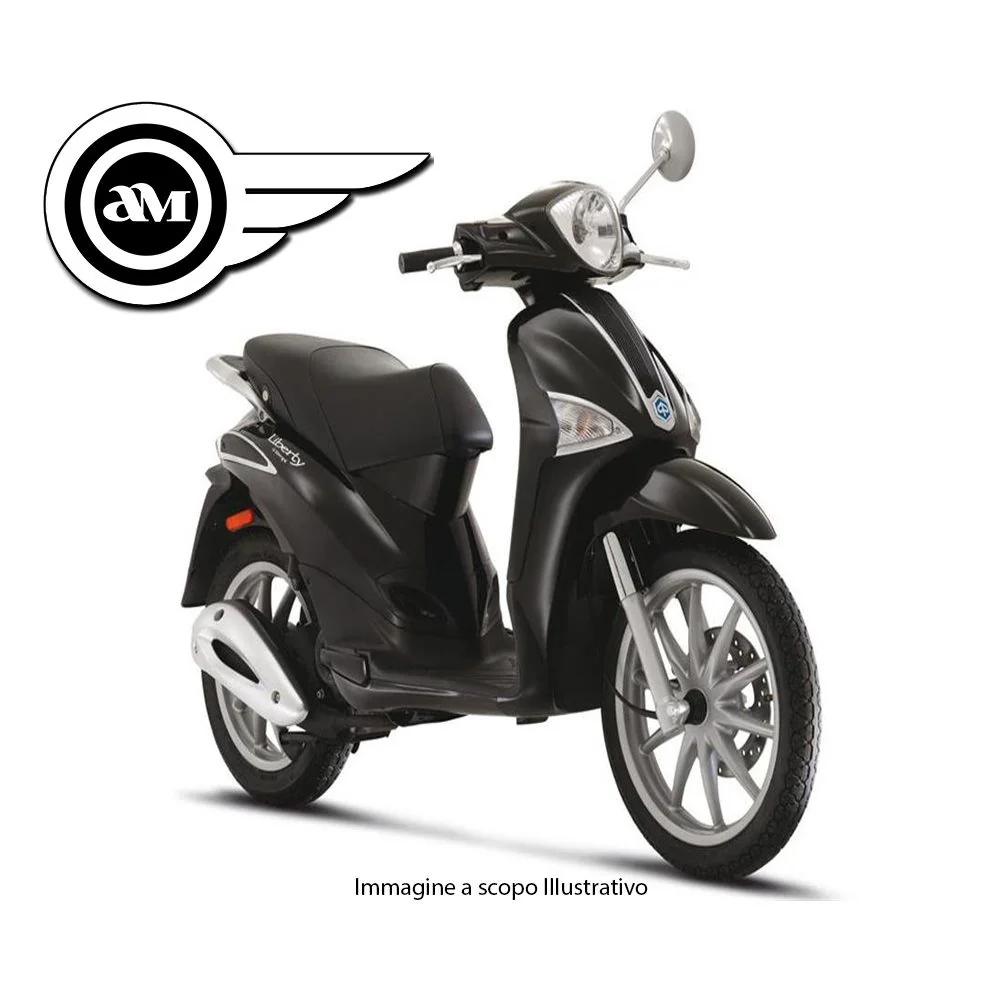

Piaggio Liberty 50
Key specifications
Engine
49 cc
Power
5 HP
Torque
5 Nm
Fuel type
petrol
Fuel capacity
1.6 L
Transmission
Automatic
Seat height
31 mm
Front brakes
Single disc. Calliper with opposed pistons
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Piaggio
- Model
- Liberty 50
- Category
- Scooter
- Starter
- Electric & kick
- Color Options
- White, gray
- Power
- 4.60 HP (3.4 kW)) @ 7250 RPM
- Clutch
- Dry automatic centrifugal type
- Torque
- 4.70 Nm (0.5 kgf-m or 3.5 ft.lbs) @ 6750 RPM
- Gearbox
- Automatic
- Driveline
- CVT
- Engine Type
- HI-PER 2
- Fuel System
- Carburettor
- Bore X Stroke
- 40.0 x 39.3 mm (1.6 x 1.5 inches)
- Compression
- 10.3:1
- Displacement
- 49.40 ccm (3.01 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, two-stroke
- Emission Details
- Euro 2
- Lubrication System
- Wet sump
- Transmission Type Final Drive
- Belt
- Seat Height
- 775 mm (30.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 6.00 litres (1.59 gallons)
- Overall Width
- 670 mm (26.4 inches)
- Overall Length
- 1,900 mm (74.8 inches)
- Weight Incl Oil Gas Etc
- 95.0 kg (209.4 pounds)
- Rear Tyre
- 110/80-14
- Frame Type
- Single cradle
- Front Tyre
- 90/80-16
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single
- disc.
- Calliper
- with opposed pistons
- Rear Suspension
- Hydraulic monoshock,
- Front Suspension
- Telescopic fork
- Rear Wheel Travel
- 83 mm (3.3 inches)
- Front Wheel Travel
- 76 mm (3.0 inches)
- Rear Brakes Diameter
- 140 mm (5.5 inches)
- Front Brakes Diameter
- 240 mm (9.4 inches)
Available colors
Whitegray
