Back to Bike FinderYears: 2012
2012Super Moto

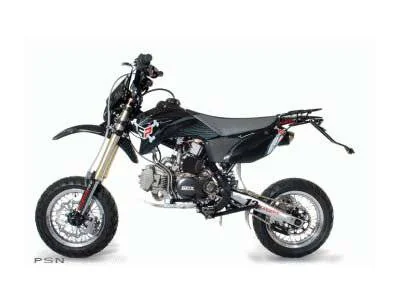

Pitster Pro LXM 155R Twelve Motard
$2,699
Key specifications
Engine
155 cc
Fuel type
petrol
Fuel capacity
1.0 L
Transmission
4-speed
Seat height
31 mm
Front brakes
Single disc. W-Style Rotor w/ Floating Caliper
Rear brakes
Expanding brake (drum brake). W-Style Rotor w/ Floating Caliper
Technical details
Source specification data
- Make
- Pitster Pro
- Model
- LXM 155R Twelve Motard
- Price
- S
- $ 2699.
- Prices
- depend on country, taxes, accessories, etc.
- Category
- Super motard
- Starter
- Kick
- Color Options
- White
- Clutch
- Five plate wet clutch
- Gearbox
- 4-speed
- Ignition
- Outer rotor w/ lighting coil
- Fuel System
- Carburettor
- Bore X Stroke
- 60.0 x 55.0 mm (2.4 x 2.2 inches)
- Compression
- 10.2:1
- Displacement
- 155.00 ccm (9.46 cubic inches)
- Cooling System
- Air
- Engine Details
- V2, four-stroke
- Exhaust System
- FMF Factory 4.1
- Transmission Type Final Drive
- Chain
- Seat Height
- 775 mm (30.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 3.78 litres (1.00 gallons)
- Overall Width
- 787 mm (31.0 inches)
- Overall Length
- 1,600 mm (63.0 inches)
- Ground Clearance
- 254 mm (10.0 inches)
- Rear Tyre
- 1.85-12
- Frame Type
- Central Double Cradle Chromo W/ Tri Point Mounting
- , removable footpeg
- Design
- ,
- Progressive Link
- .
- Subframe
- :
- Chromo Removable W/ Integrated Grab Handle
- .
- Front Tyre
- 110/70-12
- Rear Brakes
- Expanding
- brake (drum brake).
- W
- -
- Style Rotor
- w/
- Front Brakes
- Single
- disc.
- W
- -
- Style Rotor
- w/
- Rear Suspension
- GPX DNM Piggy Back reservoir w/ adj. compression and rebound
- Front Suspension
- GPX Moto 35mm inverted forks w/ adj. compression and rebound on each leg
- Rear Wheel Travel
- 249 mm (9.8 inches)
- Front Wheel Travel
- 203 mm (8.0 inches)
- Rear Brakes Diameter
- 190 mm (7.5 inches)
- Front Brakes Diameter
- 220 mm (8.7 inches)
Available colors
White
