Back to Bike FinderYears: 2016
2016Off-road

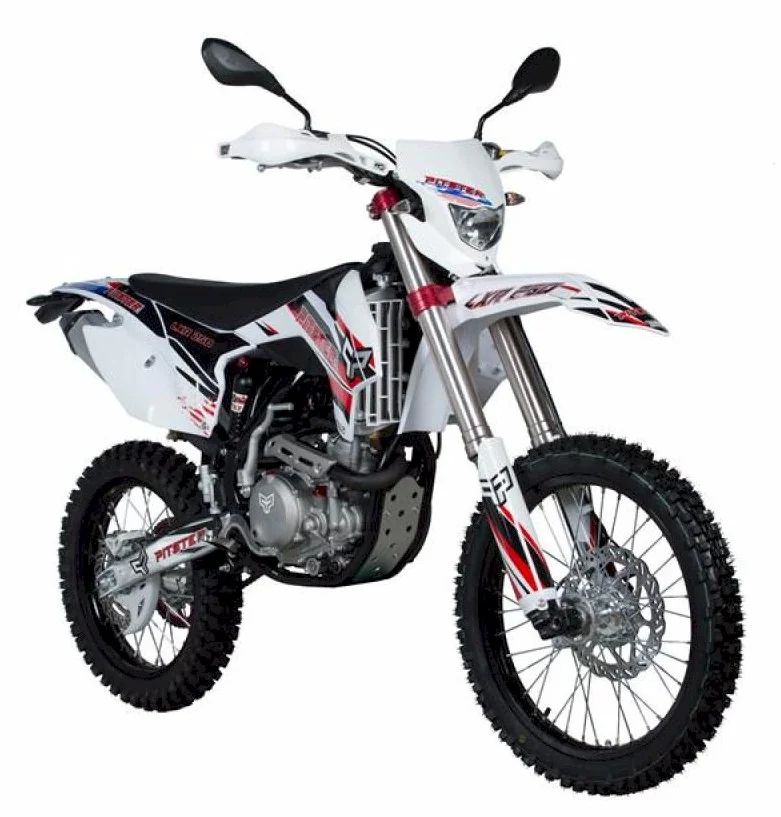

Pitster Pro LXR 250F
Key specifications
Engine
250 cc
Weight
105 kg
Fuel type
petrol
Fuel capacity
2.3 L
Transmission
5-speed
Seat height
37 mm
Front brakes
Single disc. Hydraulic.
Rear brakes
Single disc. Hydraulic.
Technical details
Source specification data
- Make
- Pitster Pro
- Model
- LXR 250F
- Category
- Cross-motocross
- Starter
- Electric & kick
- Color Options
- White/blue
- Gearbox
- 5-speed
- Ignition
- CDI
- Fuel System
- Carburettor
- Compression
- 11.6:1
- Displacement
- 250.00 ccm (15.26 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Transmission Type Final Drive
- Chain
- Dry Weight
- 105.2 kg (232.0 pounds)
- Seat Height
- 945 mm (37.2 inches) If adjustable, lowest setting.
- Fuel Capacity
- 8.71 litres (2.30 gallons)
- Overall Width
- 833 mm (32.8 inches)
- Overall Height
- 1,270 mm (50.0 inches)
- Overall Length
- 2,149 mm (84.6 inches)
- Ground Clearance
- 335 mm (13.2 inches)
- Rear Tyre
- 3.00-18
- Frame Type
- Light weight central backbone chromo
- Front Tyre
- 80/90-21
- Rear Brakes
- Single disc. Hydraulic.
- Front Brakes
- Single disc. Hydraulic.
- Rear Suspension
- Pitster Progressive Link Swingarm
- w/ high and low speed
- Comp
- . and
- Rebound Adjustment
- ,
- Front Suspension
- X Moto
- forks w/
- Separate Comp
- and
- Rear Brakes Diameter
- 240 mm (9.4 inches)
- Front Brakes Diameter
- 260 mm (10.2 inches)
Available colors
White/blue
