2006Off-road

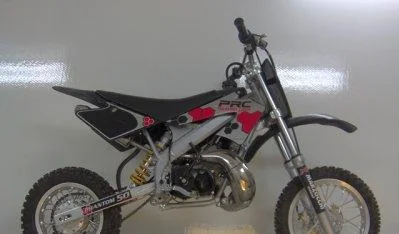

PRC (Pro Racing Cycles) Phantom LX-R 50
$2,699
Key specifications
Engine
49 cc
Power
12 HP
Torque
6 Nm
Weight
42 kg
Fuel type
petrol
Transmission
Automatic
Seat height
25 mm
Front brakes
Single disc. single pistoon claiper
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- PRC (Pro Racing Cycles)
- Model
- Phantom LX-R 50
- Price
- S
- $ 2699.
- Prices
- depend on country, taxes, accessories, etc.
- Category
- Cross-motocross
- Starter
- Kick
- Power
- 12.10 HP (8.8 kW)) @ 13000 RPM
- Clutch
- Three Show Race Clutch with weld drum
- Max Rpm
- 14500
- Torque
- 6.40 Nm (0.7 kgf-m or 4.7 ft.lbs) @ 10800 RPM
- Gearbox
- Automatic
- Ignition
- CDI
- Top Speed
- 72.4 km/h (45.0 mph)
- Fuel System
- Carburettor. PRC 19MM
- Bore X Stroke
- 40.0 x 40.0 mm (1.6 x 1.6 inches)
- Compression
- 13.0:1
- Displacement
- 49.00 ccm (2.99 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, two-stroke
- Exhaust System
- X
- -
- R Race Ripe
- with aluminum silencer
- Lubrication System
- None
- Transmission Type Final Drive
- Chain
- Dry Weight
- 42.0 kg (92.6 pounds)
- Seat Height
- 635 mm (25.0 inches) If adjustable, lowest setting.
- Overall Width
- 737 mm (29.0 inches)
- Overall Height
- 889 mm (35.0 inches)
- Overall Length
- 1,346 mm (53.0 inches)
- Ground Clearance
- 279 mm (11.0 inches)
- Power Weight Ratio
- 0.2881 HP/kg
- Rear Percentage Of Weight
- 47
- Front Percentage Of Weight
- 53
- Rake
- 26.0°
- Trail
- 100 mm (3.9 inches)
- Rear Tyre
- 2.75-10
- Frame Type
- Steel perimeter
- Front Tyre
- 100/90-12
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc. single pistoon claiper
- Rear Suspension
- Ohlins 36D Mono shock
- Front Suspension
- Marzocchi 32mm mini Cross
- Rear Wheel Travel
- 260 mm (10.2 inches)
- Front Wheel Travel
- 195 mm (7.7 inches)
- Rear Brakes Diameter
- 80 mm (3.1 inches)
- Front Brakes Diameter
- 160 mm (6.3 inches)
