Back to Bike FinderYears: 2022
2022Classic

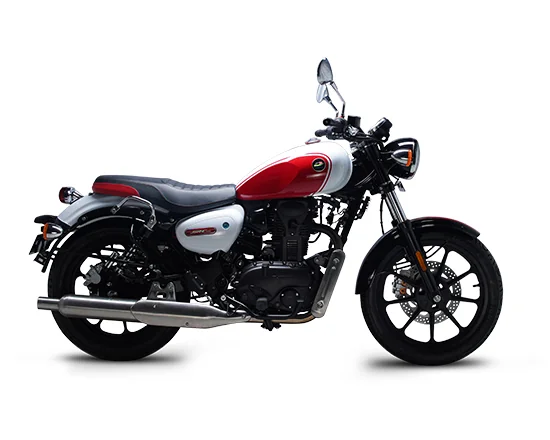

QJmotor SRC500
Key specifications
Engine
530 cc
Power
26 HP
Torque
40 Nm
Fuel type
petrol
Fuel capacity
4.1 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Single disc. Hydraulic, twin piston
Rear brakes
Single disc. Hydraulic.
Technical details
Source specification data
- Make
- QJmotor
- Model
- SRC500
- Category
- Classic
- Starter
- Electric
- Comments
- The Chinese
- firm
- Motor
- is owned by
- Qianjiang
- that has bought
- Benelli
- ,
- Keeway
- and
- R
- .
- Instruments
- Analogue
- Color Options
- Black, red, green, yellow
- Power
- 25.5 HP (18.6 kW)) @ 5500 RPM
- Clutch
- Manual, Multiplate Wet
- Torque
- 40.0 Nm (4.1 kgf-m or 29.5 ft.lbs) @ 4000 RPM
- Gearbox
- 6-speed
- Ignition
- TCI
- Engine Type
- Single cylinder, four-stroke
- Fuel System
- Injection
- Bore X Stroke
- 86.0 x 90.0 mm (3.4 x 3.5 inches)
- Compression
- 8.5:1
- Displacement
- 530.0 ccm (32.34 cubic inches)
- Cooling System
- Liquid
- Lubrication System
- Forced and Splash
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain (final drive)
- Seat Height
- 800 mm (31.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 15.50 litres (4.10 US gallons)
- Overall Width
- 820 mm (32.3 inches)
- Overall Height
- 1120 mm (44.1 inches)
- Overall Length
- 2170 mm (85.4 inches)
- Ground Clearance
- 120 mm (4.7 inches)
- Weight Incl Oil Gas Etc
- 205.0 kg (451.9 pounds)
- Rear Tyre
- 130/80-18
- Frame Type
- Cradle, steel
- Front Tyre
- 100/90-19
- Rear Brakes
- Single disc. Hydraulic.
- Front Brakes
- Single disc. Hydraulic, twin piston
- Rear Suspension
- UNit swing
- Front Suspension
- Telescopic
- Rear Wheel Travel
- 60 mm (2.4 inches)
- Front Wheel Travel
- 120 mm (4.7 inches)
- Rear Brakes Diameter
- 240 mm (9.4 inches)
- Front Brakes Diameter
- 300 mm (11.8 inches)
Available colors
Blackredgreenyellow
