Back to Bike FinderYears: 2022
2022Naked

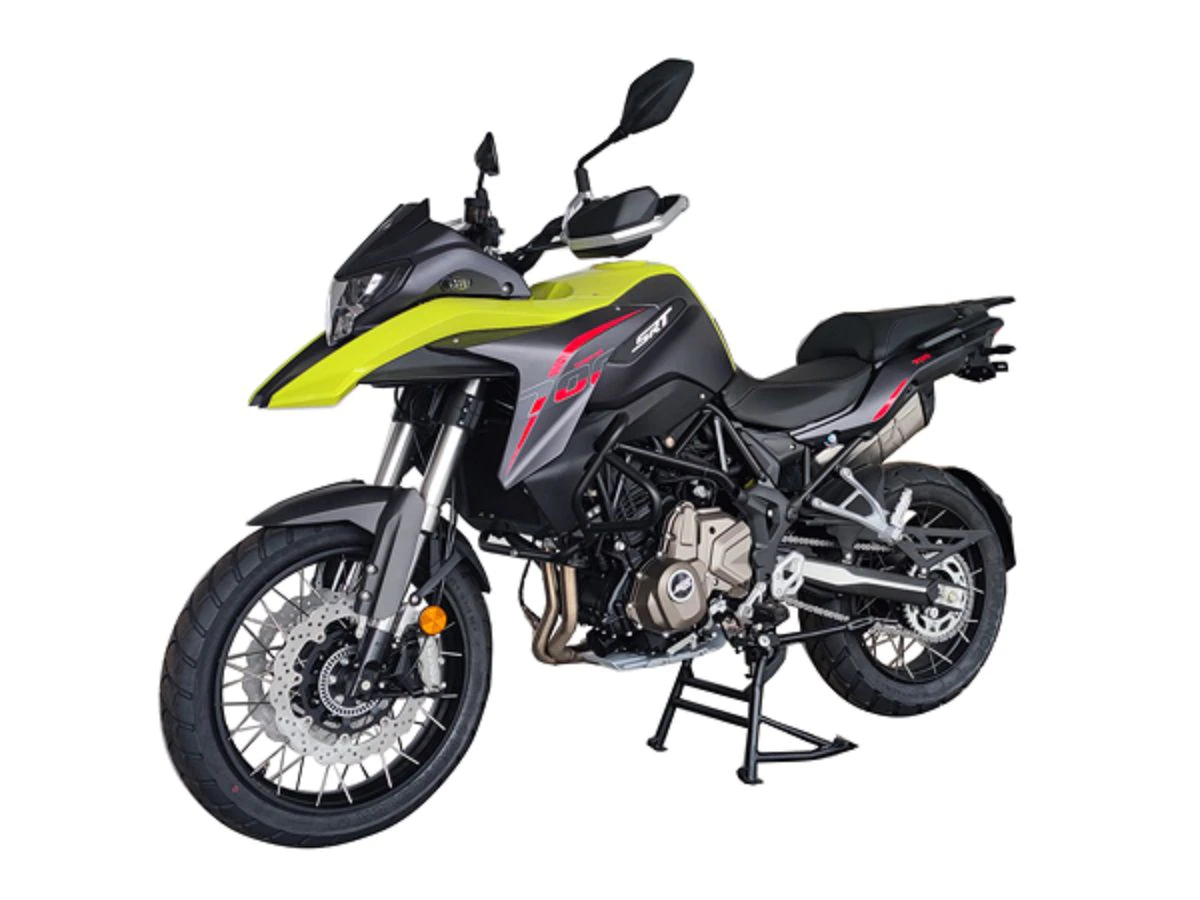

QJmotor SRT500
Key specifications
Engine
502 cc
Power
48 HP
Torque
47 Nm
Fuel type
petrol
Fuel capacity
5.2 L
Transmission
6-speed
Seat height
33 mm
Front brakes
Single disc. Hydraulic.
Rear brakes
Single disc. Hydraulic.
Technical details
Source specification data
- Make
- QJmotor
- Model
- SRT500
- Category
- Naked bike
- Light
- LED headlight
- Starter
- Electric
- Comments
- The Chinese
- firm
- Motor
- is owned by
- Qianjiang
- that has bought
- Benelli
- ,
- Keeway
- and
- R
- .
- Instruments
- 5” TFT full color meter
- Color Options
- Yellow, red, white, blue
- Power
- 48.3 HP (35.2 kW)) @ 8500 RPM
- Clutch
- Multiplate wet
- Torque
- 47.0 Nm (4.8 kgf-m or 34.7 ft.lbs) @ 5000 RPM
- Gearbox
- 6-speed
- Ignition
- TCI
- Engine Type
- Twin, four-stroke
- Fuel System
- Injection
- Bore X Stroke
- 69.0 x 66.8 mm (2.7 x 2.6 inches)
- Compression
- 11.5:1
- Displacement
- 502.0 ccm (30.63 cubic inches)
- Cooling System
- Liquid
- Lubrication System
- Forced/Splash
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain (final drive)
- Seat Height
- 825 mm (32.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 19.50 litres (5.15 US gallons)
- Overall Width
- 925 mm (36.4 inches)
- Overall Height
- 1398 mm (55.0 inches)
- Overall Length
- 2270 mm (89.4 inches)
- Ground Clearance
- 220 mm (8.7 inches)
- Weight Incl Oil Gas Etc
- 225.0 kg (496.0 pounds)
- Rear Tyre
- 160/60-ZR17
- Frame Type
- Trellis, steel
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single disc. Hydraulic.
- Front Brakes
- Single disc. Hydraulic.
- Rear Suspension
- Unit swing, adjustable mono shock
- Front Suspension
- KYB upside-down fork
- Rear Wheel Travel
- 50 mm (2.0 inches)
- Front Wheel Travel
- 135 mm (5.3 inches)
- Rear Brakes Diameter
- 260 mm (10.2 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Yellowredwhiteblue
