2007Scooter

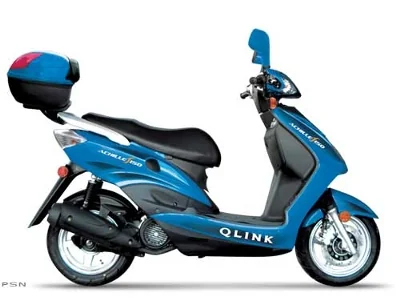

Qlink Achilles 150
Key specifications
Engine
147 cc
Power
9 HP
Torque
10 Nm
Weight
111 kg
Fuel type
petrol
Fuel capacity
1.7 L
Seat height
32 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Qlink
- Model
- Achilles 150
- Category
- Scooter
- Starter
- Electric & kick
- Color Options
- Red/black
- Power
- 9.40 HP (6.9 kW))
- Torque
- 9.60 Nm (1.0 kgf-m or 7.1 ft.lbs) @ 6000 RPM
- Ignition
- CDI
- Bore X Stroke
- 58.0 x 57.8 mm (2.3 x 2.3 inches)
- Compression
- 9.2:1
- Displacement
- 147.00 ccm (8.97 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Dry Weight
- 110.9 kg (244.5 pounds)
- Seat Height
- 820 mm (32.3 inches) If adjustable, lowest setting.
- Fuel Capacity
- 6.51 litres (1.72 gallons)
- Ground Clearance
- 130 mm (5.1 inches)
- Power Weight Ratio
- 0.0848 HP/kg
- Rear Tyre
- 120/70-12
- Front Tyre
- 110/70-12
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- Damping Shock
- Front Suspension
- Telescopic fork
Available colors
Red/black
